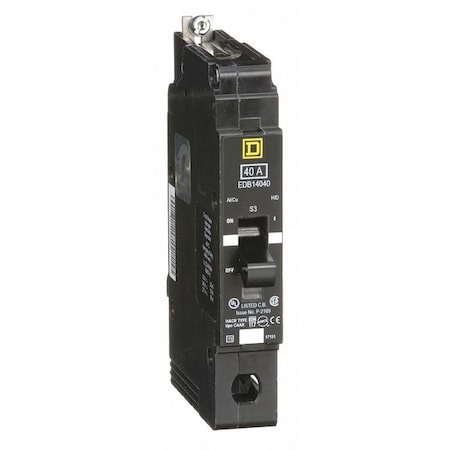

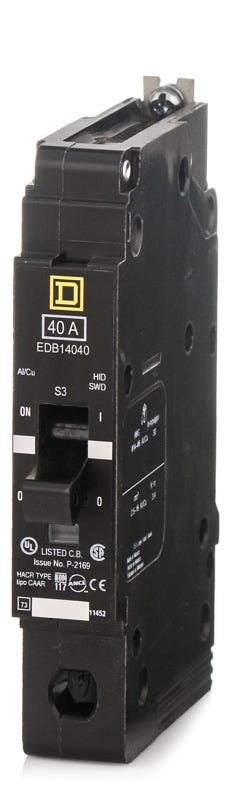

Square D / Schneider Electric EDB14040

B00A2V0ADY

EDB14040 by SQUARE D Schneider Electric

EDB14040 by SQUARE D Schneider Electriczoom

Attributes

Key Value
AC Voltage Rating277V AC
Amperage40A
Amperage Rating40
Amps40 A
ApplicationNF panelboard;HACR rate.
ApprovalUL Listed, CSA Certifie.
AWG RangeAWG 12...AWG 2/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberEDB14040
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On, Bolt-On
Circuit Breaker TypeStandard
Compatible Panelboard/L.NF
ConnectionLugs aluminium;AWG 12...
Country of OriginMX - Mexico, Mexico
Current Rating40 A, 40A
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
ECCNEAR99
For Use WithSquare D NF Panelboards
FrameE-Frame
Frame Size125A/EDB
Frame TypeE-Frame
Gtin785901878957
Height5.66 in, 5.66 in., 5.66
Height UOMInch
International ShippingNo
Interrupt Rating18 kA at 277/240/120V A.
ItemMiniature Circuit Break.
Item TypeMiniature circuit-break.
Length5.66 in, 4.05
Length (Straight Wirewa.5.66 in
Length UOMInch
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating18 kA at 120/240V AC, 1.
Max. Operating Temp.104 Degrees F
Max. Wire Size2 AWG
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting TypeBolt-On
MpnEDB14040
No. of Spaces1
Number of Poles1
Operating Temperature40 A Degrees C
Phase1, Single
Poles1
Rated Voltage277V AC
SeriesEDB, EDB Series
SKUZO-G0947037
Special FeaturesTrip indicator
StandardUL LISTED - CSA CERTIFI.
StandardscULus, IEC
Sub BrandEDB
SubCategoryElectrical
Terminal ConnectionLug
Torque3.9-3.9 N.m 2.5-6 mm? (.
Trip Range1800 AMPS
Trip TypeThermal-magnetic
UNSPSC39121603
UPC785901878957
Upc785901878957
UPC Code785901878957
Voltage277VAC, 277
Voltage Rating277 V AC
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98, 0.98 mm
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00A2V0ADY36.431In StockSquare D36.43 @ 1
simplybreakers.comEDB1404072.991In StockSchneider Electric72.99 @ 1
thumbzoomsuperbreakers.comEDB1404088.2150Square D88.2 @ 1
thumbzoomRaptor SuppliesAG6QBL116.86363651In StockSQUARE D116.8636365 @ 1
standardelectricsupply.com2418073123.041In StockSquare D123.04 @ 1
Graybar96075955125.08161In StockSquare D (Schneider Electric)125.0816 @ 1
thumbzoomZoroG0947037128.9911Square D1.3128.99 @ 1
thumbzoomsimsupply.comZO-G0947037151.261In StockSquare D151.26 @ 1
us.rs-online.com70405625156.7511Square D156.75 @ 1
thumbzoomcrescentelectric.com28706156.841In StockSquare D by Schneider Electric156.84 @ 1
thumbzoomsustainablesupply.comC1195362160.481In StockSquare D1.3160.48 @ 1
steinerelectric.com34957165.371In StockSquare D?165.37 @ 1
AmazonTPB007IA3I1I171.421In Stock5Square D By Schneider Electric171.42 @ 1
Newark15B7690174.741In StockSQUARE D BY SCHNEIDER ELECTRIC174.74 @ 1
thumbzoommostelectric.comEDB14040175.681In StockSQUARE D/TELEMECANIQUE175.68 @ 1
thumbzoomNational Supply Network69660884217.211In StockSquare D217.21 @ 1
grainger.caSQDEDB14040273.527249161In StockSQUARE D1.1273.52724916 @ 1
