Square D EDB14040SA

B0078RRSN0

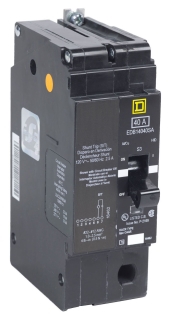

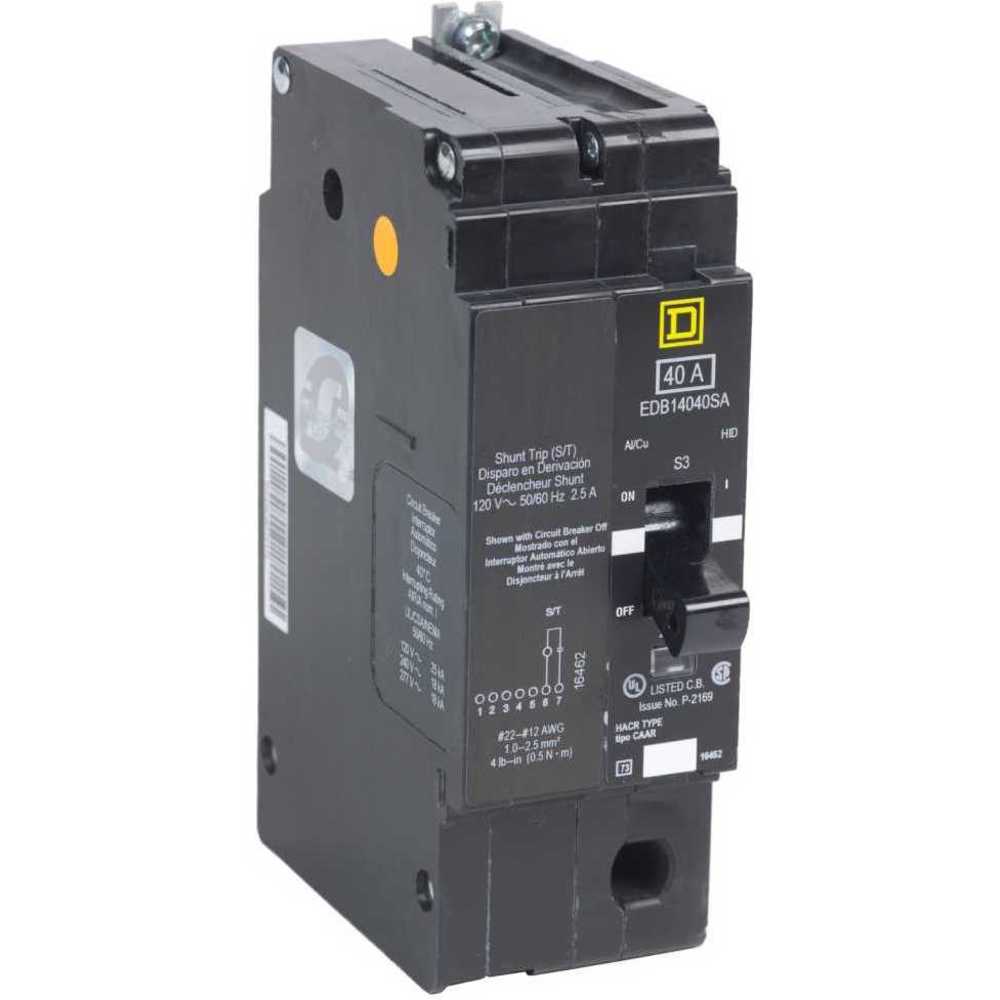

Square D - EDB14040SA - Miniature Circuit Breaker, Amps 40 A, Circuit Breaker Type Shunt Trip, Number of Poles 1

Square D - EDB14040SA - Miniature Circuit Breaker, Amps 40 A, Circuit Breaker Type Shunt Trip, Number of Poles 1zoom

Attributes

Key Value
[Ue] Rated Operational .277 V AC
AC Voltage Rating277V AC
Ambient Air Temperature.40 ?C
Amperage (Molded Case B.40 Amp
Amps40 A
Awg GaugeAWG 12...AWG 2/0 alumin.
AWG RangeAWG 12...AWG 2/0 alumin.
Breaking Capacity18 kA 277 V AC || 18 kA.
Breaking Capacity CodeD
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HID rated || HACR rated
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeShunt Trip
Compatible Panelboard/L.NF
ComponentMolded Case Circuit Bre.
Country of Origin00 - Unknown
Country of Origin (subj.Mexico
Current Rating40A
DC Voltage RatingNot Rated
Depth4.05 in., 4.05 in
Device CompositionShunt Trip
Device Short NameEDB
ECCNEAR99
Electrical Connectionlugs aluminium
Eu Rohs DirectiveCompliant
For Use WithSquare D NF Panelboards
Frame Size125A/EDB
Height5.66 in, 5.66 in.
Holding Current630 A
ItemMiniature Circuit Break.
Length5.66 in
Length (Straight Wirewa.5.66 in
Line Rated Current40 A
Local Signallingtrip indicator
ManufacturerSquare D, Schneider Ele.
Max. AIR Rating18kA at 120/240V AC
Max. Operating Temp.104 Degrees F
Max. Wire Size2 AWG
Maximum Voltage (Molded.277 VAC
Mercury FreeYes
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Module TypeE-Frame
MountingBolt On
Mounting Modebolt-on
Mounting Typebolt-on
Net Weight2 lb(US)
No. of Spaces2
Number Of Poles1
Number of Poles1
Number Of Spaces2
Number Of Spaces Requir.2
PhaseSingle
Poles (Molded Case Brea.Single Pole
Product CertificationscULus || IEC
Product DestinationNF panelboard
Product Or Component Ty.miniature circuit-break.
Product TypeMiniature Circuit Break.
Promotion RestrictionNot eligible for promot.
Protection Typeshort-circuit || overlo.
Range Of Product125 A Frame EDB-EGB-EJB
Rated Voltage277V AC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB
StandardscULus, IEC
Terminal ConnectionLug
Tightening Torque3.9-3.9 N.m 2.5-6 mm? (.
Torque3.9-3.9 N.m 2.5-6 mm? (.
Trip Unit Rating1800-1800 A
Trip Unit Technologythermal-magnetic
UNSPSC39121603
Warranty18 months
Width1.96 mm, 1.96 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comEDB14040SA795.01In Stock10SQUARE D795.0 @ 1
thumbzoomZoroG2314663795.01In Stock65Square D1.94795.0 @ 1
thumbzoommayerelectric.comSQDEDB14040SA875.71In StockSQUARE D2.0875.7 @ 1
Newark09P3394884.871In StockSQUARE D BY SCHNEIDER ELECTRIC884.87 @ 1
rspsupply.comSCHNEIDER EDB14040SA985.991In StockSchneider Electric985.99 @ 1
Graybar254239631098.3841In StockSquare D (Schneider Electric)1098.384 @ 1
Grainger2JWE21111.01In Stock18SQUARE D1111.0 @ 1
thumbzoomsustainablesupply.comC11808971207.591In StockSquare D1.941207.59 @ 1
thumbzoomRaptor SuppliesAF9HJM1681.7011381In StockSQUARE D1681.701138 @ 1
