Schneider Electric HDL26015

B007IAER4A

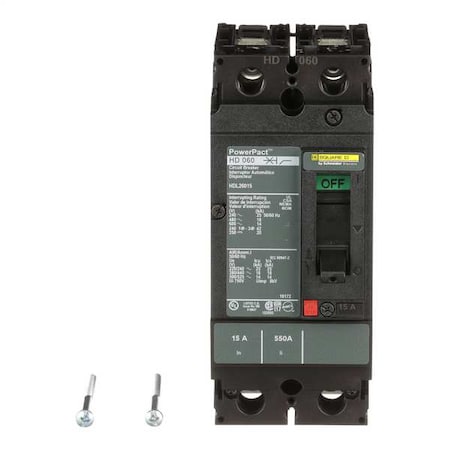

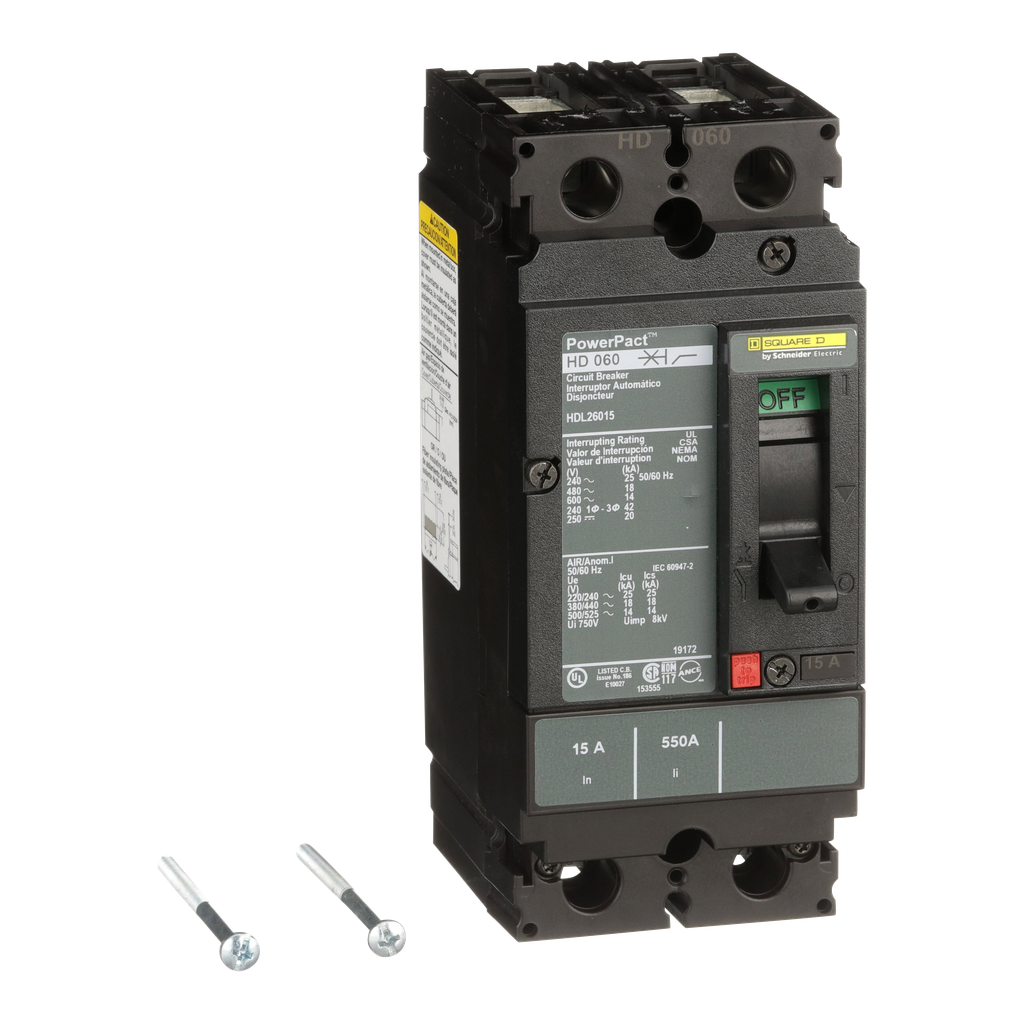

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDL26015 Molded CASE Circuit Breaker 600V 15A

SCHNEIDER ELECTRIC 600-VOLT 15-AMP HDL26015 Molded CASE Circuit Breaker 600V 15Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating15
Amps15 A
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDL26015
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConditionNew
ConnectionLine: Lug - Load: Lug
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginMX - Mexico, Mexico
Current Rating15 A, 15-15A
DC Voltage Rating250V DC
Depth86 mm, 4.36 in
Device Applicationdistribution
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26015 Circuit breake.
ECCNEAR99
Electrical Connectionlugs, line || lugs, load
Environmental DisclosureENVPEP2206027EN
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameH-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60HZ
GTIN785901458869
Height163 mm, 6.4 in, 6.42
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480V.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Line Rated Current15-15 A
Local Signallingswitched off (OFF) 1 tr.
Low Amp Trip Setting350 A
Made in USANo
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSquare D, Schneider Ele.
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Mercury FreeYes
Min. Wire Size14 AWG
MountingFree Standing
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
PhaseSingle
Phase ConnectionNot Applicable
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact Series, HD
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 350A - TRIP: 750A
Trip TimeAdjustable Trip
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
UPC785901458869
UPC Code785901458869
Utilisation Categorycategory A
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000, 5.00 lbs.
Width2.74 in, 4.09, 104 mm, .
Wire Size3/0-14 AWG
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar25094720424.30081In StockSquare D (Schneider Electric)424.3008 @ 1
thumbzoomblackhawksupply.comHDL26015643.281In StockSquare D643.28 @ 1
thumbzoomZoroG2214265646.161In StockSquare D646.16 @ 1
thumbzoomsustainablesupply.comC1167353667.131In StockSquare D3.02667.13 @ 1
thumbzoomindustrialrefrigerationparts.comHDL26015674.151In StockSquare D2.0674.15 @ 1
standardelectricsupply.com2120214713.641In StockSquare D713.64 @ 1
thumbzoommayerelectric.comSQDHDL26015746.611In StockSQUARE D4.84746.61 @ 1
thumbzoomgordonelectricsupply.comHDL26015765.01In Stock10SQUARE D765.0 @ 1
Grainger1MAJ5806.01In Stock16SQUARE D806.0 @ 1
thumbzoomRadwellHDL26015840.01In StockSCHNEIDER ELECTRIC SQUARE D840.0 @ 1
thumbzoomNewark20K0019876.21In StockSQUARE D BY SCHNEIDER ELECTRIC876.2 @ 1
us.rs-online.com70060554946.821In StockSquare D5.0946.82 @ 1
thumbzoomcrescentelectric.com1174951149.221In StockSquare D by Schneider Electric1149.22 @ 1
thumbzoomRaptor SuppliesAF6PQA1596.43615951In StockSQUARE D1596.4361595 @ 1
