CAI - SQUARE D HDL26020

B07J2WPLMB

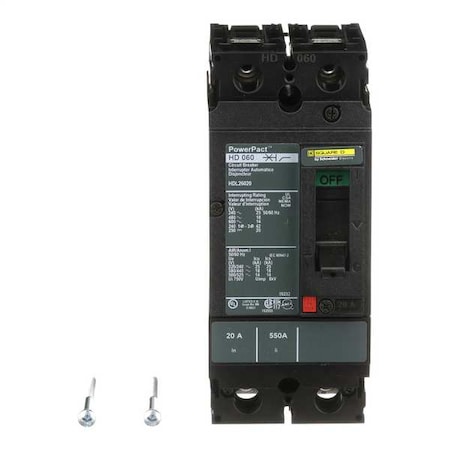

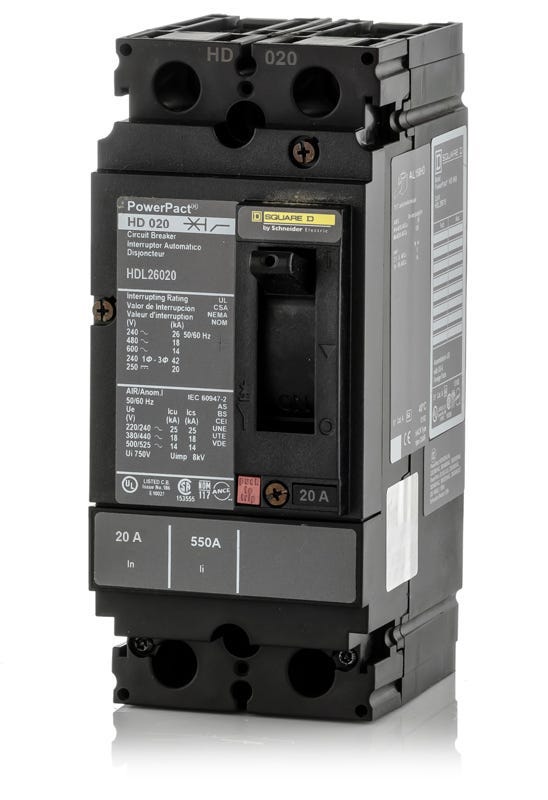

Square D Circuit Breaker, 20 Amps, Number of Poles: 2, 600VAC AC Voltage Rating

Square D Circuit Breaker, 20 Amps, Number of Poles: 2, 600VAC AC Voltage Ratingzoom

Attributes

Key Value
AC Voltage Rating600V AC
Actuator TypeToggle
Amperage20
Amperage Rating20, 20, 20 A
Amps20 A
ApplicationPROVIDES OVERLOAD AND S.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDL26020
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
ColorBlack
Color FamilyBlack
ConnectionLine: Lug - Load: Lug
Connection typeLine/Load Lug
Connection TypeFeed-Thru
Country of OriginMexico, 00 - Unknown
Current Rating20-20A, 20 A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Dimensions86 mm L x 70 mm W x 163.
DisplayHDL26020 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FrameH, H-FRAME
Frame Size150A/HD
Frame TypeH Frame, HDL
Frequency Rating50/60, 50/60 Hz, 50/60HZ
FunctionsLong Time and Instantan.
Gtin785901577966
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting750 A
Instantaneous TripFixed
Interrupt Rating14/20, 25 kA at 240 VAC.
Interrupting Rating25kA at 240VAC
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Low Amp Trip Setting350 A
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Min. Wire Size14 AWG
MountingFree Standing
Mounting TypePanel Mount, Unit
MpnHDL26020
No. of Poles2-Pole
Number of Poles2
Operating Temperature-13F AND 158F (-25 C AN.
Phase1, Single
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPOWERPACT
Temperature Rating104?F
Temperature Rating (Deg.-13 to 158, -13 to 158 .
Terminal ConnectionLine/Load Lug, Line and.
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range350 A Hold, 750 A, HOLD.
Trip TimeAdjustable Trip
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic, 80% R.
UNSPSC39121616
UPC785901577966
UPC Code785901577966
Voltage600VAC, 250VDC
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 in.
Wire GaugeAWG 14 to AWG 3/0 Alumi.
Wire Size3/0-14 AWG, 14 to 3/0, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comHDL26020638.1918Square D638.19 @ 1
thumbzoomZoroG2308433667.091In StockSquare D667.09 @ 1
thumbzoomstandardelectricsupply.com2171506713.641In StockSquare D713.64 @ 1
thumbzoomgordonelectricsupply.comHDL26020765.01In Stock10SQUARE D765.0 @ 1
thumbzoomsustainablesupply.comC1167354807.581In StockSquare D3.02807.58 @ 1
thumbzoomRaptor SuppliesAF6PQB837.9231121In StockSQUARE D837.923112 @ 1
thumbzoomNewark20K0020876.21In StockSQUARE D BY SCHNEIDER ELECTRIC876.2 @ 1
steinerelectric.com428090959.121In StockSquare D?959.12 @ 1
Graybar25095552974.41In StockSquare D (Schneider Electric)974.4 @ 1
us.rs-online.com700605551007.1211Square D5.01007.12 @ 1
thumbzoomNational Supply Network695259051103.311In StockSquare D1103.31 @ 1
thumbzoomcrescentelectric.com1744101149.221In StockSquare D by Schneider Electric1149.22 @ 1
