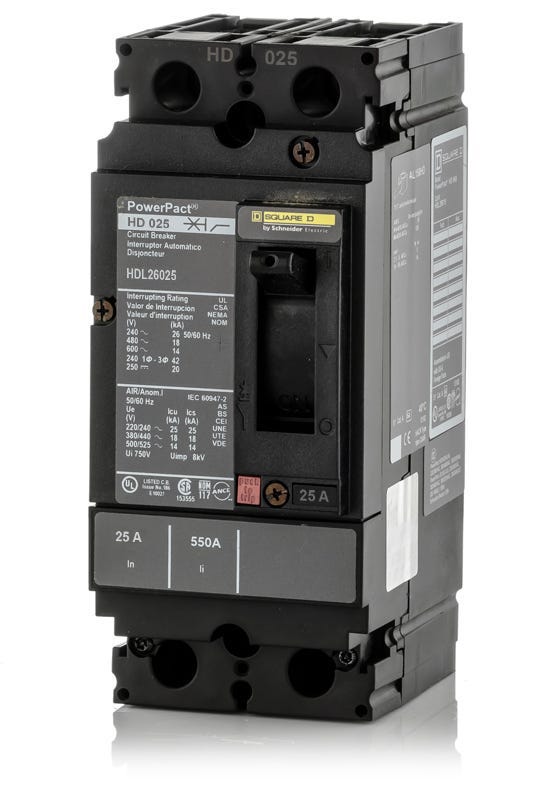

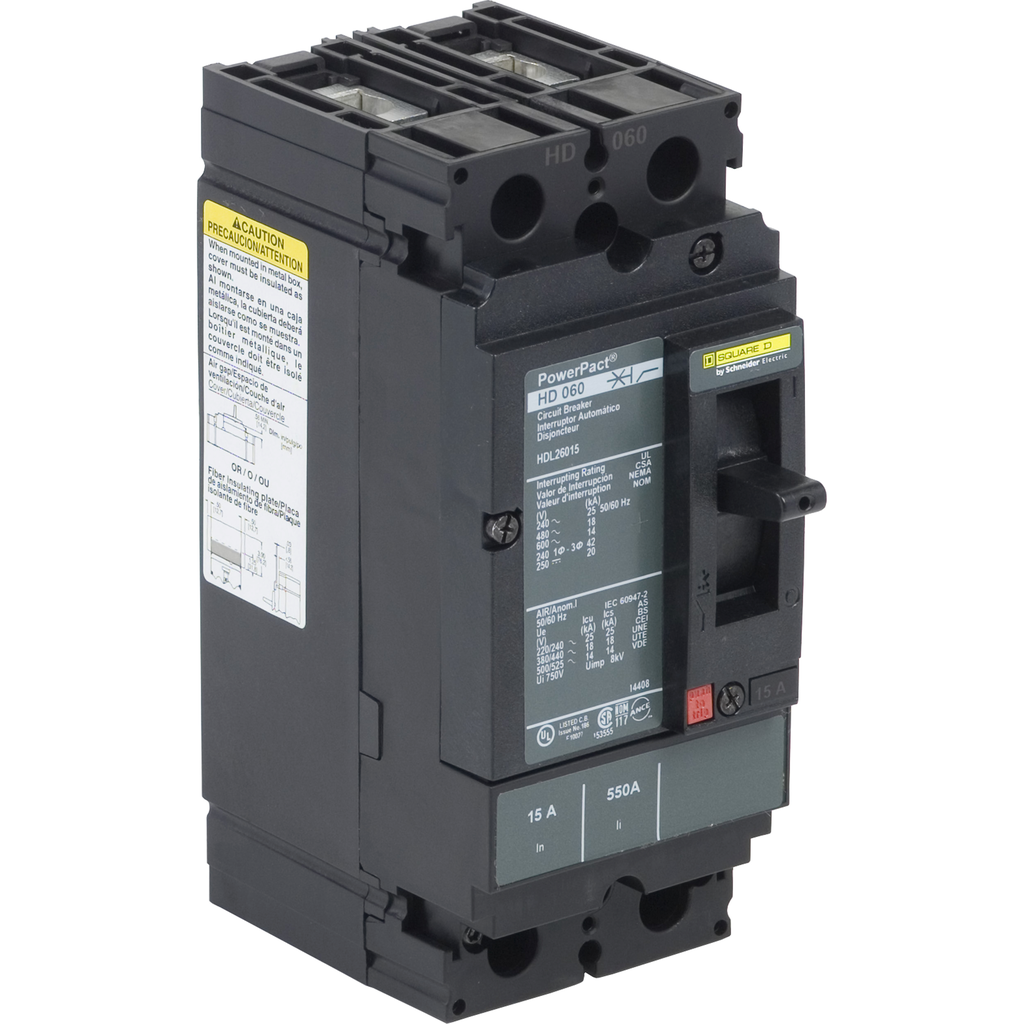

Square D Circuit Breaker, 25 Amps, Number of Poles: 2, 600VAC AC Voltage Rating

Square D Circuit Breaker, 25 Amps, Number of Poles: 2, 600VAC AC Voltage Ratingzoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage25
Amperage Rating25, 25 A, 25
Amps25 A
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDL26025
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection typeLine/Load Lug
Connection TypeFeed-Thru
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginMexico, 00 - Unknown
Current Rating25-25A, 25 A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Device Applicationdistribution
Dimensions2.74 in W x 4.36 in D x.
DisplayHDL26025 Circuit breake.
ECCNEAR99
Electrical Connectionlugs line || lugs load
Enclosure TypeNEMA AB1
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameD
Frame Size150A/HD
Frame TypeH Frame, HDL
Frequency Rating50/60, 50/60 Hz
FunctionsLong Time and Instantan.
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting750 A
Instantaneous TripFixed
Interrupt Rating25 kA at 240 VAC/18 kA .
Interrupting Rating25kA at 240VAC
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Item?1MAJ7
Length16 mm, 4.36 in
Line Rated Current25-25 A
Local Signallingswitched off (OFF) 1 tr.
Low Amp Trip Setting350 A
Made in USANo
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Operating Temp.104 ?F
Max. Wire Size3 AWG
Mercury FreeYes
Mfr. Model?HDL26025
Min. Wire Size14 AWG
MountingFree Standing
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount, Unit
MpnHDL26025
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1, Single
Phase ConnectionNot Applicable
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating104?F
Temperature Rating (Deg.104, 104 deg F
Terminal ConnectionLine/Load Lug, Line and.
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range350 to 750, 350 to 750 .
Trip TimeAdjustable Trip
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeType HDL, Thermal/Magne.
UNSPSC39121601, 39121616
Upc785901706649
UPC785901706649
UPC Code785901706649
Utilisation Categorycategory A
Voltage600VAC, 250VDC
Voltage Rating250 V DC-600 V AC, 600 .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 mm, .
Wire GaugeAWG 14 to AWG 3/0 Alumi.
Wire Size3/0-14 AWG, 14 to 3/0 A.
Wire Stripping Length16 mm
