CAI - SQUARE D HDL26030

B07J5TGWJ7

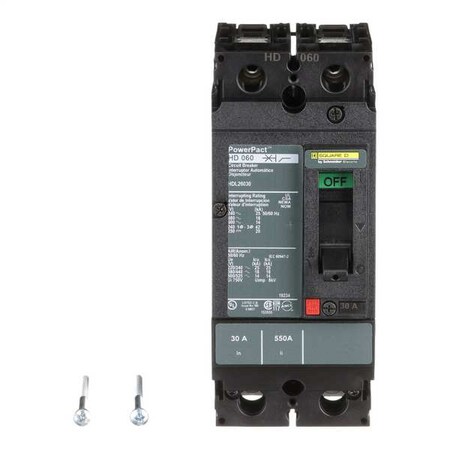

Square D Circuit Breaker, 30 Amps, Number of Poles: 2, 600VAC AC Voltage Rating

Square D Circuit Breaker, 30 Amps, Number of Poles: 2, 600VAC AC Voltage Ratingzoom

Attributes

Key Value
AC Voltage Rating600V AC
Actuator TypeToggle
Amperage Rating30
Amps30 A
ApplicationPROVIDES OVERLOAD AND S.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Catalog NumberHDL26030
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
ColorBlack
Color FamilyBlack
ConnectionLine: Lug - Load: Lug
Country of OriginMX - Mexico, Mexico
Current Rating30 A, 30-30A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26030 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FrameH-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60HZ
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting750 A
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480V.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Low Amp Trip Setting350 A
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating25 kA at 240V AC, 25kA .
Max. Operating Temp.104 Degrees F
Max. Wire Size3 AWG
Min. Wire Size14 AWG
Mounting TypePanel Mount
No. of Poles2-Pole
Number of Poles2
Operating Temperature-13F AND 158F (-25 C AN.
PhaseSingle
Phase ConnectionNot Applicable
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NOM, CE, CSA, .
Sub BrandPOWERPACT
Terminal ConnectionLine/Load Lug
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 350A - TRIP: 750A
Trip TimeAdjustable Trip
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic
UNSPSC39121616
UPC785901458920
UPC Code785901458920
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 104 mm, 4.09
Wire Size3/0-14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2384155668.381In StockSquare D668.38 @ 1
standardelectricsupply.com2188211713.641In StockSquare D713.64 @ 1
thumbzoomNewark20K0022876.21In StockSQUARE D BY SCHNEIDER ELECTRIC876.2 @ 1
thumbzoomNational Supply Network69525897930.861In StockSquare D930.86 @ 1
steinerelectric.com429193959.121In StockSquare D?959.12 @ 1
us.rs-online.com70060557963.8911Square D5.0963.89 @ 1
thumbzoomsustainablesupply.comC1167356968.351In StockSquare D3.02968.35 @ 1
Graybar25072914974.41In StockSquare D (Schneider Electric)974.4 @ 1
thumbzoomcrescentelectric.com354651149.221In StockSquare D by Schneider Electric1149.22 @ 1
grainger.caSQDHDL260301322.665306041In StockSQUARE D3.021322.66530604 @ 1
thumbzoomRaptor SuppliesAF6PQD1703.43359551In StockSQUARE D1703.4335955 @ 1
