Schneider Electric HDL26050

B00CONCFCM

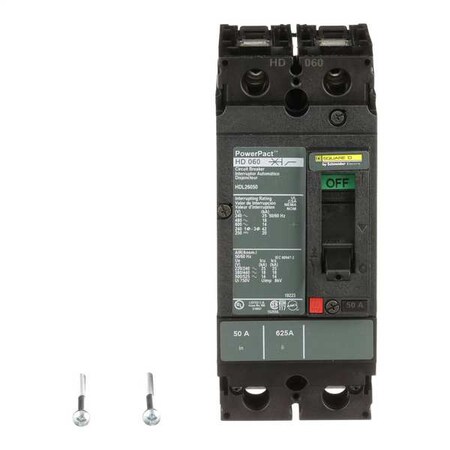

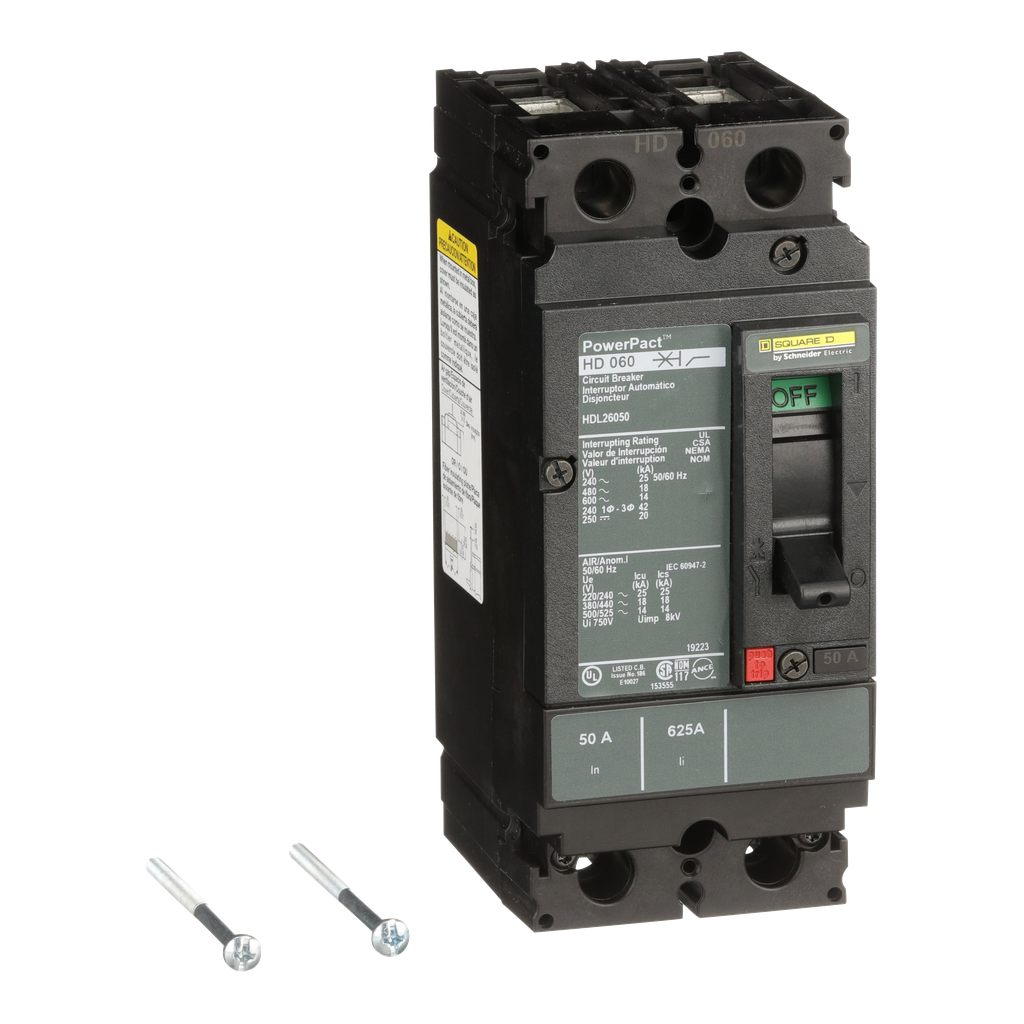

SCHNEIDER ELECTRIC 600-VOLT 50-AMP HDL26050 Molded CASE Circuit Breaker 600V 50A

SCHNEIDER ELECTRIC 600-VOLT 50-AMP HDL26050 Molded CASE Circuit Breaker 600V 50Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating50
Amps50 A
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDL26050
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionLine: Lug - Load: Lug
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginMX - Mexico, Mexico
Current Rating50-50A, 50 A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Device Applicationdistribution
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26050 Circuit breake.
ECCNEAR99
Electrical Connectionlugs line || lugs load
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameH-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60HZ
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting850 A
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480V.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Line Rated Current50-50 A
Local Signallingswitched off (OFF) 1 tr.
Low Amp Trip Setting400 A
Made in USANo
Magnetic Hold Current400 A
Magnetic Tripping Curre.850-850 A
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Mercury FreeYes
Min. Wire Size14 AWG
MountingFree Standing
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
PhaseSingle
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 400A - TRIP: 850A
Trip TimeAdjustable Trip
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
UPC785901461890
UPC Code785901461890
Utilisation Categorycategory A
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 mm, .
Wire Size3/0-14 AWG
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1167358608.051In StockSquare D3.0608.05 @ 1
thumbzoomZoroG0350987647.941In StockSquare D647.94 @ 1
standardelectricsupply.com2195340713.641In StockSquare D713.64 @ 1
Graybar25101023725.69281In StockSquare D (Schneider Electric)725.6928 @ 1
thumbzoommayerelectric.comSQDHDL26050746.611In StockSQUARE D4.84746.61 @ 1
thumbzoomgordonelectricsupply.comHDL26050765.01In Stock10SQUARE D765.0 @ 1
thumbzoomRaptor SuppliesAF6PQF837.9231121In StockSQUARE D837.923112 @ 1
thumbzoomRadwellHDL26050840.01In StockSCHNEIDER ELECTRIC SQUARE D840.0 @ 1
thumbzoomNewark20K0025876.21In StockSQUARE D BY SCHNEIDER ELECTRIC876.2 @ 1
us.rs-online.com70060561946.821In StockSquare D5.0946.82 @ 1
steinerelectric.com429196959.121In StockSquare D?959.12 @ 1
thumbzoomNational Supply Network696474101018.961In StockSquare D1018.96 @ 1
thumbzoomcrescentelectric.com2010571149.221In StockSquare D by Schneider Electric1149.22 @ 1
