Schneider Electric HDL26060

B00CONCMNY

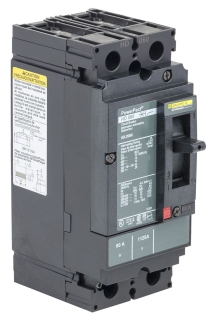

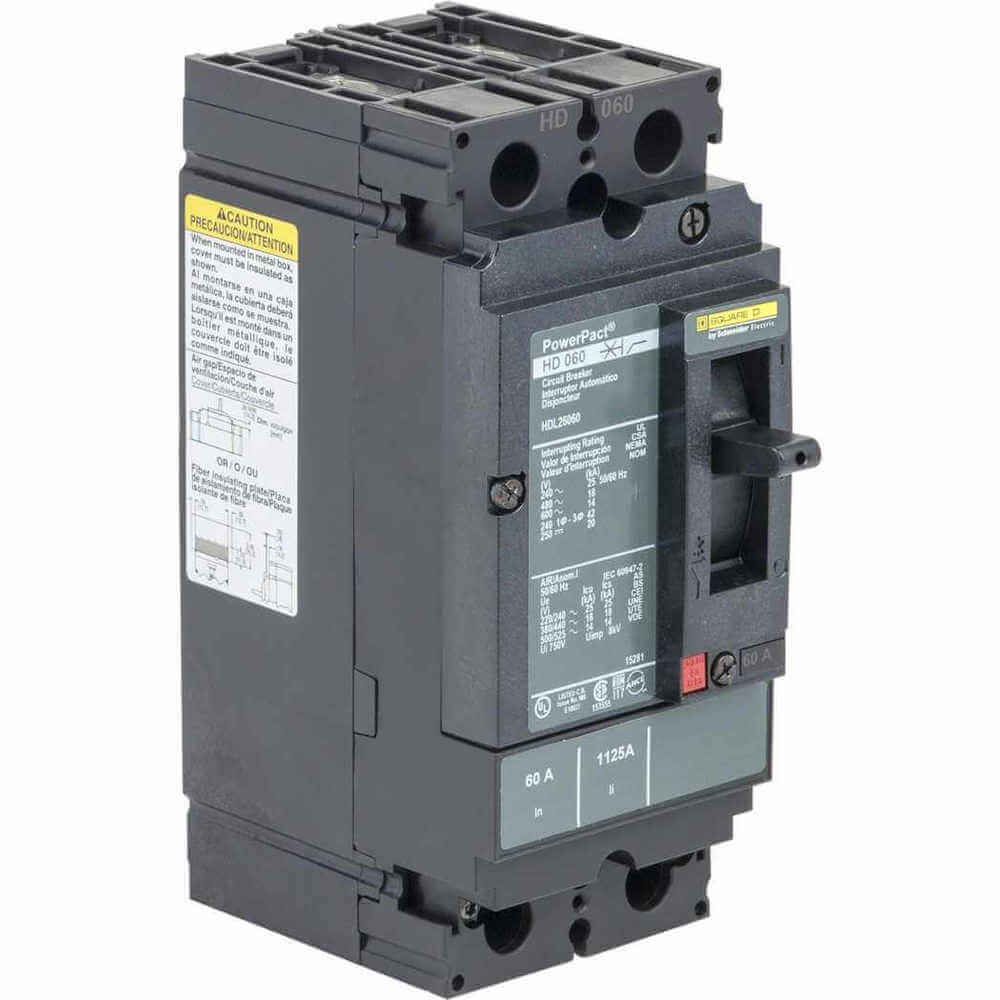

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDL26060 Molded CASE Circuit Breaker 600V 60A

SCHNEIDER ELECTRIC 600-VOLT 60-AMP HDL26060 Molded CASE Circuit Breaker 600V 60Azoom

Attributes

Key Value
AC Voltage Rating600V AC
Actuator TypeToggle
Amperage Rating60
Amps60 A
ApplicationPROVIDES OVERLOAD AND S.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Catalog NumberHDL26060
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
ColorBlack
Color FamilyBlack
ConnectionLine: Lug - Load: Lug
Country of OriginMX - Mexico, Mexico
Current Rating60A, 60 A
DC Voltage Rating250V DC
Depth4.35 in, 86 mm
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26060 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FrameH-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60HZ
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting1,450 A
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480V.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Low Amp Trip Setting800 A
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Min. Wire Size14 AWG
MountingFree Standing
Mounting TypePanel Mount
No. of Poles2
Number of Poles2
Operating Temperature-13F AND 158F (-25 C AN.
PhaseSingle
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPOWERPACT
Terminal ConnectionLine/Load Lug
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 800A - TRIP: 1450A
Trip TimeAdjustable Trip
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic
UNSPSC39121616
UPC785901577874
UPC Code785901577874
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 in.
Wire Size3/0-14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com2121805721.291In StockSquare D721.29 @ 1
thumbzoomZoroG0474607721.291In StockSquare D721.29 @ 1
simplybreakers.comHDL26060729.991In StockSchneider Electric729.99 @ 1
thumbzoomgordonelectricsupply.comHDL26060765.01In Stock10SQUARE D765.0 @ 1
Grainger1MAK2803.01In Stock16SQUARE D803.0 @ 1
Graybar25095554807.84481In StockSquare D (Schneider Electric)807.8448 @ 1
thumbzoomRaptor SuppliesAF6PQG837.9231121In StockSQUARE D837.923112 @ 1
thumbzoomRadwellHDL26060840.01In StockSCHNEIDER ELECTRIC SQUARE D840.0 @ 1
thumbzoomNewark20K0026876.21In StockSQUARE D BY SCHNEIDER ELECTRIC876.2 @ 1
us.rs-online.com70060562943.361In StockSquare D5.0943.36 @ 1
thumbzoomsustainablesupply.comC1167359946.281In StockSquare D2.98946.28 @ 1
steinerelectric.com348649959.121In StockSquare D?959.12 @ 1
thumbzoomNational Supply Network696474021062.031In StockSquare D1062.03 @ 1
thumbzoomcrescentelectric.com1636721149.221In StockSquare D by Schneider Electric1149.22 @ 1
