Schneider Electric HDL26070

B00CONQ8LQ

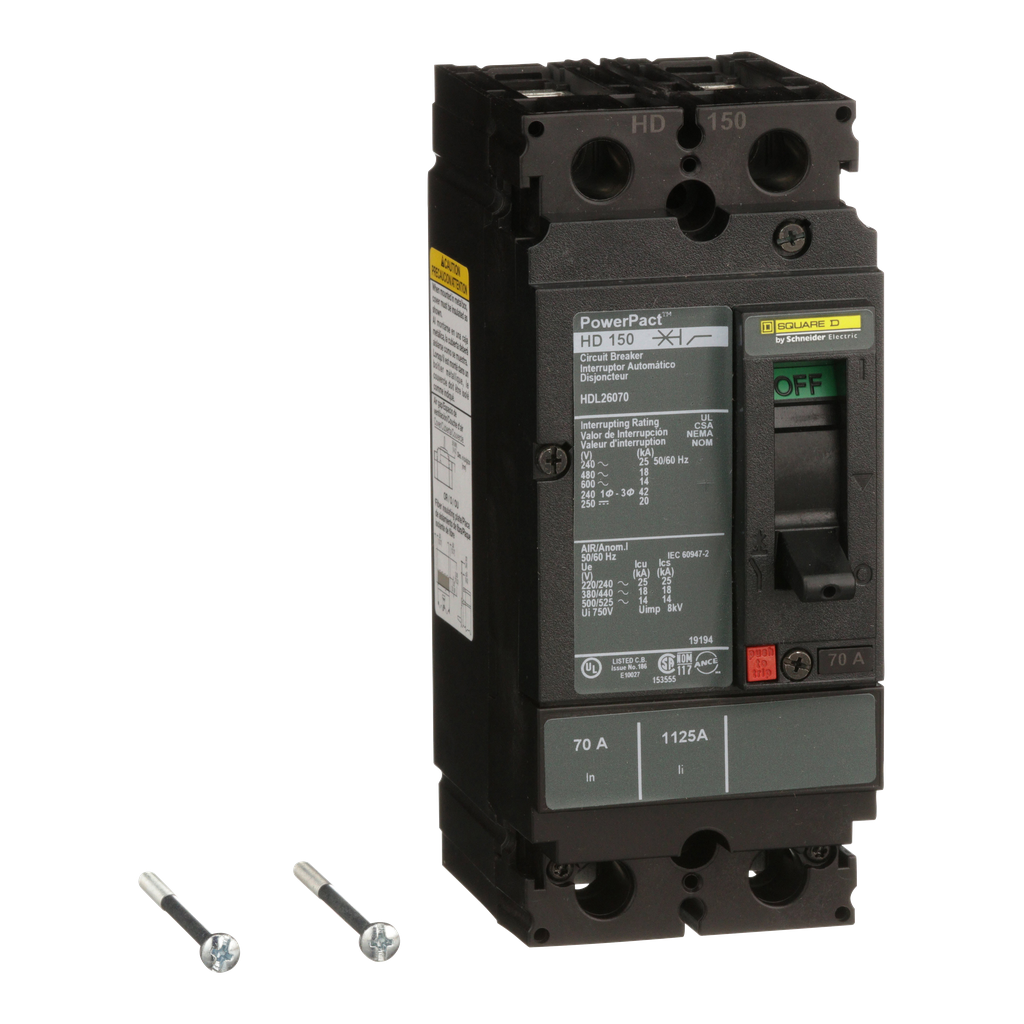

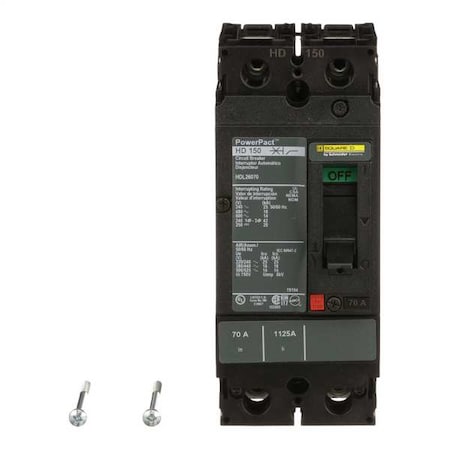

SCHNEIDER ELECTRIC 600-VOLT 70-AMP HDL26070 Molded CASE Circuit Breaker 600V 70A

SCHNEIDER ELECTRIC 600-VOLT 70-AMP HDL26070 Molded CASE Circuit Breaker 600V 70Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating70
Amps70 A
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDL26070
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginMX - Mexico, Mexico
Current Rating70 A, 70A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Device Applicationdistribution
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26070 Circuit breake.
ECCNEAR99
Electrical Connectionlugs, line || lugs, load
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameD
Frame Size150A/HD
Frame TypeH Frame
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting1,450 A
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480V.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length16 mm, 4.36 in
Line Rated Current70-70 A
Local Signallingswitched off (OFF) 1 tr.
Low Amp Trip Setting800 A
Made in USANo
Magnetic Hold Current800 A
Magnetic Tripping Curre.1450-1450 A
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Mercury FreeYes
Min. Wire Size14 AWG
MountingFree Standing
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase ConnectionNot Applicable
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range1450 A,70 A,800 A
Trip TimeAdjustable Trip
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
UPC785901461913
UPC Code785901461913
Utilisation Categorycategory A
Voltage Rating250 V DC-600 V AC, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 mm, .
Wire Size3/0-14 AWG
Wire Stripping Length16 mm
