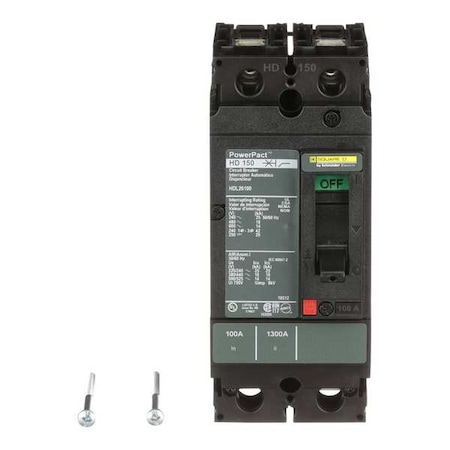

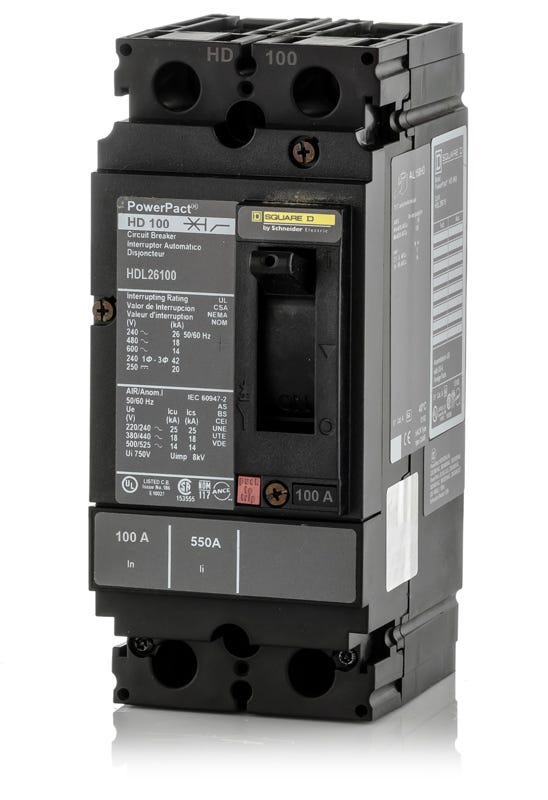

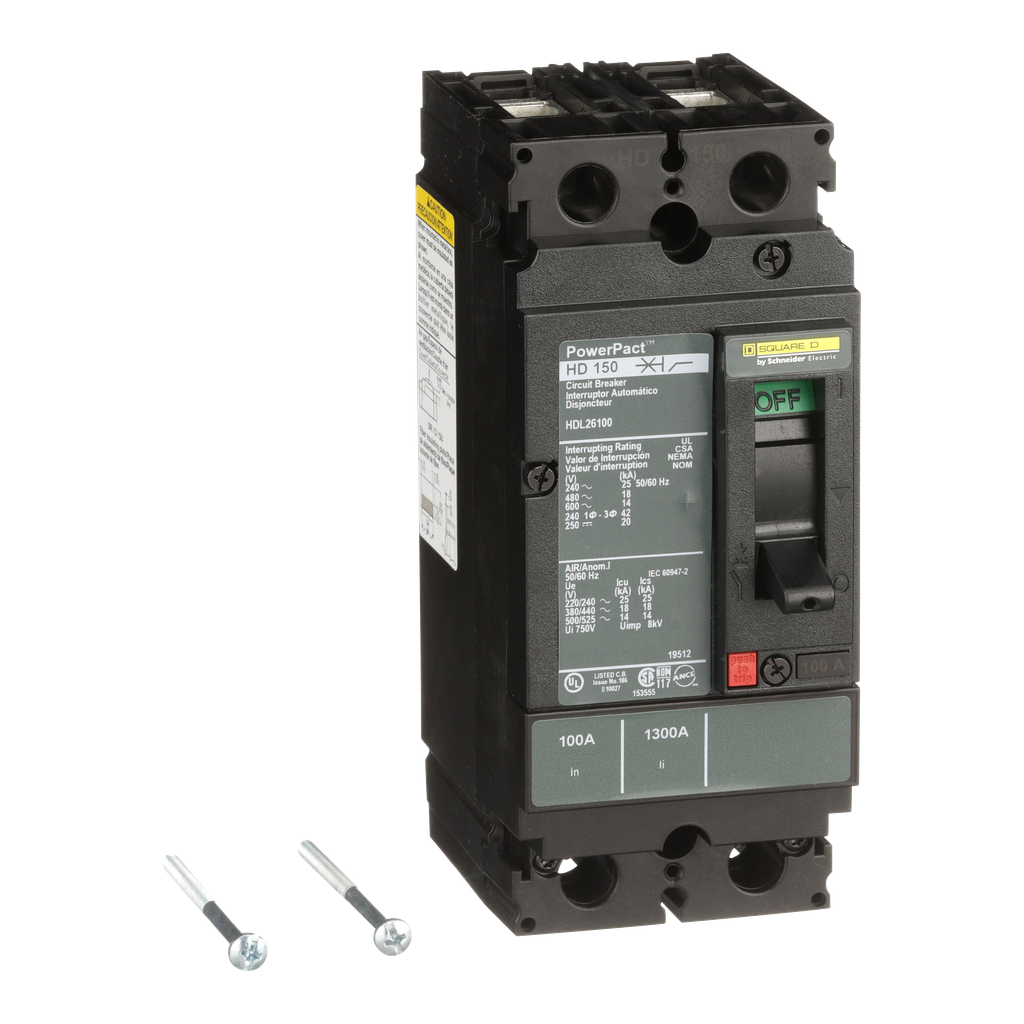

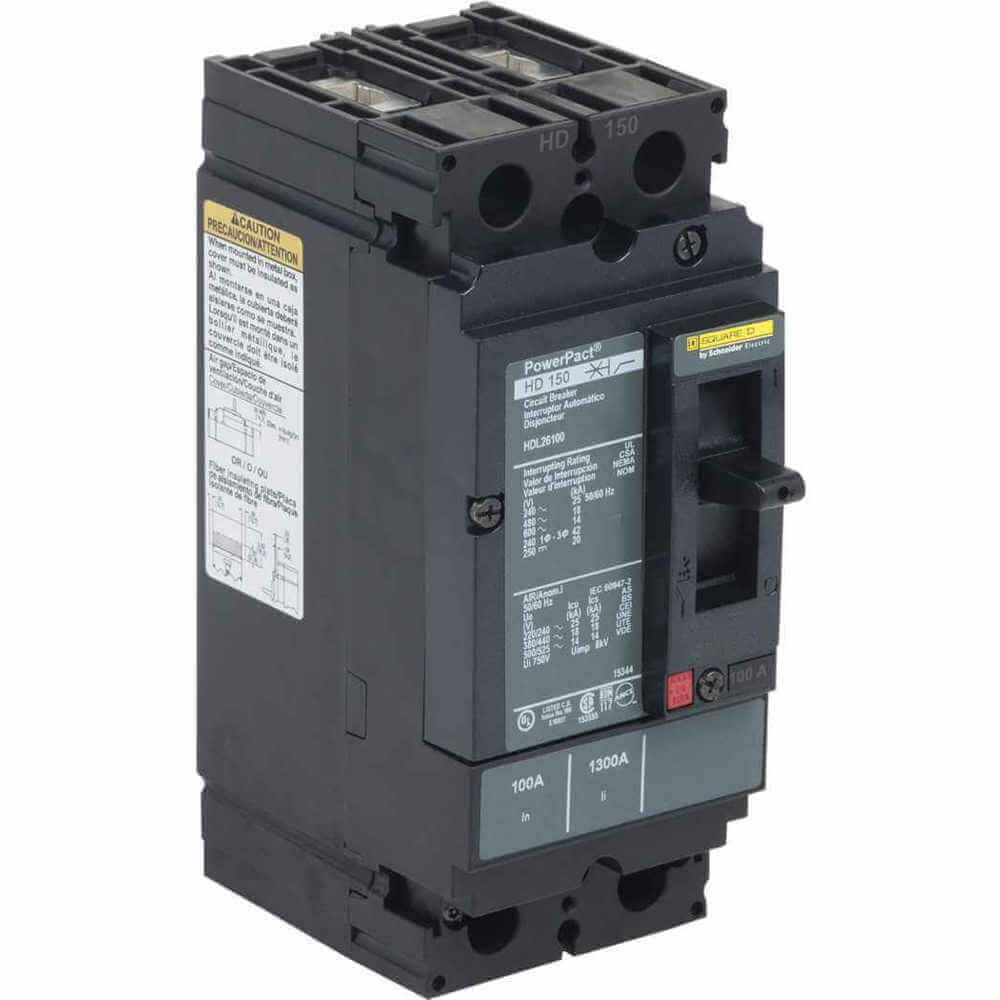

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDL26100 Molded CASE Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDL26100 Molded CASE Circuit Breaker 600V 100Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator TypeToggle
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating100, 100, 100 A
Amps100 A
ApplicationPROVIDES OVERLOAD AND S.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDL26100
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionLine: Lug - Load: Lug
Connection typeLine/Load Lug
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control TypeToggle
Country of OriginUnited States, US - Uni.
Current Rating100-100A, 100 A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Device Applicationdistribution
Dimensions86 mm L x 70 mm W x 163.
DisplayHDL26100 Circuit breake.
ECCNEAR99
Electrical Connectionlugs line || lugs load
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FrameH, H-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60, 50/60 Hz, 50/60HZ
Gtin00785901577942
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting1,700 A
Interrupt Rating14/20, 25 kA at 240 VAC.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Line Rated Current100-100 A
Local Signallingswitched off (OFF) 1 tr.
Low Amp Trip Setting900 A
Made in USAYes
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Mercury FreeYes
Min. Wire Size14 AWG
MountingFree Standing
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount
MpnHDL26100
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
Phase1, Single, 1, 1 ph
Phase ConnectionNot Applicable
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDL, PowerPact H-Frame .
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL listed.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-13 to 158, -13 to 158 .
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range900 A Hold, 1700 A, HOL.
Trip TimeAdjustable Trip
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic, 80% R.
UNSPSC39121616
Upc785901577942
UPC785901577942
UPC Code785901577942
Utilisation Categorycategory A
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 mm, .
Wire Size3/0-14 AWG, 14 to 3/0, .
Wire Stripping Length16 mm
