Square D HDL26125

B000R81D1A

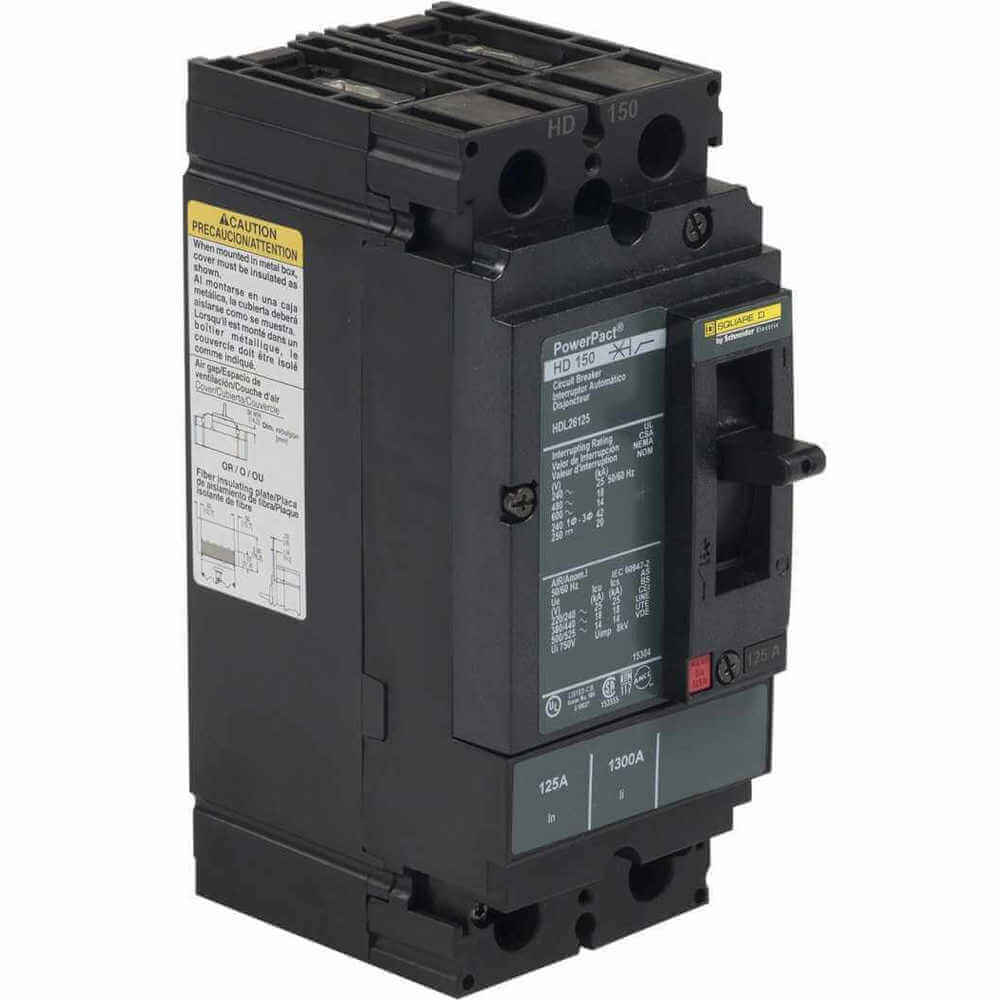

Square D - HDL26125 - HDL26125 - Thermal Magnetic Circuit Breaker, PowerPact Series, 125 A, 2 Pole, 250 VDC, 600 VAC, DIN Rail

Square D - HDL26125 - HDL26125 - Thermal Magnetic Circuit Breaker, PowerPact Series, 125 A, 2 Pole, 250 VDC, 600 VAC, DIN Railzoom

Attributes

Key Value
AC Voltage Rating600V AC
Actuator TypeToggle
Amperage Rating125
Amps125 A
ApplicationPROVIDES OVERLOAD AND S.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D by Schneider E.
Catalog NumberHDL26125
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Free Standing
Circuit Breaker TypeStandard
ColorBlack
Color FamilyBlack
ConnectionLine: Lug - Load: Lug
Country of OriginMexico, 00 - Unknown
Current Rating125 A, 125-125A
DC Voltage Rating250V DC
Depth4.36 in, 86 mm
Dimensions6.4 H x 4.12 W x 4.36 D.
DisplayHDL26125 Circuit breake.
ECCNEAR99
Family NamePowerPact H Family
FrameH-FRAME
Frame Size150A/HD
Frame TypeH Frame
Frequency Rating50/60HZ
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting1,700 A
Interrupt Rating25kA@240VAC ; 18kA@480V.
ItemMolded Case Circuit Bre.
Item TypeMolded Case Circuit Bre.
Length16 mm, 86 mm
Low Amp Trip Setting900 A
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Min. Wire Size14 AWG
MountingFree Standing
Mounting TypePanel Mount
No. of Poles2-Pole
Number of Poles2
Operating Temperature-13F AND 158F (-25 C AN.
PhaseSingle
Phase ConnectionNot Applicable
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact H-Frame Serie.
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCE, CSA, IEC, UL Listed.
Sub BrandPOWERPACT
Terminal ConnectionLine/Load Lug
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 900A - TRIP: 1700A
Trip TimeAdjustable Trip
Trip TypeTHERMAL-MAGNETIC, Therm.
TypeThermal/Magnetic
UNSPSC39121616
UPC785901461944
UPC Code785901461944
Voltage Rating600 V, 600 VAC/250 VDC
Warranty DescriptionContractual Warranty:18.
Weight5.00 lbs.
Width2.74 in, 4.09, 104 in.
Wire Size3/0-14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHDL26125799.991In StockSchneider Electric799.99 @ 1
thumbzoomRaptor SuppliesAF6PQL1267.35423751In StockSQUARE D1267.3542375 @ 1
thumbzoomZoroG32619371671.171In StockSquare D1671.17 @ 1
standardelectricsupply.com22106951699.591In StockSquare D1699.59 @ 1
thumbzoomgordonelectricsupply.comHDL261251820.01In Stock10SQUARE D1820.0 @ 1
Grainger1MAK61900.01In Stock16SQUARE D1900.0 @ 1
thumbzoomNewark20K00301948.481In StockSQUARE D BY SCHNEIDER ELECTRIC1948.48 @ 1
thumbzoomRadwellHDL261251950.01In StockSCHNEIDER ELECTRIC SQUARE D1950.0 @ 1
us.rs-online.com700605682246.681In StockSquare D5.02246.68 @ 1
Graybar250703292320.641In StockSquare D (Schneider Electric)2320.64 @ 1
thumbzoomsustainablesupply.comC11673632454.631In StockSquare D3.022454.63 @ 1
thumbzoomcrescentelectric.com135692736.991In StockSquare D by Schneider Electric2736.99 @ 1
