Square D by Schneider Electric HOM2448M125PC

B00NOKO086

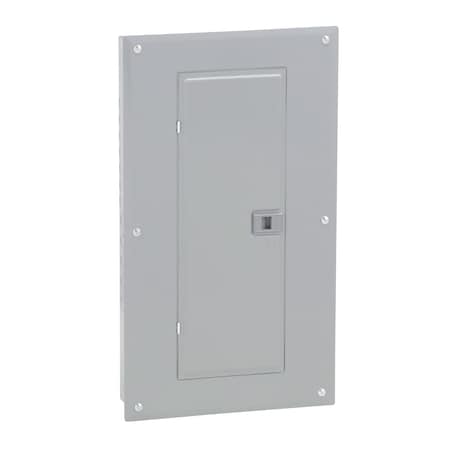

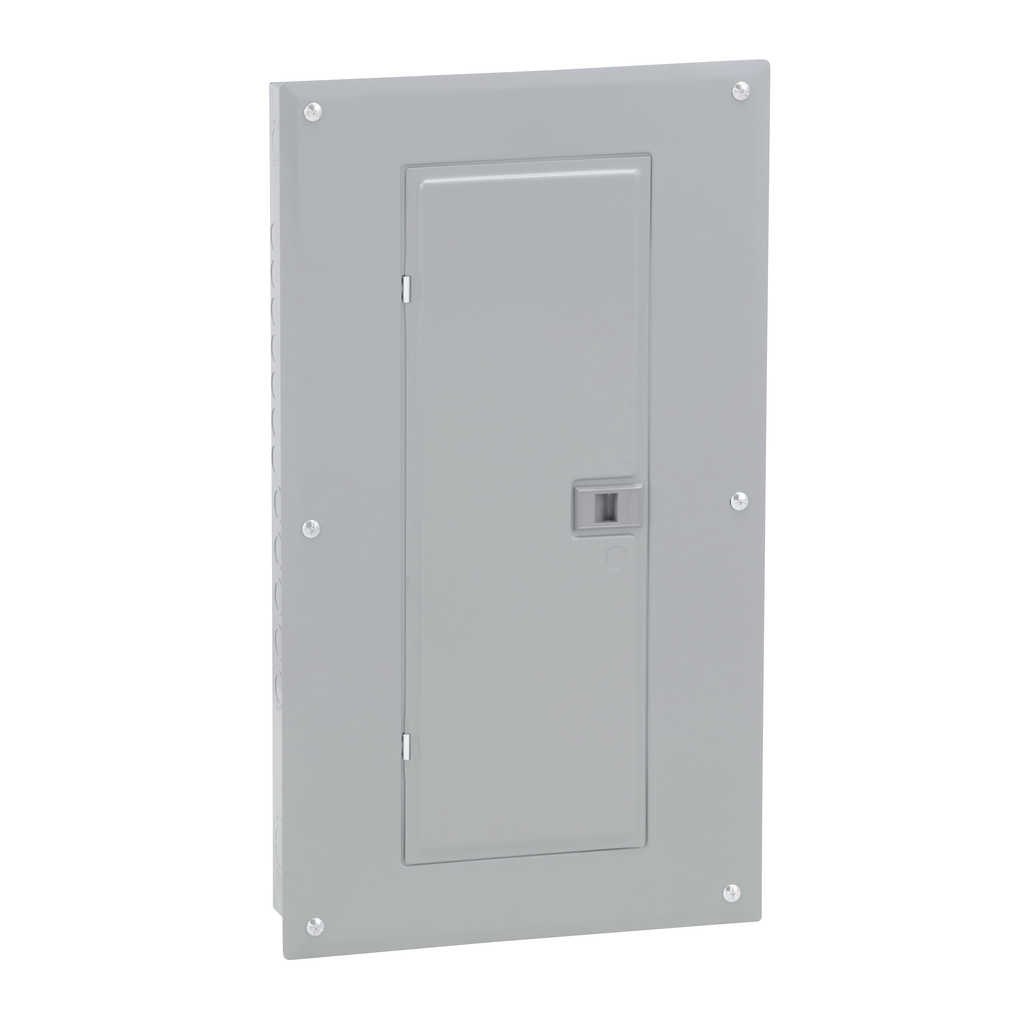

Square D - HOM2448M125PC Homeline 125 Amp 24-Space 48-Circuit Indoor Main Breaker Load Center with Cover (Plug-on Neutral Ready),

Square D - HOM2448M125PC Homeline 125 Amp 24-Space 48-Circuit Indoor Main Breaker Load Center with Cover (Plug-on Neutral Ready),zoom

Attributes

Key Value
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage Rating125
Amps125 A
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 6...AWG 2/0 alumini.
AWG RangeAWG 6...AWG 2/0 Aluminu.
Box Number8
BrandSquare D by Schneider E.
Bus Materialtin plated aluminium bu.
Bus Rated Current125.0 A
Cable SizeAWG 6...AWG 2/0 alumini.
California Proposition .Lead and lead compounds.
Catalog NumberHOM2448M125PC
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeHomeline
Colorbaked enamel Gray
Color FamilyGray
Country of OriginUnited States, US - Uni.
Cover Typecombination flush/surfa.
Current Rating125 A
Depth95 mm
Device Compositiongrounding bar (ordered .
ECCNEAR99
EnclosureBaked enamel Gray;Welde.
Enclosure Materialwelded sheet steel
Enclosure NEMA RatingNEMA 1 indoor
Environmental DisclosureENVPEP1403002
Eu Rohs DirectiveCompliant
Ground Bar Kitgrounding bar (ordered .
Height661 mm
Interrupt Rating22 kA
ItemHomeline,LC,125 A,120/2.
Item TypeLoad Center
Line Rated Current125 A
Load Center TypePoN Convertible Mains (.
Made in USAYes
Main Circuit Breaker or.PoN Convertible Mains (.
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
Materialtin plated aluminium bu.
Max. No. of Tandem Brea.24
Max. Single Pole Circui.24
Max. Tandem Circuits48
Mercury FreeYes
Nema Degree Of Protecti.NEMA 1 indoor
NEMA Rating1
No. of Circuits48
No. of Spaces24
No. of Wires3-wire
Number Of Circuits48
Number Of Spaces24
Number Of Tandem Circui.24
Package Quantity1
Phase1, 1 phase
Primary/Ambient Air Tem.-5?C || 40?C
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Provided Equipmentcircuit-breaker 1 ) 2P .
Range Of ProductHomeline
Rated Current125A
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHOM Series
Short Circuit Current R.22 kA
Short-Circuit Current22 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
StandardsUL listed file E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
UNSPSC39121101
UPC785901977155
UPC Code785901977155
Voltage Rating120/240 V AC
Width362 mm
Wire SizeAWG 6...AWG 2/0 alumini.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot20483636399.941In StockSquare D99.94 @ 1
AmazonB00NOKO086109.01In StockSquare D by Schneider Electric109.0 @ 1
AmazonTPB00NOKO086139.081In Stock4Square D by Schneider Electric139.08 @ 1
thumbzoomgordonelectricsupply.comHOM2448M125PC144.591In Stock10SQUARE D144.59 @ 1
thumbzoommayerelectric.comSQDHOM2448M125PC162.891In StockSQUARE D162.89 @ 1
steinerelectric.com817778176.31In StockSquare D?176.3 @ 1
thumbzoomRadwellHOM2448M125PC195.01In StockSCHNEIDER ELECTRIC SQUARE D195.0 @ 1
thumbzoomZoroG3304171232.991In StockSquare D25.7232.99 @ 1
us.rs-online.com70920779406.9111Square D406.91 @ 1
Graybar25649650908.2081In StockSquare D (Schneider Electric)908.208 @ 1
thumbzoomcrescentelectric.com238953930.851In StockSquare D by Schneider Electric930.85 @ 1
