Square D HOM24L70F

B008KMJ9M0

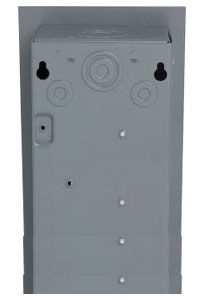

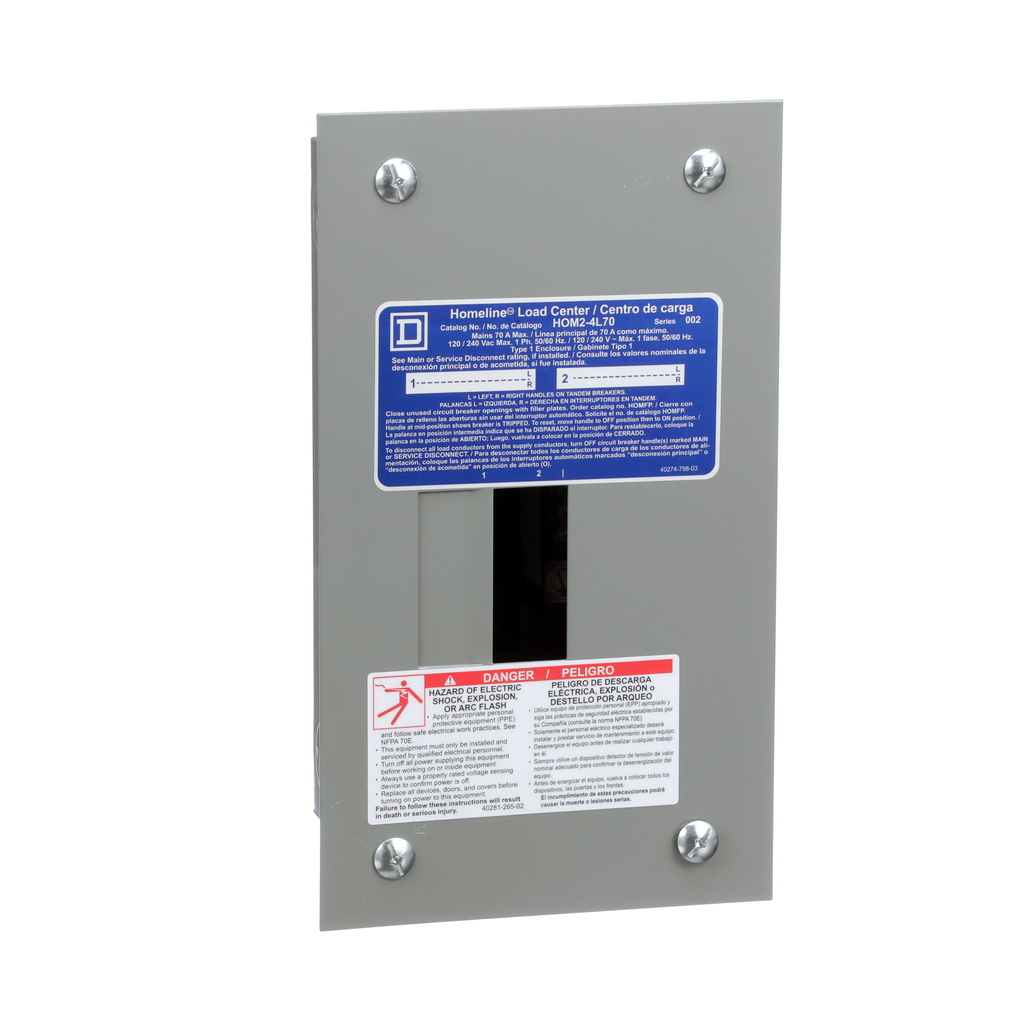

SQUARE D HOM24L70F Load Center HOM Mlo 240V 70A 1Ph 2Sp

SQUARE D HOM24L70F Load Center HOM Mlo 240V 70A 1Ph 2Spzoom

Attributes

Key Value
Additional FeaturesFixed Mains - Lugs
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage Rating70, 70 A, 70
Amps70
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 12...AWG 3 aluminiu.
AWG RangeAWG 12...AWG 3 Aluminum.
Box Number2
BrandSquare D by Schneider E.
Breaker MountingPanel
Breaker TypeHOM
Bus Materialtin plated aluminium bu.
Cable SizeAWG 12...AWG 3 aluminiu.
California Proposition .Lead and lead compounds.
Catalog NumberHOM24L70F
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeHOM
Colorbaked enamel Gray
Color FamilyGray
Country of OriginMX - Mexico, Mexico
Cover Typeflush cover
Depth81 mm
Dimensions4.81 in W x 3.19 in D x.
ECCNEAR99
EnclosureBaked enamel Gray;Welde.
Enclosure Box Size2
Enclosure Materialwelded sheet steel
Enclosure NEMA RatingNEMA 1 indoor || NEMA 3.
Enclosure TypeNEMA 1
Environmental DisclosureENVPEP1403002
Eu Rohs DirectiveCompliant
Frequency Rating50/60, 50/60 Hz
Height236 mm
Housing materialSteel
Interrupt Rating10 kA, 10, 10 kA
ItemLoad Center
Item TypeLoad Center
Line Rated Current70 A
Load Center Typemain lugs
Made in USANo
Main Circuit Breaker or.Main Lug
Main TypeFixed Mains (Lugs)
ManufacturerSchneider Electric
Materialtin plated aluminium bu.
Max. No. of Tandem Brea.2
Mercury FreeYes
Mounting typeFlush
Mounting TypeFlush
Nema Degree Of Protecti.NEMA 1 indoor || NEMA 3.
NEMA Rating1
No. of Circuits4
No. of Spaces2
No. of Wires3-wire
Number Of Circuits4
Number of Circuits4
Number of Poles1
Number Of Spaces2
Number of Spaces2
Number Of Tandem Circui.2
Package Quantity1
Phase1, 1 phase
Primary/Ambient Air Tem.-5?C || 40?C
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Range Of ProductHomeline
Rated Current70A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesHOM Series, HOM24
Short Circuit Current R.10 kA
Short-Circuit Current10 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
StandardsUL listed file E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type1-Phase Fixed
UNSPSC39121101
UPC785901061151
UPC Code785901061151
Voltage240V
Voltage Rating120/240, 120/240 VAC, 1.
WarrantyLifetime
Warranty DescriptionContractual Warranty:Li.
Width122 mm
Wire SizeAWG 12...AWG 3 aluminiu.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomimprovedepot.com3130615.291In StockSquare D15.29 @ 1
thumbzoomgordonelectricsupply.comHOM24L70F24.491In Stock10SQUARE D24.49 @ 1
thumbzoomRadwellHOM24L70F28.011SCHNEIDER ELECTRIC SQUARE D28.0 @ 1
thumbzoomsustainablesupply.comC304554428.981In StockSquare D3.7828.98 @ 1
Newark79C863629.061In StockSQUARE D BY SCHNEIDER ELECTRIC29.06 @ 1
steinerelectric.com32567229.751In StockSquare D?29.75 @ 1
thumbzoomZoroG085785130.491In StockSquare D3.7830.49 @ 1
thumbzoommayerelectric.comSQDHOM24L70F32.511In StockSQUARE D32.51 @ 1
us.rs-online.com7092078145.9712Square D45.97 @ 1
thumbzoomstandardelectricsupply.com234173951.011In StockSquare D51.01 @ 1
thumbzoomcrescentelectric.com11655974.731In StockSquare D by Schneider Electric74.73 @ 1
Graybar8831385675.46561In StockSquare D (Schneider Electric)75.4656 @ 1
