Square D by Schneider Electric HOM3060M200PC

B00NP2BELE

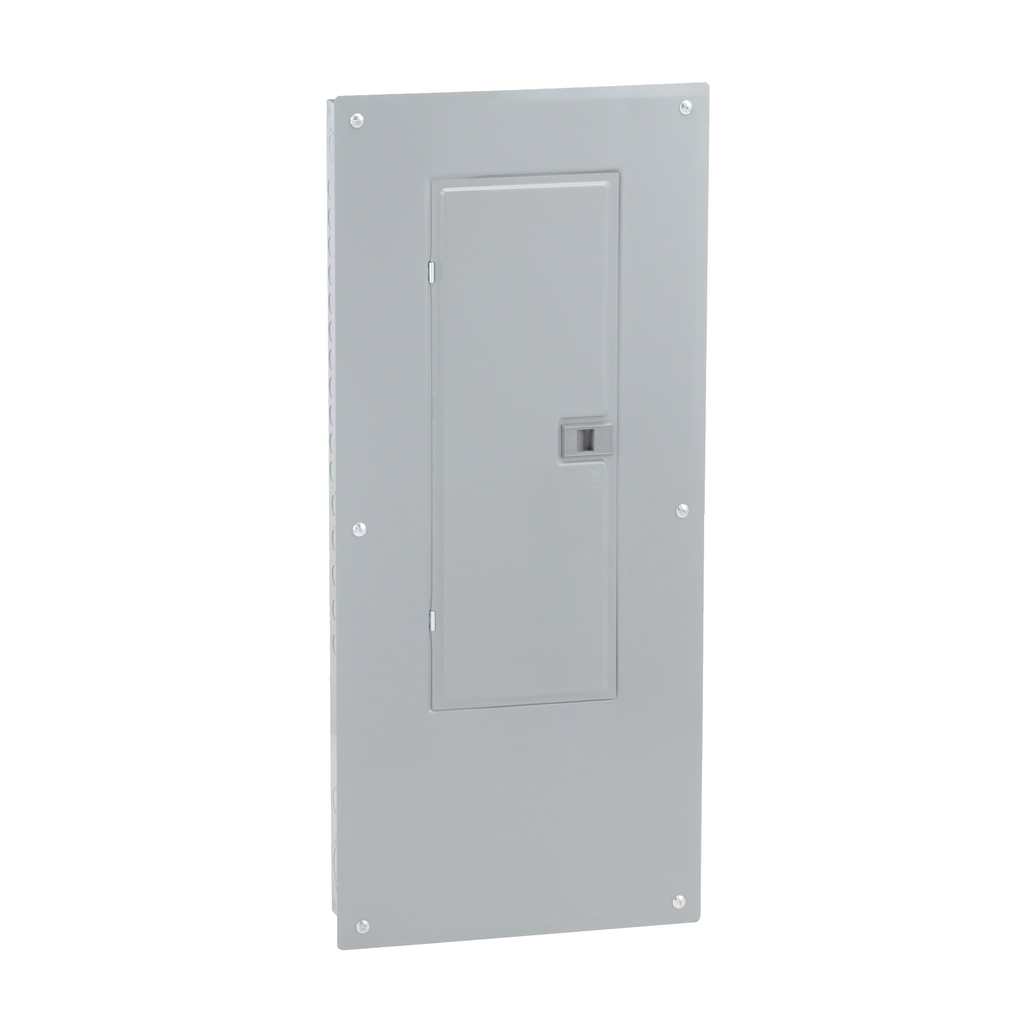

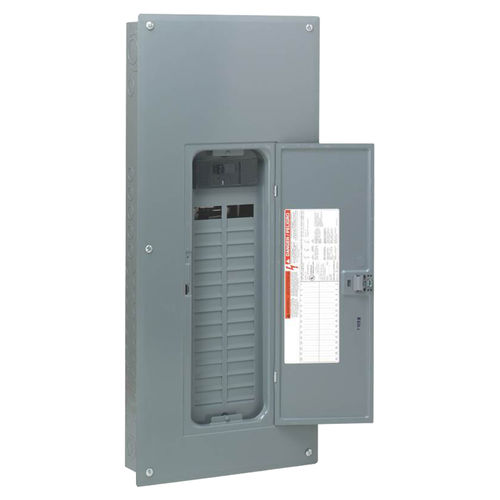

Square D - HOM3060M200PC Square D Convertible Mains (Breaker) Load Center, 120/240 Vac, 200 A, 1 Phases, 22000 Air Interrupt

Square D - HOM3060M200PC Square D Convertible Mains (Breaker) Load Center, 120/240 Vac, 200 A, 1 Phases, 22000 Air Interruptzoom

Attributes

Key Value
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage200A
Amperage Rating200, 200, 200 A
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 4...250 kcmil alumi.
AWG RangeAWG 4...250 kcmil Alumi.
Box Number10
BrandSquare D, Square D by S.
Breaker MountingPanel
Breaker TypeHOM
Cable SizeAWG 4...250 kcmil alumi.
California Proposition .Lead and lead compounds.
Catalog NumberHOM3060M200PC
China Rohs RegulationPro-active China RoHS d.
Colorbaked enamel Gray
Color FamilyGray
ConditionNew
ConfigurationEnclosed
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cover Typecombination flush/surfa.
Current Rating200 A
Depth95 mm
Device Compositiongrounding bar (ordered .
Dimensions14.25 in W x 3.75 in D .
ECCNEAR99
Enclose TypeIndoor
EnclosureBaked enamel Gray;Welde.
Enclosure Box Size10
Enclosure Materialwelded sheet steel
Enclosure TypeNEMA 1
Environmental DisclosureENVPEP1403002
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Frequency Rating50/60, 50/60 Hz
Gross Weight0 lbs
Height858 mm, 7
Housing materialSteel
Interrupt Rating22 kA, 22, 22 kA
ItemHomeline,LC,200 A,120/2.
Item NumberHOM3060M200PC
Item TypeLoad Center
Item Weight32.20 lbs per EA
Length37
Line Rated Current200 A
Load Center Typemain breaker
Made in USAYes
Main TypePoN Convertible Mains (.
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number437352
Materialtin plated aluminium bu.
Max Number of Circuits60
Max. Single Pole Circui.30
Max. Tandem Circuits60
Mercury FreeYes
MFRHOM3060M200PC
Mount TypeCombination
Mounting typeFlush/Plug-On/Surface
Nema Degree Of Protecti.NEMA 1 indoor
Net Weight0 lbs
No. of Circuits60
No. of Spaces30
No. of Wires3-wire
Number Of Circuits60
Number of Circuits60
Number of Poles1
Number of Spaces30
Number Of Spaces30
Number Of Tandem Circui.30
Package Quantity1
Phase1, Single, 1 phase
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Provided Equipmentcircuit-breaker 1 ) 2P .
Range Of ProductHomeline
Rated Current200A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesHOM Series, Homeline
Short-Circuit Current22 kA
SKU12079599
Special Featurestin plated aluminium bu.
StandardUL E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type1-ph Convertible Neutra.
UL ListedYes
UNSPSC39121101
UPC785901977759
UPC Code785901977759
Voltage120V/240V
Voltage Rating120/240, 120/240 VAC, 1.
Weight2.000000
Width362 mm, 17
Wire Size6 to 2/0, 6 to 2/0 AWG,.
Wiring Configuration3-wire
