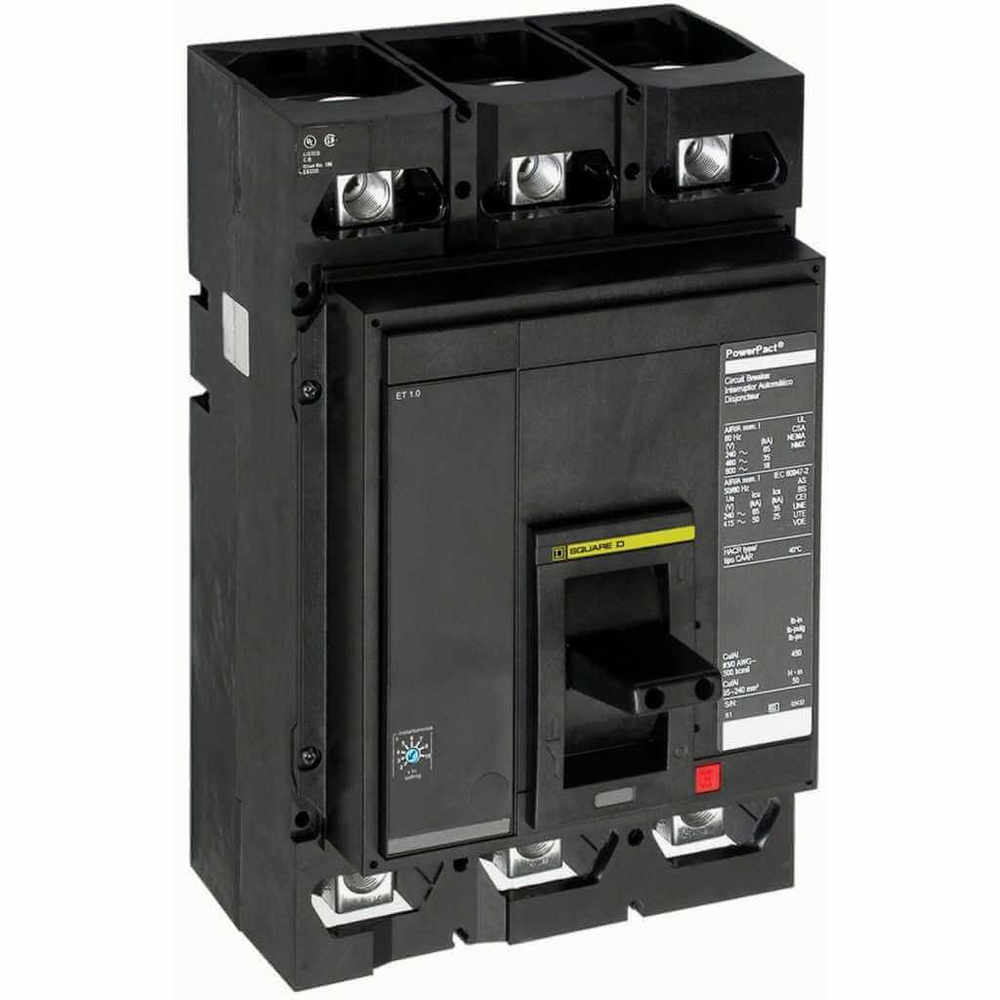

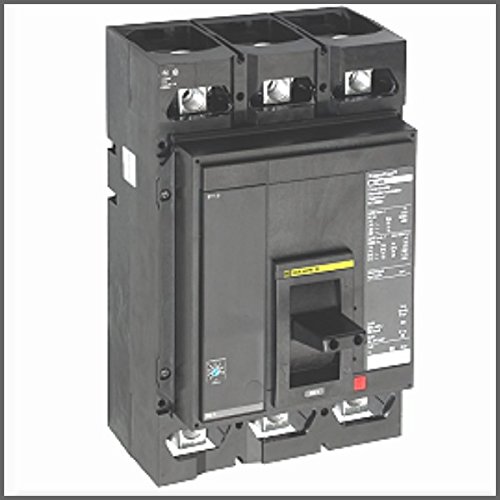

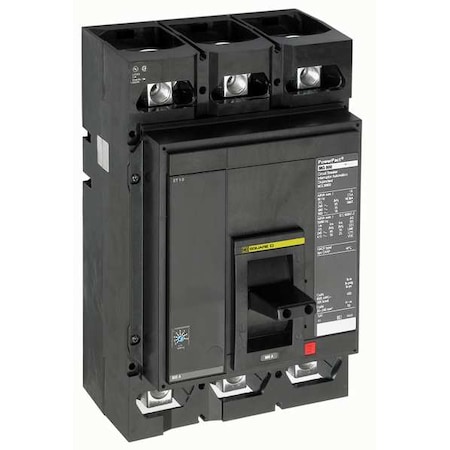

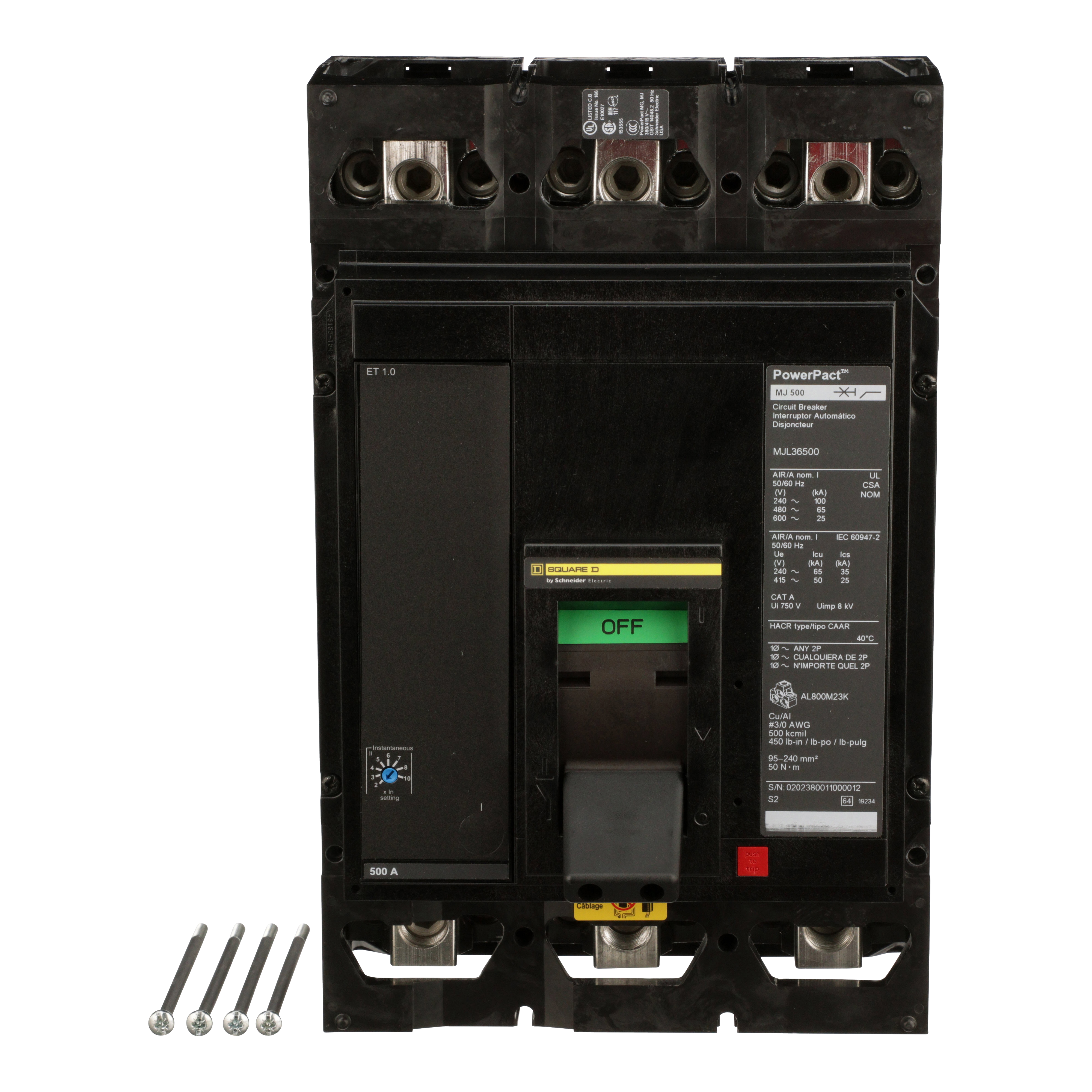

Square D MJL36500

B00KXJRJIE

MJL36500

MJL36500zoom

Attributes

Key Value
[Ics] rated service sho.80 %
AC Voltage Rating600V AC
ActuatorOperating handle
Actuator TypeElectronic
Amperage500A
Amperage Rating500, 500 A, 500
Amps500 A
ApplicationDistribution;HACR rated
ApprovalUL Listed, CE and CSA C.
AWG Range3 x AWG 3/0...3 x 500 k.
BrandSquare D, Square D by S.
Breaking capacity25 kA 600 V, 100 kA 240.
Catalog NumberMJL36500
Catalog PageN/A
Category01205 - MG, MJ UNIT MOU.
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Lug In/Lug Out
Circuit Breaker TypeStandard
ColorBlack
Color FamilyBlack
Commercial StatusCommercialised
ConnectionLugs load;lugs line; 3 .
Connection typeLine/Load Lug
Contactor TypeMagnetic
Country of OriginUnited States, US - Uni.
Country of originUS
Current Rating500-500A
Current sensor rating r.500 A
DC Voltage RatingNot Rated
Depth8.05 in., 8.1 in
Dimensions8.1 in L x 8.3 in W x 1.
Discount ScheduleDE2
ECCNEAR99
Environmental ConditionsAMBIENT ENVIRONMENT
For Use WithEquipment Gear
FrameM-FRAME, M
Frame Size800A/M
Frequency Rating50/60, 50/60 Hz, 50/60 .
GTIN00785901570196
Gtin00785901570196
Height12.9 in, 12.86, 12.86 i.
Height UOMInch
High Amp Trip Setting5,000 A
Instantaneous TripAdjustable
Interrupt Rating100 kA at 240 VAC/65 kA.
ItemMolded Case Circuit Bre.
Item TypeCircuit breaker
Item?6NHE0
Length25 mm, 8.10 IN.
Low Amp Trip Setting1,000 A
Made in USAYes
ManufacturerSchneider Electric
MaterialVARIOUS
Max. AIR Rating25 kA at 600V AC, 25kA .
Max. Wire Size500 MCM
Mfr. Model?MJL36500
Min. Wire Size3/0 AWG
MountingLug In/Lug Out
Mounting modeUnit mount
Mounting typeUnit
Mounting TypeBolt-On
MpnMJL36500
Nbr. of units in pkg.1
No. of Poles3-Pole
Number of Poles3
Operating Temperature40DEG CELSIUS
Package weight(Lbs)29.00
Period18 months
Phase3, Three, 3, 3 ph
Phase ConnectionCBA
Poles3
Poles description3P
Product availabilityNon-Stock - Not normall.
Product certificationsIEC, CSA, UL listed
Product or component ty.Molded Case Circuit Bre.
Range of productPowerPact M
Rated Voltage600V AC 50/60 Hz UL 489
ReturnabilityY
SeriesMJL, MJ
Special Features1
StandardUL || CSA || NEMA || NO.
StandardsRoHS Compliant, CSA, IE.
Sub BrandPowerPact M
Temperature Rating (Deg.40, 40 deg C
Terminal ConnectionBox Lug
Torque50-50 N.m 95-240 mm? (3.
Trip Range500A, 500, 500 A
Trip TypeElectronic Basic ET1.0 .
Trip unit technologyElectronic basic ET 1.0.
UNSPSC39121601, 39121616
Upc785901570196
UPC785901570196
Voltage600
Voltage Rating600, 600 VAC, 600 VAC
Warranty DescriptionContractual Warranty:18.
Width8.3 in, 8.27 in., 8.27
Width UOMInch
Wire Size3/0 AWG to 500 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG7FVF8.93881In StockSQUARE D8.9388 @ 1
simplybreakers.comMJL365005399.991In StockSchneider Electric5399.99 @ 1
thumbzoomsuperbreakers.comMJL365006816.611Square D6816.6 @ 1
thumbzoomstandardelectricsupply.com22601457756.471In StockSquare D7756.47 @ 1
thumbzoomgordonelectricsupply.comMJL365008295.01In Stock10SQUARE D8295.0 @ 1
thumbzoomZoroG35478718615.311In Stock245Square D29.08615.31 @ 1
Newark20K15628632.851In StockSQUARE D BY SCHNEIDER ELECTRIC8632.85 @ 1
thumbzoomRadwellMJL365008650.01In StockSCHNEIDER ELECTRIC SQUARE D8650.0 @ 1
thumbzoomcrescentelectric.com371708800.01In StockSquare D by Schneider Electric8800.0 @ 1
thumbzoommayerelectric.comSQDMJL365009051.211In StockSCHNEIDER ELECTRIC29.09051.21 @ 1
thumbzoomsustainablesupply.comC121273310500.01In StockSquare D29.010500.0 @ 1
Graybar2514844210592.22081In StockSquare D (Schneider Electric)10592.2208 @ 1
Grainger6NHE011100.031In StockSQUARE D11100.03 @ 1
grainger.caSQDMJL3650011846.81601571In StockSQUARE D29.011846.8160157 @ 1
