Schneider Electric SDSA3650

B000LEN0A2

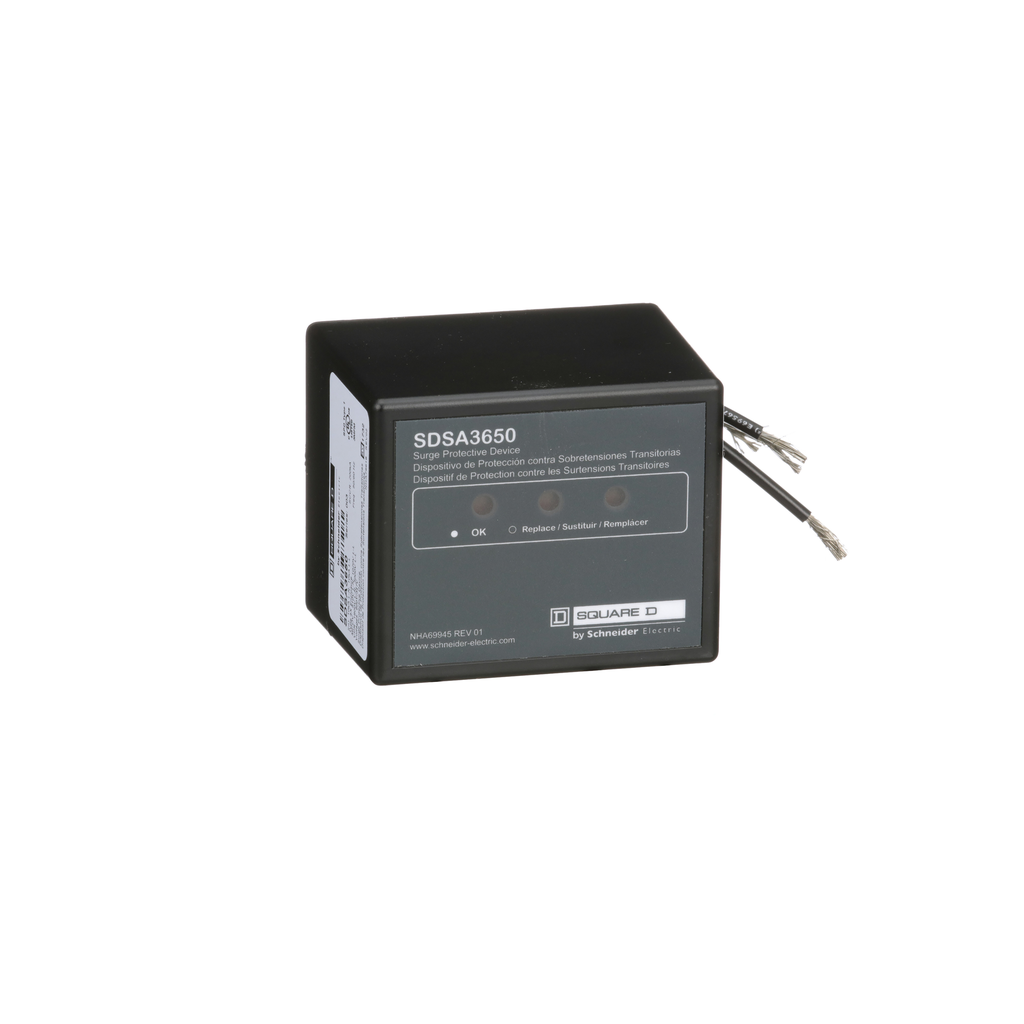

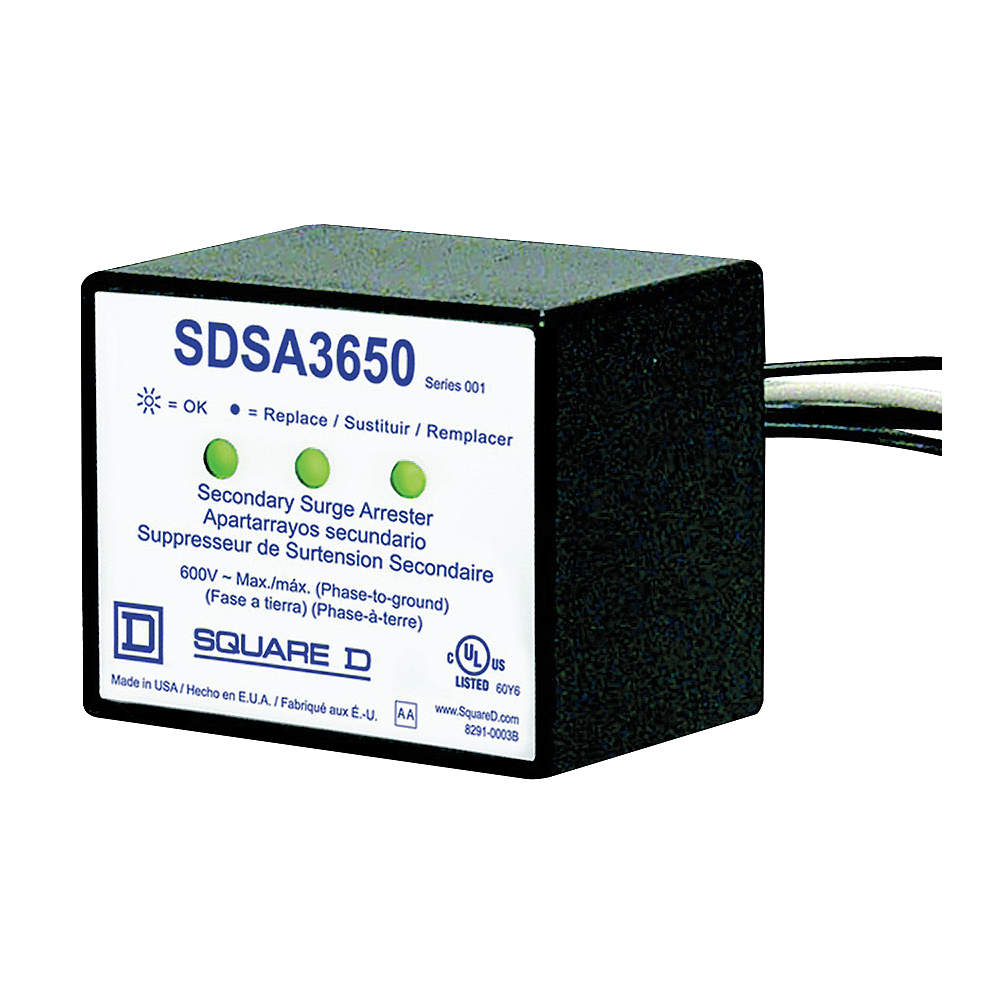

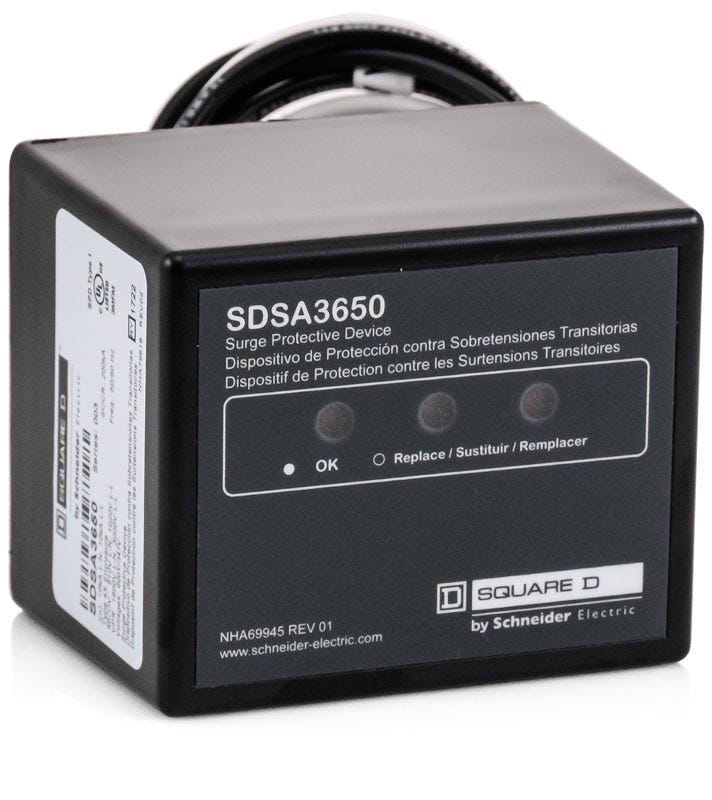

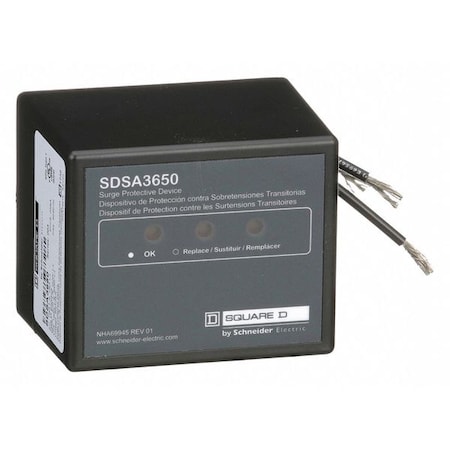

SCHNEIDER ELECTRIC Load Center 3Ph Secondary Surge Arrestor SDSA3650 SPD T1 Sdsa 40Ka 600V Max 3P4W, Black

SCHNEIDER ELECTRIC Load Center 3Ph Secondary Surge Arrestor SDSA3650 SPD T1 Sdsa 40Ka 600V Max 3P4W, Blackzoom

Attributes

Key Value
[Uc] Maximum Continuous.510 V
[Ue] Rated Operational .600Y/347 V AC
Ambient Air Temperature.65-65 ?C
Amperage Rating40kA per Phase
ApplicationLOAD CENTERS AND CSEDS,.
ASINB075XMJVZ4
Batteries Included?No
Batteries Required?No
BrandSquare D, Square D by S.
Cable Length24 in
California Proposition .DINP, which is known to.
Catalog NumberSDSA3650
Chase Nipple Size1/2 in
China Rohs RegulationProduct out of China Ro.
ColorBlack
ConditionNew
Connection Type4-wire
Country of OriginUS - United States, Mex.
Current Stock97
Depth3.4 in
ECCNEAR99
EnclosureNEMA 4X,BLACK PLASTIC
Enclosure MaterialBlack Plastic
Enclosure NEMA Rating4X
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Filtering / NonfilteringNonfiltering
GTIN785901210887
Gtin785901210887
Height3 in
IncludesLED Status Indicator
International ShippingNo
Interrupt Rating200 kA
Is Discontinued By Manu.No
ItemSurge Protection Device
Item model numberSDSA3650
Item TypeSurge Protection Device
Joules1,304 J
Lead TimeExpected to ship in 1-2.
Length3 in
Length (Straight Wirewa.3.0 in
Local Signallingstatus LED green normal.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Max. Continuing Operati.510 V AC
Max. Surge Current1304 Joules
Max. Surge Current Per .40kA
Modes of ProtectionL-L, L-N
Modular / NonmodularNonmodular
Mounting StyleChase Nipple
MpnSDSA3650
Nema Degree Of Protecti.NEMA 4X
Nema RatingIndoor
NEMA Rating4X
Nominal Discharge Curre.10 kA
Number of Wires4 Wires
Phase3, Three, 3 phase
Product Or Component Ty.Surge Protection Device
Protection TypeType 1 Surge Protection
Range Of ProductSurgelogic
Reach RegulationReference contains Subs.
SeriesSDSA Series, SDS
Short Circuit Current R.200kA
Short-Circuit Protection200 kA
SKUZO-G1789995
Special Featuresstatus LED green normal.
StandardUL 1449:ED. 4 TYPE I-NE.
Standards : UL 1449:ed..type I || CSA C22.2 No 8
Sub BrandQO
SubCategoryElectrical
Surge Current40 kA per phase
UNSPSC39121101
UPC785901210887
Upc78590121088
UPC Code785901210887
Voltage347/600V AC Wye
Voltage Configuration120/240, 120/208, 277/4.
Voltage Protection Rati.1800V (L-N), 3000V (L-L)
Voltage Rating600Y/347 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width3.6 in
Wire Gauge12 AWG
Wiring Configuration4-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00DJSAEXS138.491In Stock2SQUARE D BY SCHNEIDER ELECTRIC138.49 @ 1
thumbzoomZoroG1789995154.491238Square D1.7154.49 @ 1
thumbzoomindustrialrefrigerationparts.comSDSA3650169.851In StockSquare D2.0169.85 @ 1
thumbzoomsimsupply.comZO-G1789995182.93197Square D182.93 @ 1
thumbzoommidwestapplianceparts.comSDSA3650-SQ-P194.791In StockSquared194.79 @ 1
thumbzoomAmazonSCB075XMJVZ4213.171In StockSquare D213.17 @ 1
standardelectricsupply.com37030233.54111Square D233.54 @ 1
thumbzoomwilliamsautomation.comSDSA3650250.015SQUARE D250.0 @ 1
thumbzoommayerelectric.comSQDSDSA3650250.621In StockSQUARE D250.62 @ 1
thumbzoomgordonelectricsupply.comSDSA3650258.01In Stock10SQUARE D258.0 @ 1
thumbzoomsuperbreakers.comSDSA3650288.4177Square D288.4 @ 1
Graybar93145021302.38881In StockSquare D (Schneider Electric)302.3888 @ 1
thumbzoomcrescentelectric.com128265311.731574Square D by Schneider Electric311.73 @ 1
us.rs-online.com70060777365.151141Square D365.15 @ 1
thumbzoomRaptor SuppliesAG6QEG379.28445751In StockSQUARE D379.2844575 @ 1
thumbzoomNewark16B2309427.0615SQUARE D BY SCHNEIDER ELECTRIC427.06 @ 1
RS Delivers815-3278464.821In StockSchneider Electric464.82 @ 1
thumbzoomkempstoncontrols.co.ukSDSA3650472.71726451In StockSchneider472.7172645 @ 1
