| California Proposition 65 : WARNING: This product can expose you to chemicals including | Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Depth | 5.09 in |
| Electrical Connection | screw clamp terminals |
| Environmental Disclosure | ENVPEP1308008EN |
| Eu Rohs Directive | Compliant |
| Height | 3.8 in |
| Insulation Temperature | 130 ?C |
| Material | copper winding |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Nema Degree Of Protection | not rated (open device) |
| Phase | 1 phase |
| Product Certifications | CSA file LR37055 guide 184-N-90 || UL listed file E61239 |
| Product Compatibility | FSC2 |

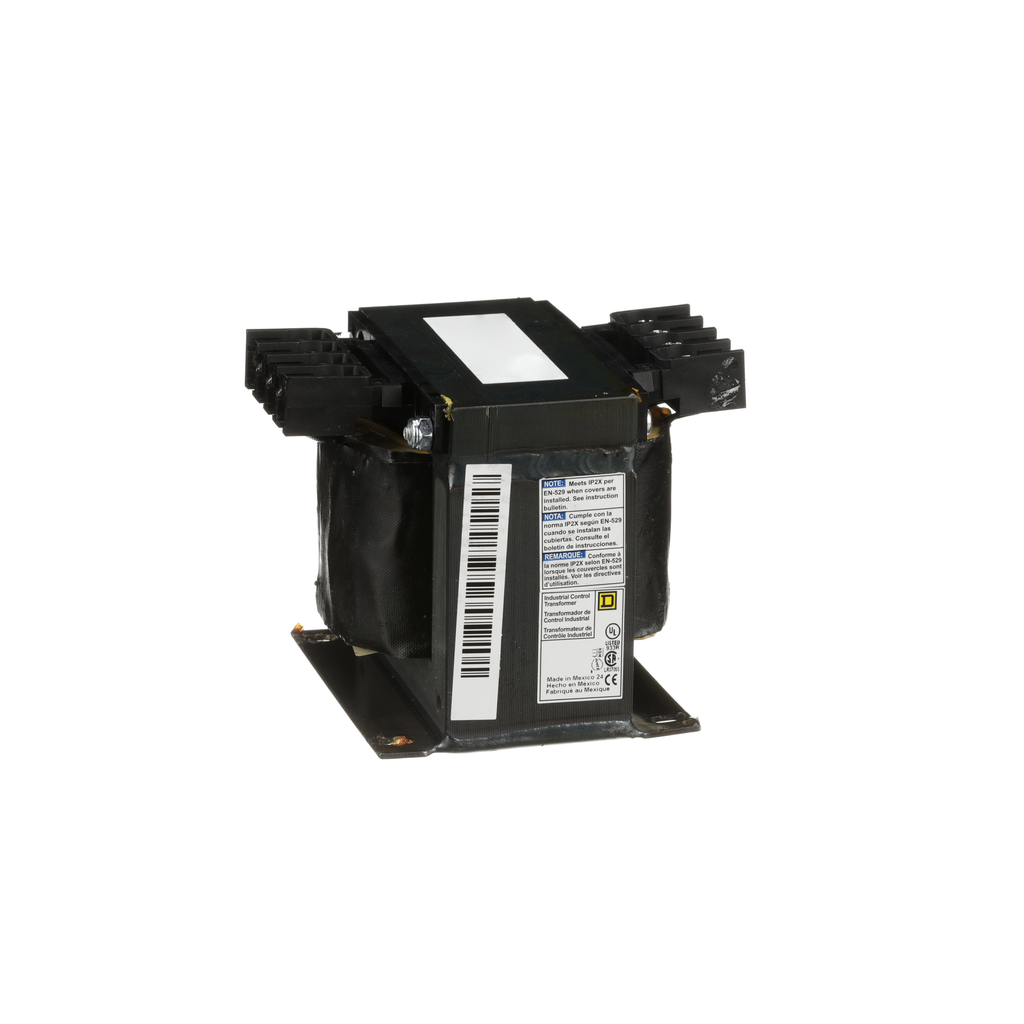

| Product Or Component Type | Industrial Control Transformer |
| Range Of Product | T |
| Rated Power In Va | 350 VA, 350 VA UL || 350 VA CSA || 350 VA NOM || 250 VA |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Temperature Rise | 80 ?C |
| Warranty | 10 Years |
| Width | 4.5 in |
