| [Us] Rated Supply Voltage | 380...480 V - 15...10 %, 380...480 V |
| Acceleration And Deceleration Ramps | linear adjustable separately from 0.01...9999 s |
| Accuracy | +/- 1 % AO1, AO2 for a temperature variation 60 ?C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input |
| Ambient Air Temperature For Operation | 40-50 ?C with derating factor) || -15-40 ?C without derating) |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Analogue Input Number, Pollution Degree, Relay Output Number | 3 |
| Analogue Input Type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits |
| Analogue Output Number | 2 |
| Analogue Output Type | software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA |
| Apparent Power | 3.3 kVA 480 V heavy duty) || 4.2 kVA 480 V normal duty) |
| Asynchronous Motor Control Profile | constant torque standard || variable torque standard || optimized torque mode |
| Braking To Standstill | by DC injection |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1508009EN |
| Communication Port Protocol | Modbus serial || Modbus TCP || Ethernet |
| Connector Type | RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP |
| Continuous Output Current | 5.6 A 4 kHz heavy duty || 7.2 A 4 kHz normal duty |
| Data Format | 8 bits, configurable odd, even or no parity |
| Degree Of Protection | UL type 12 UL 508C |
| Depth | 272 mm |

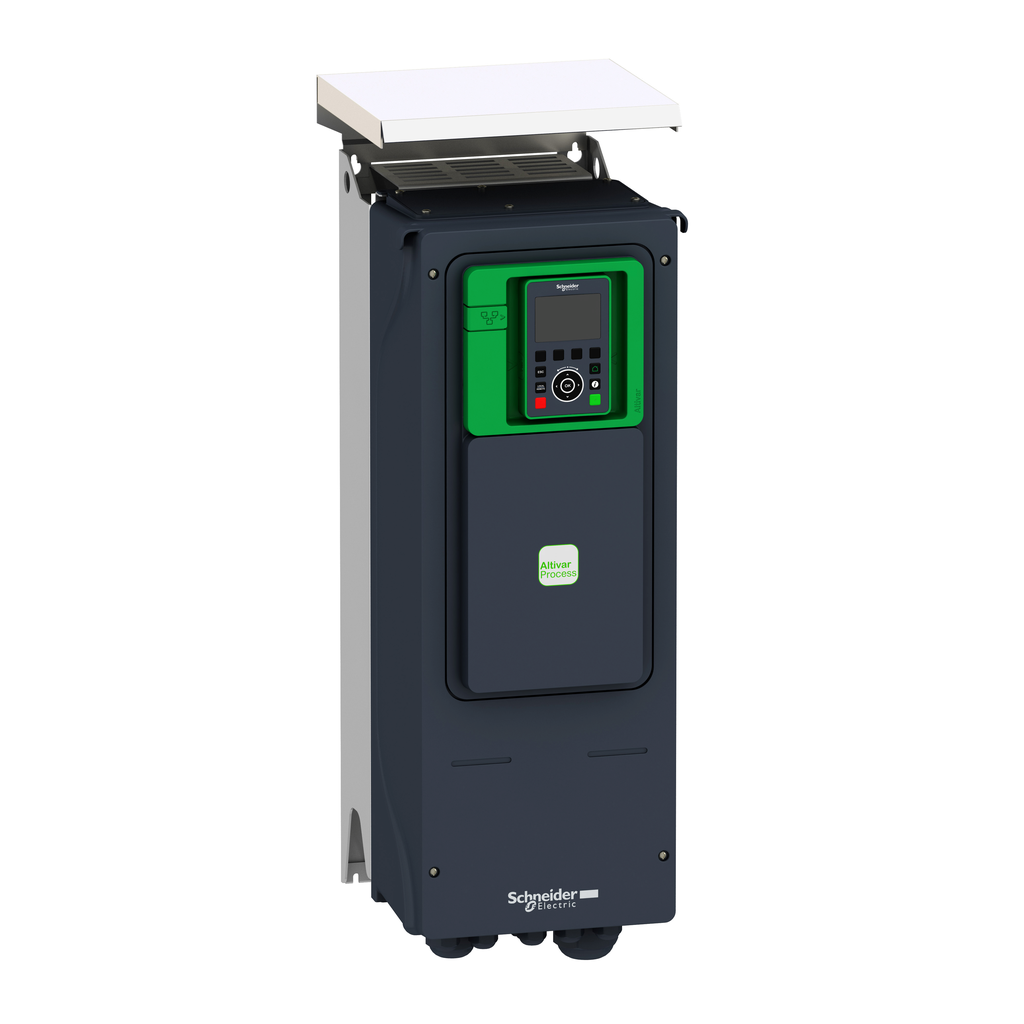

| Device Short Name | ATV650 |
| Discrete Input Logic | 16 preset speeds |
| Discrete Input Number | 8 |
| Discrete Output Number | 0 |
| Discrete Output Type | relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA |
| Electrical Connection | line side screw terminal 4...6 mm? || motor screw terminal 4...6 mm? || control removable screw terminals 0.5...1.5 mm? AWG 20...AWG 16 |
| Electromagnetic Compatibility | radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 ?s - 8/20 ?s surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || electrostatic discharge immunity test level 3 IEC 61000-4-2 |
| Emc Filter | integrated 50 m EN/IEC 61800-3 category C2 || integrated 150 m EN/IEC 61800-3 category C3 |
| Enclosure Mounting | wall mounted |
| Environmental Disclosure | ENVPEP1508009EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Frequency Resolution | analog input 0.012/50 Hz || display unit 0.1 Hz |
| Height | 678 mm |
| Input Compatibility | DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 || DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 |
| Insulation Resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Ip Degree Of Protection | IP55IEC 60529 || IP55IEC 61800-5-1 |
| Isolation | between power and control terminals |
| Line Current | 5.1 A 480 V normal duty) || 4.5 A 380 V heavy duty) || 4 A 480 V heavy duty) || 5.8 A 380 V normal duty) |
| Linearity Error | AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input |
| Local Signalling | for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs |
| Marking | CE |
| Maximum Horse Power Rating | 4 hp normal duty || 3 hp heavy duty |
| Maximum Output Frequency | 500 kHz |
| Maximum Switching Current | relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC |
| Maximum Transient Current | 7.9 A 60 s normal duty) || 8.4 A 60 s heavy duty) |
| Mercury Free, Rohs Exemption Information | Yes |
| Method Of Access | slave Modbus TCP |
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
| Motor Power Kw | 2.2 kW heavy duty) || 3 kW normal duty) |
| Motor Slip Compensation | not available in permanent magnet motor law || adjustable || automatic whatever the load |
| Mounting Mode | wall mount |
| Net Weight | 10.6 kg |
| Noise Level | 52 dB 86/188/EEC, 52 dB |
| Nominal Switching Frequency | 4 kHz |
| Number Of Addresses | 1-247 Modbus serial |
| Option Card | slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink || slot A communication module, Profibus DP V1 |
| Permissible Temporary Current Boost | 1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty) |
| Phase | 3 phase |
| Physical Interface | Ethernet || 2-wire RS 485 |
| Pollution Degree | 2 EN/IEC 61800-5-1 |
| Product Certifications | DNV-GL || CSA || ABS || T?V || ATEX INERIS || UL |
| Product Destination | synchronous motors |
| Product Or Component Type | variable speed drive |
| Product Specific Application | process and utilities |
| Prospective Line Isc | 50 kA |
| Protection Type | safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive || thermal protection motor |
| Quantity Per Set | 1 |
| Range Of Product | Altivar Process ATV600 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Regulation Loop | adjustable PID regulator |
| Relative Humidity | 5-95 % without condensation IEC 60068-2-3 |
| Relay Output Type | configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles |
| Safety Function | STO (safe torque off) SIL 3 |
| Sampling Duration | 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Speed Drive Output Frequency | 0.1-500 Hz |
| Standards | EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C, environment 1 category C2 EN/IEC 61800-3 || environment 2 category C3 EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Sustainable Offer Status | Green Premium product |
| Switching Frequency | 4...12 kHz with derating factor || 2...12 kHz adjustable |
| Synchronous Motor Control Profile | synchronous reluctance motor || permanent magnet motor |
| Transmission Frame | RTU |
| Transmission Rate | 10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| Type Of Cooling | forced convection |
| Type Of Polarization | no impedance |
| Upgradeability | Upgraded components available |
| Variant | standard version |
| Vibration Resistance | 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 264 mm |
