| 4 Quadrant Operation Possible, Brake Chopper Integrated, With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Stop 1 (Ss1), With Safety Function Safe Torque Off (Sto), With Safety Function Safely Limited Speed (Sls) | true |
| [Us] Rated Supply Voltage | 380...480 V - 15...10 % |
| Acceleration And Deceleration Ramps | linear adjustable separately from 0.01...9999 s |
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 ?C analog output |
| Analogue Input Number, Relay Output Number | 3 |
| Analogue Input Type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits |
| Analogue Output Number, Discrete Output Number | 2 |
| Analogue Output Type | software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits |
| Apparent Power | 93.7 kVA 480 V normal duty) || 72.2 kVA 480 V heavy duty) |
| Asynchronous Motor Control Profile | variable torque standard || optimized torque mode || constant torque standard |
| Base Load Current At High Overload | 106.0 A |
| Base Load Current At Low Overload | 145.0 A |
| Braking To Standstill | by DC injection |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2007013EN |
| Communication Port Protocol | Modbus TCP || Modbus serial || EtherNet/IP |
| Connector Type | 2 RJ45 || 1 RJ45 |
| Continuous Output Current | 145 A 2.5 kHz normal duty || 106 A 2.5 kHz heavy duty |
| Data Format | 8 bits, configurable odd, even or no parity Modbus serial, 8 bits, configurable odd, even or no parity |
| Degree Of Protection | UL type 12 |
| Depth | 307 mm |
| Device Application | Industrial Application |
| Discrete Input Logic | 16 preset speeds |
| Discrete Input Number | 10 |
| Electrical Connection | control screw terminal 0.5...1.5 mm? AWG 20...AWG 16 || DC bus screw terminal 70...120 mm? AWG 1/0...250 kcmil || line side screw terminal 95...120 mm? AWG 3/0...250 kcmil || motor screw terminal 95...120 mm? AWG 3/0...250 kcmil |
| Emc Filter | integrated || with EMC plate option |
| Environmental Disclosure | ENVPEP2007013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Height | 748 mm |
| Input Compatibility | DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 |
| Ip Degree Of Protection | IP21 |
| Isolation | between power and control terminals |
| Line Current | 131.3 A 380 V normal duty) || 98.9 A 380 V heavy duty) || 112.7 A 480 V normal duty) || 86.9 A 480 V heavy duty) |
| Linearity Error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output |
| Local Signalling | local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red) |
| Maximum Acceleration Under Shock Impact (During Operation) | 150 m/s? at 11 ms |
| Maximum Deflection Under Vibratory Load (During Operation) | 1.5 mm at 2...13 Hz |
| Maximum Horse Power Rating | 100.0 hp normal duty || 75.0 hp heavy duty |
| Maximum Output Frequency | 599 Hz |
| Maximum Output Voltage | 480.0 V |
| Maximum Switching Current | relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC |
| Maximum Transient Current | 174 A 60 s normal duty) || 159 A 60 s heavy duty) |
| Mercury Free, Rohs Exemption Information | Yes |
| Method Of Access | slave Modbus TCP |
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
| Motor Power Kw | 75.0 kW normal duty || 55.0 kW heavy duty |
| Motor Slip Compensation | not available in permanent magnet motor law || adjustable || automatic whatever the load || can be suppressed |
| Mounting Mode | cabinet mount |
| Network Frequency | 50-60 Hz |
| Nominal Switching Frequency | 2.5 kHz |
| Number Of Addresses | 1-247 Modbus serial, 1-247 |
| Option Card | slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module CANopen SUB-D 9 || slot A communication module CANopen screw terminals || slot A/slot B/slot C digital and analog I/O extension module || slot A/slot B/slot C output relay extension module || slot B 5/12 V digital encoder interface module || slot B analog encoder interface module || slot B resolver encoder interface module || communication module Ethernet Powerlink |
| Phase | 3 phase |
| Physical Interface | Ethernet || 2-wire RS 485 |
| Power Dissipation In W | natural convection 174 W 380 V 2.5 kHz || forced convection 1369 W 380 V 2.5 kHz |
| Product Certifications | UL || CSA || T?V |
| Product Destination | synchronous motors || asynchronous motors |
| Product Or Component Type | variable speed drive |
| Product Specific Application | process for industrial |
| Prospective Line Isc | 50 kA |
| Protection Type | thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive |
| Quantity Per Set | 1 |

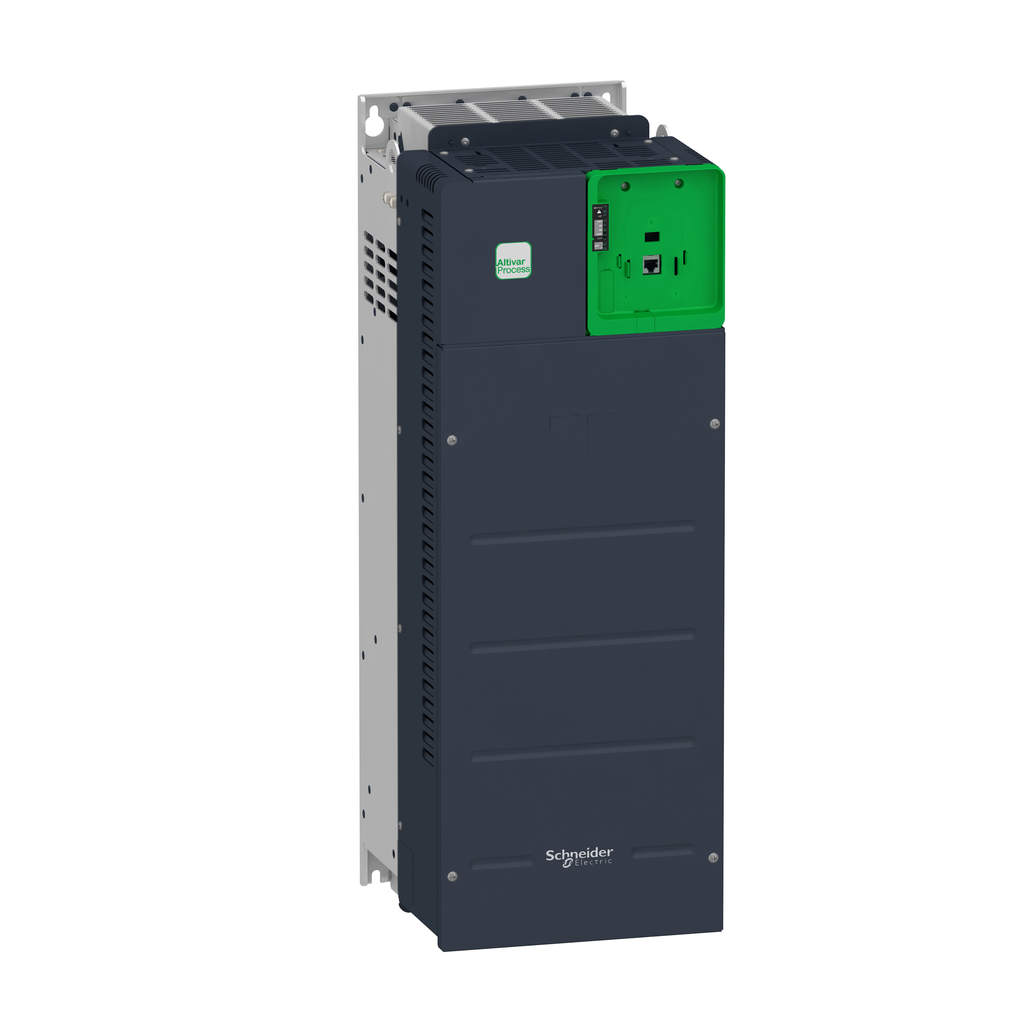

| Range Of Product | Altivar Process ATV900 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles |
| Sampling Duration | 2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output |
| Sustainable Offer Status | Green Premium product |
| Switching Frequency | 1...8 kHz adjustable || 2.5...8 kHz with derating factor |
| Synchronous Motor Control Profile | permanent magnet motor || synchronous reluctance motor |
| Transmission Frame | RTU |
| Transmission Rate | 10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s, 10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial |
| Type Of Polarization | no impedance Modbus serial, no impedance |
| Upgradeability | Upgraded components available |
| Variant | standard version || with braking chopper |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 265 mm |
| With Safety Function Safe Direction (Sdi), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Position (Sp), With Safety Function Safe Programmable Logic, With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safely Limited Position (Slp), With Sft Fct Safe Stop 2 (Ss2) | false |
