| [Us] Rated Supply Voltage | 240 V |
| Back Emf Constant | 31.17 V/krpm 120 ?C |
| Brake Pull-In Power | 7 W |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 2.5 mm |
| Centring Collar Diameter | 60 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Continuous Power | 1.05 W |
| Continuous Stall Current | 2.85 A |
| Continuous Stall Torque | 1.4 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.4 N.m LXM32.D18M2 6 A, 115 V, single phase |
| Device Short Name | BMH |
| Electrical Connection | rotatable right-angled connectors |
| Environmental Disclosure | ENVPEP111002EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | multiturn SinCos Hiperface |
| Holding Brake | with |
| Holding Torque | 3 N.m holding brake |
| Ip Degree Of Protection | IP54 standard |
| Key Width | 18 mm |
| Length | 161 mm |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Current Irms | 9.6 A LXM32.D18M2 || 9.6 A LXM32.U90M2 |
| Maximum Mechanical Speed | 8000 rpm |
| Maximum Permanent Current | 9.56 A |
| Maximum Radial Force Fr | 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm |
| Mercury Free | Yes |
| Motor Flange Size | 70 mm |
| Mounting Holes Diameter | 5.5 mm |
| Mounting Support | international standard flange |
| Net Weight | 2.6 kg |
| Nominal Output Power | 450 W LXM32.U90M2 3 A, 230 V, single phase || 350 W LXM32.D18M2 6 A, 115 V, single phase |
| Nominal Speed | 4000 rpm LXM32.U90M2 3 A, 230 V, single phase || 2500 rpm LXM32.D18M2 6 A, 115 V, single phase |
| Nominal Torque | 1.1 N.m LXM32.U90M2 3 A, 230 V, single phase || 1.35 N.m LXM32.D18M2 6 A, 115 V, single phase |
| Number Of Motor Poles | 10 |
| Number Of Motor Stacks | 1 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 4 N.m LXM32.U90M2 3 A, 230 V, single phase || 4.2 N.m LXM32.D18M2 6 A, 115 V, single phase |
| Phase | three phase |
| Product Compatibility | LXM32.D18M2 115 V single phase || LXM32.U90M2 230 V single phase |

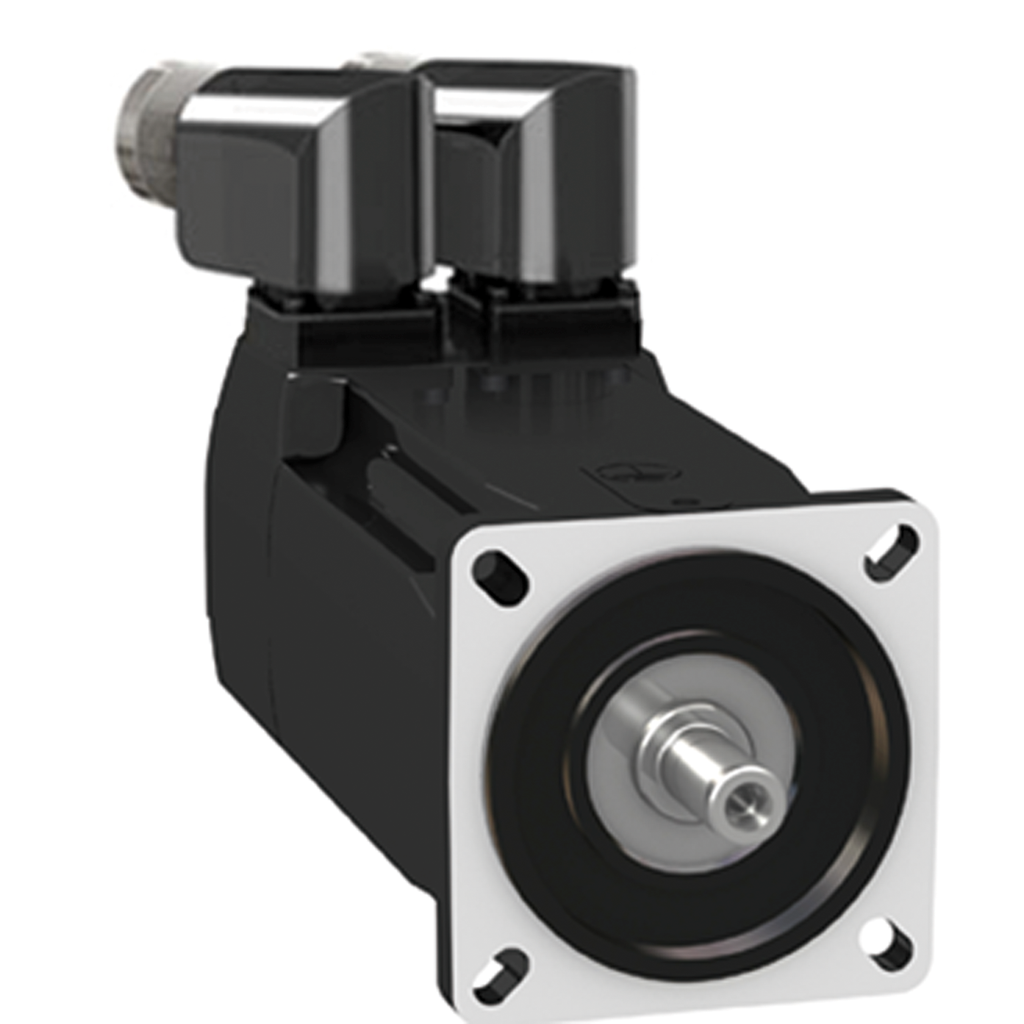

| Product Or Component Type | servo motor |
| Pvc Free | Yes |
| Range Compatibility | Lexium 32 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Rotor Inertia | 0.7 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 11 mm |
| Shaft End | keyed |
| Shaft Length | 23 mm |
| Speed Feedback Resolution | 32768 points/turn x 4096 turns |
| Stator Electrical Time Constant | 2.8 ms 20 ?C |
| Stator Inductance | 9.1 mH 20 ?C |
| Stator Resistance | 3.2 Ohm 20 ?C |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 0.49 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
