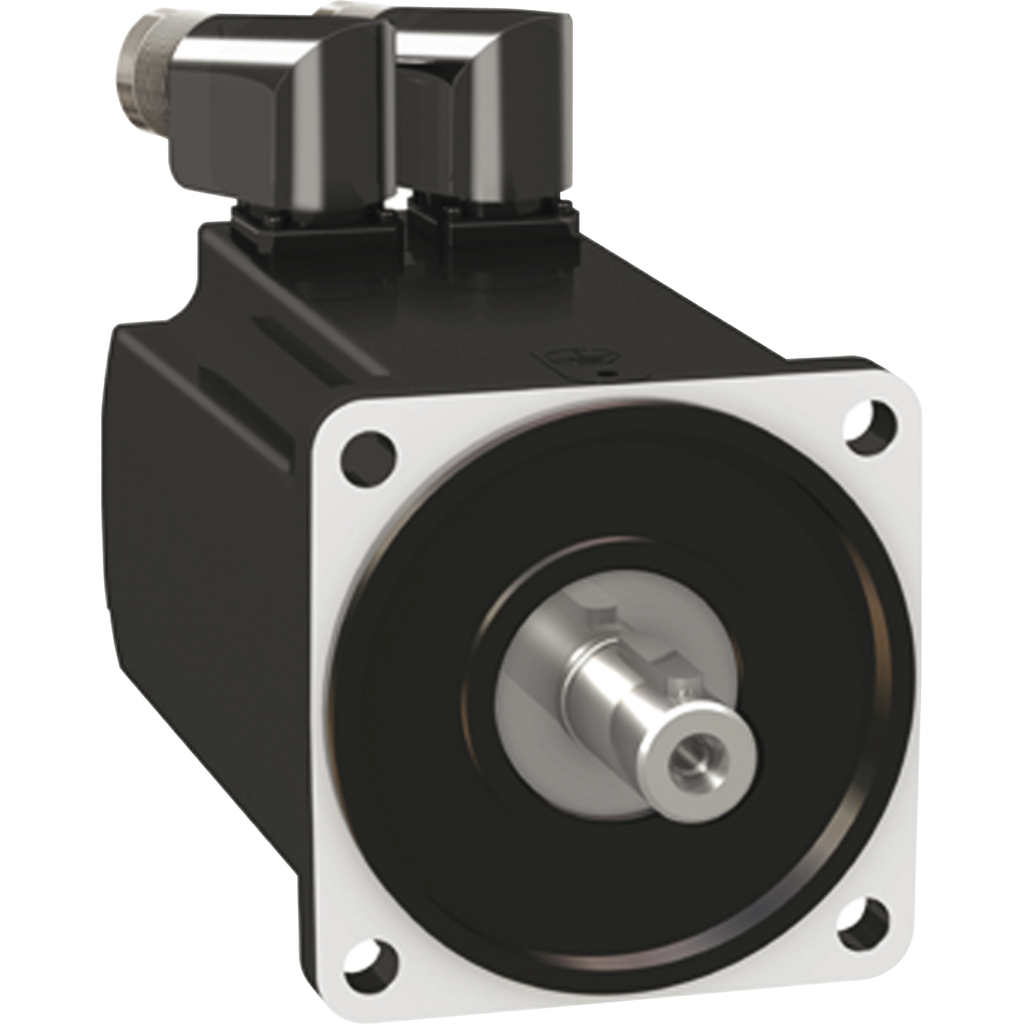

SQUARE D SQDBMH1002T06A2A
SQUARE Dzoom
brand:
manufacturer:

Attributes

Key ^Value
[Us] Rated Supply Voltage240 V
Back Emf Constant46.2 V/krpm 120 ?C
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Centring Collar Depth3.5 mm
Centring Collar Diameter95 mm
China Rohs RegulationX
Circle Diameter Of The Mounting Holes115 mm
Continuous Power2.39 W
Continuous Stall Current8.65 A
Continuous Stall Torque6 N.m LXM32.D30M2 10 A, 115 V, single phase || 6 N.m LXM32.D30M2 10 A, 230 V, single phase
Device Short NameBMH
Electrical Connectionrotatable right-angled connectors
Environmental DisclosureENVPEP111002EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Feedback Typesingle turn SinCos Hiperface
Holding Brakewithout
Ip Degree Of ProtectionIP54 standard
Length160.6 mm
Maximum Axial Force Fa0.2 x Fr
Maximum Current Irms15 A LXM32.D30M2 115 V || 30 A LXM32.D30M2 230 V
Maximum Mechanical Speed6000 rpm
Maximum Permanent Current30.24 A
Maximum Radial Force Fr990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm
Mercury Free, Pvc Free, Rohs Exemption InformationYes
Motor Flange Size100 mm
Mounting Holes Diameter9 mm
Mounting Supportinternational standard flange
Net Weight4.92 kg
Nominal Output Power750 W LXM32.D30M2 10 A, 115 V, single phase || 1450 W LXM32.D30M2 10 A, 230 V, single phase
Nominal Speed2000 rpm LXM32.D30M2 10 A, 115 V, single phase || 3000 rpm LXM32.D30M2 10 A, 230 V, single phase
Nominal Torque3.5 N.m LXM32.D30M2 10 A, 115 V, single phase || 4.6 N.m LXM32.D30M2 10 A, 230 V, single phase
Number Of Motor Poles10
Number Of Motor Stacks2
Number Of Mounting Holes4
Peak Stall Torque10.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 18.4 N.m LXM32.D30M2 10 A, 230 V, single phase
Phasethree phase
Product CompatibilityLXM32.D30M2 115 V single phase || LXM32.D30M2 230 V single phase
Product Or Component Typeservo motor
Range CompatibilityLexium 32
Reach RegulationReference contains Substances of Very High Concern above the threshold
Rotor Inertia6.28 kg.cm?
Second Shaftwithout second shaft end
Shaft Diameter19 mm
Shaft Endsmooth shaft
Shaft Length40 mm
Speed Feedback Resolution32768 points/turn
Stator Electrical Time Constant5 ms 20 ?C
Stator Inductance2.7 mH 20 ?C
Stator Resistance0.54 Ohm 20 ?C
Sustainable Offer StatusGreen Premium product
Torque Constant0.72 N.m/A 120 ?C
Type Of Coolingnatural convection
Warranty18 months
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
