| [Us] Rated Supply Voltage | 480 V |
| Back Emf Constant | 218 V/krpm 120 ?C |
| Brake Pull-In Power | 40 W |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 4 mm |
| Centring Collar Diameter | 180 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 215 mm |
| Continuous Power | 9.6 W |
| Continuous Stall Current | 25.2 A |
| Continuous Stall Torque | 84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Device Short Name | BMH |
| Electrical Connection | straight connectors |
| Environmental Disclosure | ENVPEP111049EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | multiturn SinCos Hiperface |
| Holding Brake | with |
| Holding Torque | 80 N.m holding brake |
| Ip Degree Of Protection | IP54 standard |
| Length | 538.5 mm |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Current Irms | 72 A LXM32.D72N4 |
| Maximum Mechanical Speed | 3800 rpm |
| Maximum Permanent Current | 107.4 A |
| Maximum Radial Force Fr | 4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Motor Flange Size | 205 mm |
| Mounting Holes Diameter | 14 mm |
| Mounting Support | international standard flange |
| Net Weight | 71.9 kg |
| Nominal Output Power | 6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase |
| Nominal Speed | 1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase |
| Nominal Torque | 52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Number Of Motor Poles | 10 |
| Number Of Motor Stacks | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase |
| Phase | three phase |
| Product Compatibility | LXM32.D72N4 400...480 V three phase |

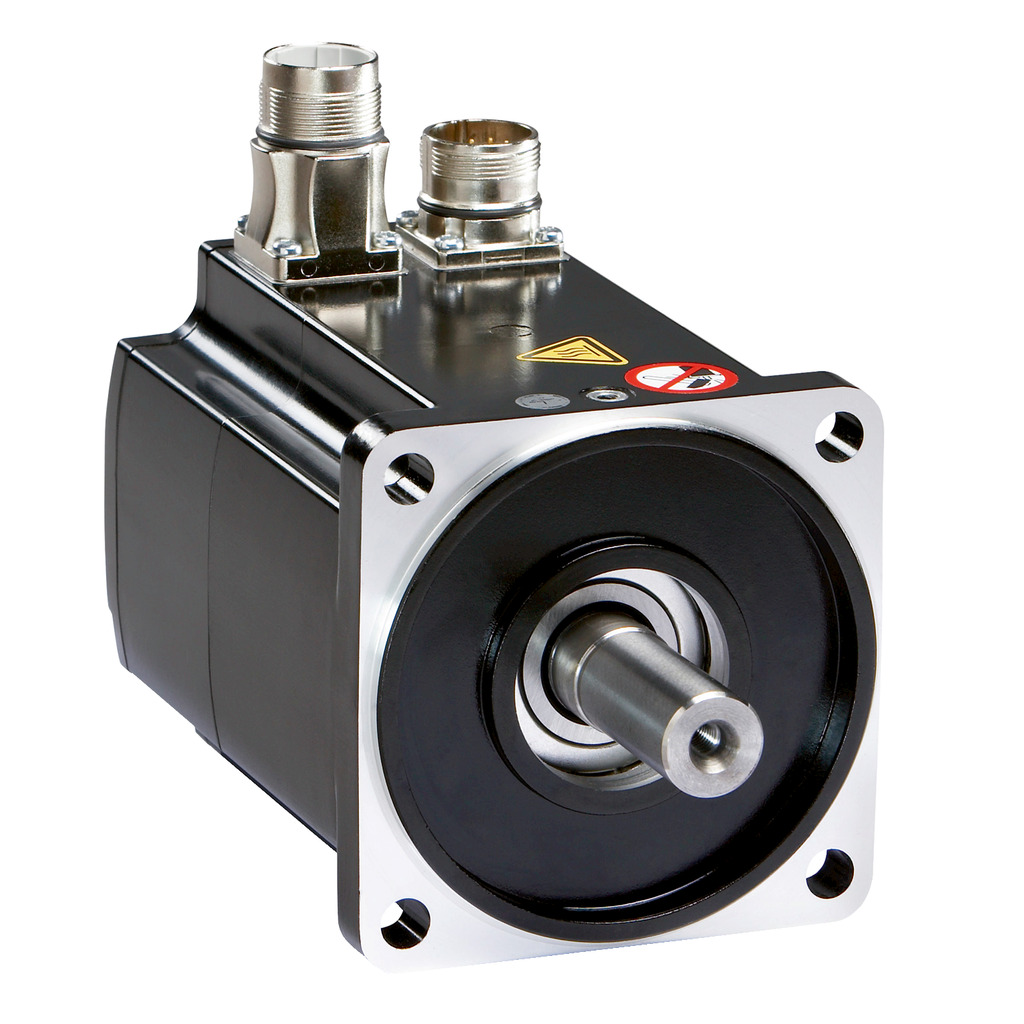

| Product Or Component Type | servo motor |
| Range Compatibility | Lexium 32 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rotor Inertia | 206 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 38 mm |
| Shaft End | smooth shaft |
| Shaft Length | 80 mm |
| Speed Feedback Resolution | 131072 points/turn x 4096 turns |
| Stator Electrical Time Constant | 21.6 ms 20 ?C |
| Stator Inductance | 6.9 mH 20 ?C |
| Stator Resistance | 0.32 Ohm 20 ?C |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 3.5 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
