| [Us] Rated Supply Voltage | 250...700 V |
| Back Emf Constant | 48 V/krpm 20 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 2.5 mm |
| Centring Collar Diameter | 60 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Circularity Profile | ENVEOLI1409011EN |
| Continuous Stall Current | 2.5 A |
| Continuous Stall Torque | 1.7 N.m |
| Device Short Name | ILM |
| Environmental Disclosure | ENVPEP1409011EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | absolute single turn SinCos Hiperface |
| Holding Brake | with |
| Holding Torque | 3 N.m holding brake |
| Ip Degree Of Protection | IP54 |
| Key Width | 18 mm |
| Length | 252 mm |
| Line Rated Current | 1.5 A |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Current Irms | 11.8 A |
| Maximum Radial Force Fr | 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Motor Flange Size | 70 mm |
| Mounting Holes Diameter | 5.5 mm |
| Mounting Support | international standard flange |
| Net Weight | 3.7 kg |
| Nominal Output Power | 720 W |
| Nominal Speed | 6000 rpm |
| Nominal Torque | 1.15 N.m |
| Number Of Motor Poles | 6 |
| Number Of Motor Stacks | 2 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 7.6 N.m |

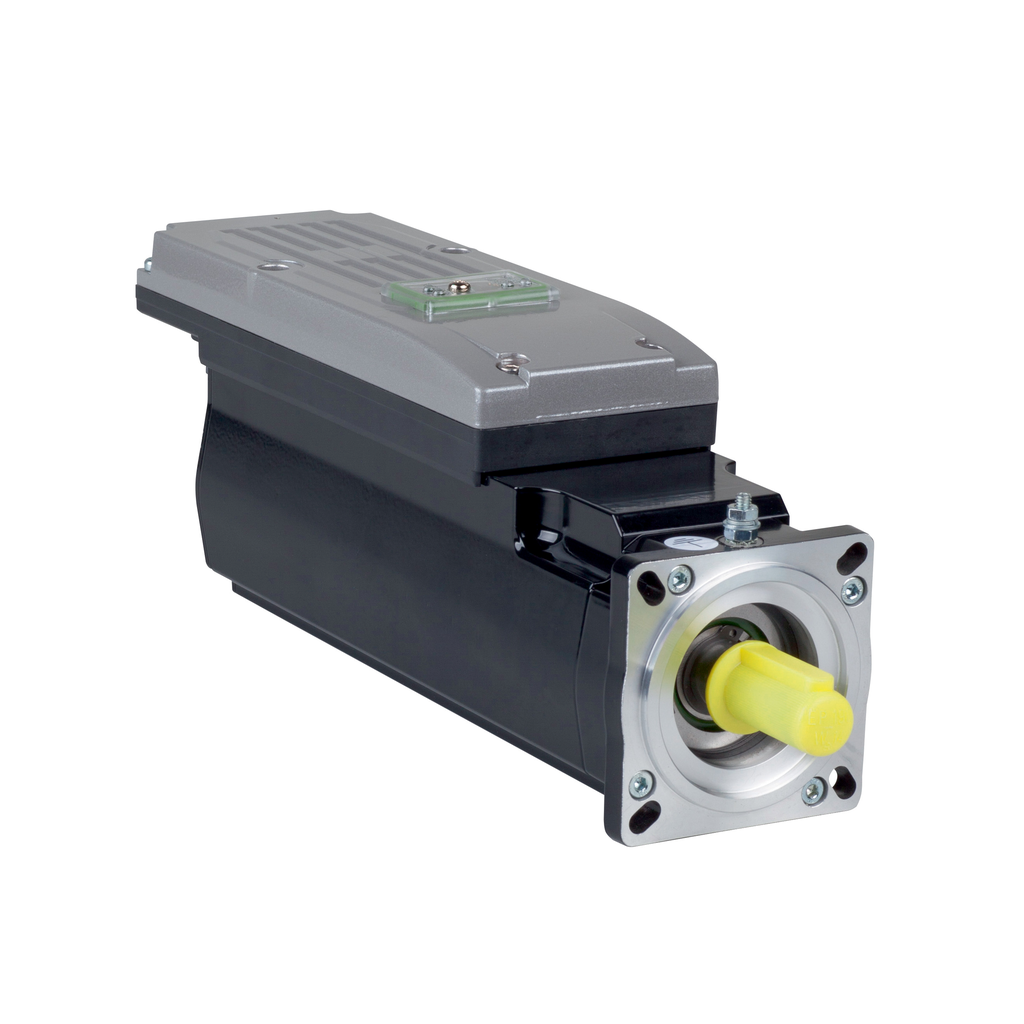

| Product Or Component Type | servo motor integrated drive |
| Range Of Product | PacDrive 3 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Rotor Inertia | 0.51 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 11 mm |
| Shaft End | keyed |
| Shaft Length | 23 mm |
| Speed Feedback Resolution | 128 periods |
| Stator Inductance | 19 mH 20 ?C Ph/Ph || 9.5 mH 120 ?C Ph/N |
| Stator Resistance | 4.2 Ohm 20 ?C Ph/Ph || 2.92 Ohm 120 ?C Ph/N |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 0.76 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
