| [Us] Rated Supply Voltage | 250...700 V |
| Back Emf Constant | 100 V/krpm 20 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 3.5 mm |
| Centring Collar Diameter | 95 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 115 mm |
| Circularity Profile | ENVEOLI1409011EN |
| Continuous Stall Current | 2.9 A |
| Continuous Stall Torque | 4.4 N.m |
| Device Short Name | ILM |
| Environmental Disclosure | ENVPEP1409011EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | absolute multiturn SinCos Hiperface |
| Holding Brake | without |
| Ip Degree Of Protection | IP65 |
| Key Width | 30 mm |
| Length | 249 mm |
| Line Rated Current | 2 A |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Current Irms | 13.1 A |
| Maximum Radial Force Fr | 990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Motor Flange Size | 100 mm |
| Mounting Holes Diameter | 9 mm |
| Mounting Support | international standard flange |
| Net Weight | 6.4 kg |
| Nominal Output Power | 910 W |
| Nominal Speed | 3000 rpm |
| Nominal Torque | 2.9 N.m |
| Number Of Motor Poles | 8 |
| Number Of Motor Stacks | 2 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 18.3 N.m |

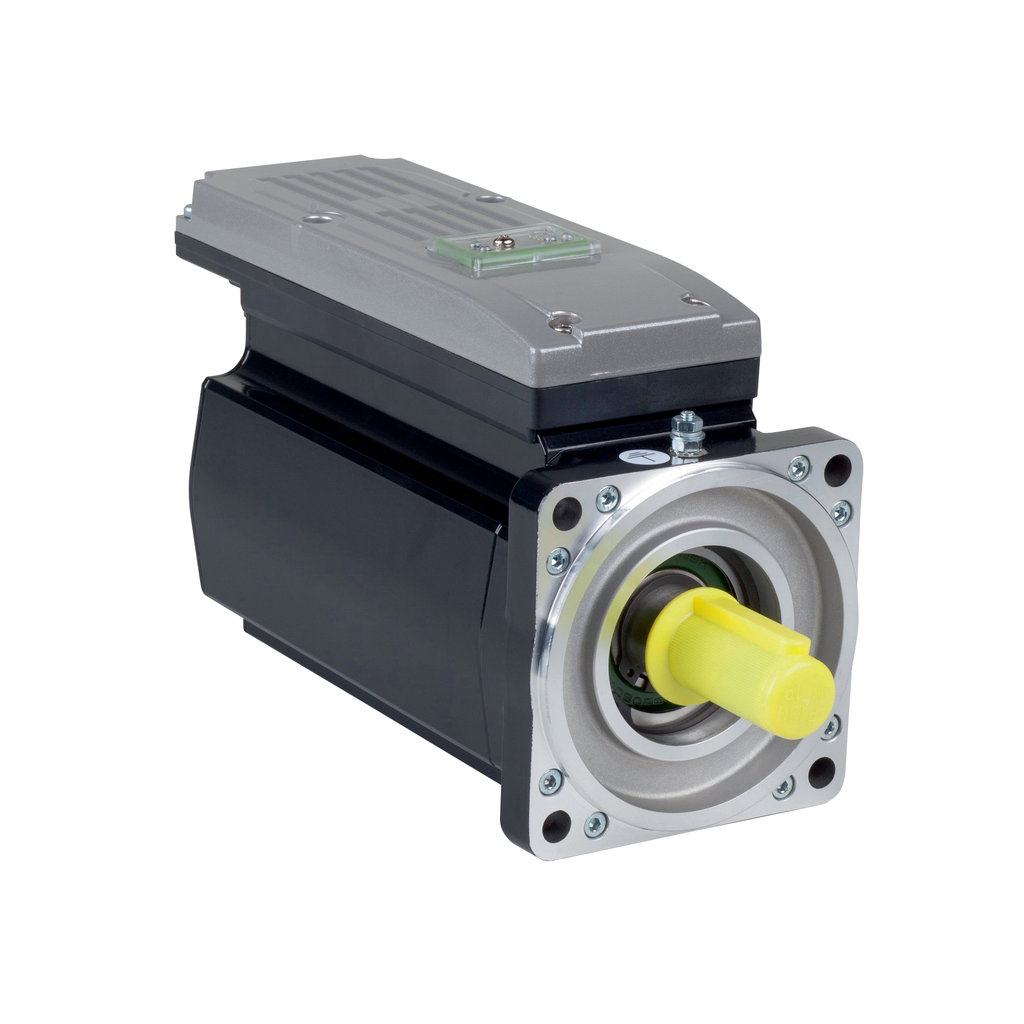

| Product Or Component Type | servo motor integrated drive |
| Range Of Product | PacDrive 3 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Rotor Inertia | 2.31 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 19 mm |
| Shaft End | keyed |
| Shaft Length | 40 mm |
| Speed Feedback Resolution | 128 periods |
| Stator Inductance | 21.8 mH 20 ?C Ph/Ph || 10.9 mH 120 ?C Ph/N |
| Stator Resistance | 4.12 Ohm 20 ?C Ph/Ph || 2.86 Ohm 120 ?C Ph/N |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 1.52 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
