| [Us] Rated Supply Voltage | 120 V AC 60 Hz |
| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | -40-70 ?C |
| Analogue Input Type | 24 solid core CT 80 mA single pole || 12 solid core CT 80 mA single phase || 8 solid core CT 80 mA three phase |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Communication Of Data | negative active energy || positive active energy || voltage || positive reactive energy || apparent energy || negative reactive energy |
| Communication Port Protocol | BACnet IP || FTP || HTTP || Modbus TCP/IP || SNTP |
| Communication Port Support | RJ45 Ethernet || RS485 |
| Depth | 5.5 cm |
| Device Application | sub billing |
| Device Mounting | wall mounted |
| Device Short Name | EM4080 |
| Display Type | Backlit LCD |
| Enclosure Type | NEMA type 1 |
| Energy Management | sub billing and cost allocation || billing analysis |
| Eu Rohs Directive | Compliant |
| Height | 33.5 cm |
| Measurement Accuracy | +/- 0.5 % of the measuring range |
| Measurement Voltage | 80-480 V without PTs || 480-999000 V with external PTs |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Messages Display Capacity | 2 lines of 16 characters |
| Mounting Mode | wall mount |
| Net Weight | 4 kg |
| Network Frequency | 60 Hz |
| Number Of Inputs | 2 pulse |
| Pollution Degree | 2 |
| Power Monitoring | basic instrumentation |
| Power Quality Analysis | compliance monitoring |
| Product Certifications | UL |

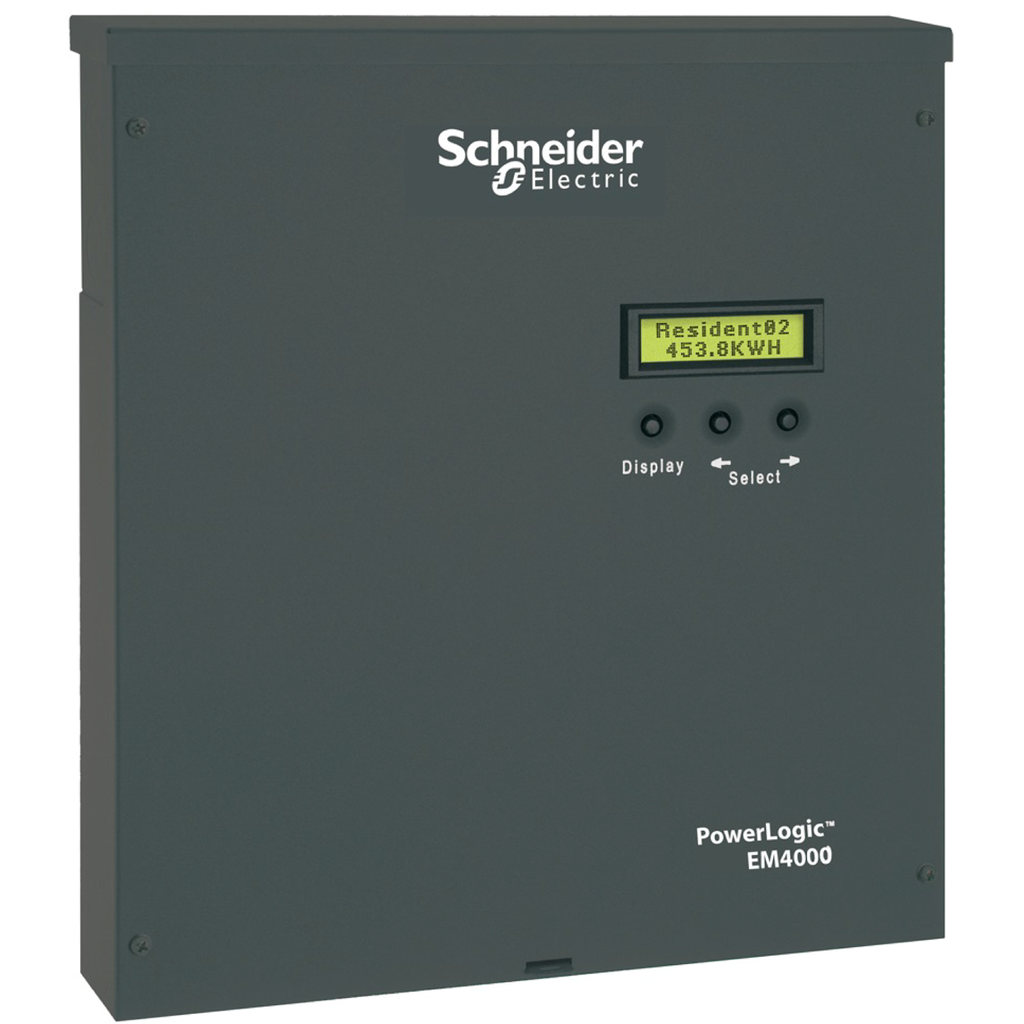

| Product Name | PowerLogic EM4000 |
| Product Or Component Type | multi-circuit energy meter |
| Range | PowerLogic |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 90-90 % 40-40 ?C |
| Sampling Rate | 256 samples/cycle |
| Standards : IEC 6100-4-5 || ICES-003 || FCC Part 15 class B || CSA C22.2 No 61010-1 || EN 55022 || ANSI/TIA-968-A | 2002 || CSA C22.2 No 61010-1-4 |
| Type Of Installation | enclosed outdoor || indoor installation |
| Type Of Measurement | current per phase, rms || negative active energy || voltage per phase, rms || negative reactive energy || apparent energy || pulse count || active and reactive power || apparent power || positive active energy || positive reactive energy |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 30.5 cm |
