| [Us] Rated Supply Voltage | 115...480 V |
| Back Emf Constant | 54.08 V/krpm |
| Brake Pull-In Power | 7 W |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 2.5 mm |
| Centring Collar Diameter | 60 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Continuous Power | 1380 W |
| Continuous Stall Current | 2.94 A |
| Continuous Stall Torque | 2.48 N.m, 115...480 V, three phase |
| Device Short Name | MH3 |
| Electrical Connection | rotatable right-angled connectors |
| Encoder Type | multiturn SinCos Hiperface |
| Environmental Disclosure | ENVPEP111002EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Holding Brake | with |
| Holding Torque | 3 N.m |
| Ip Degree Of Protection | IP65 standard |
| Length | 193 mm |
| Maximum Current Irms | 9.68 A |
| Maximum Mechanical Speed | 8000 rpm |
| Maximum Radial Force Fr | 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Motor Flange Size | 70 mm |
| Mounting Holes Diameter | 5.5 mm |
| Mounting Support | international standard flange |
| Net Weight | 3.3 kg |
| Nominal Output Power | 0.31 W, 115 V || 0.7 W, 230 V || 1.16 W, 400 V || 1.38 W, 480 V |
| Nominal Speed | 1250 rpm, 115 V || 3000 rpm, 230 V || 5500 rpm, 400 V || 7000 rpm, 480 V |
| Nominal Torque | 2.37 N.m, 115 V || 2.23 N.m, 230 V || 2.01 N.m, 400 V || 1.89 N.m, 480 V |
| Number Of Motor Poles | 10 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 7.4 N.m, 115...480 V, three phase |
| Phase | three phase |

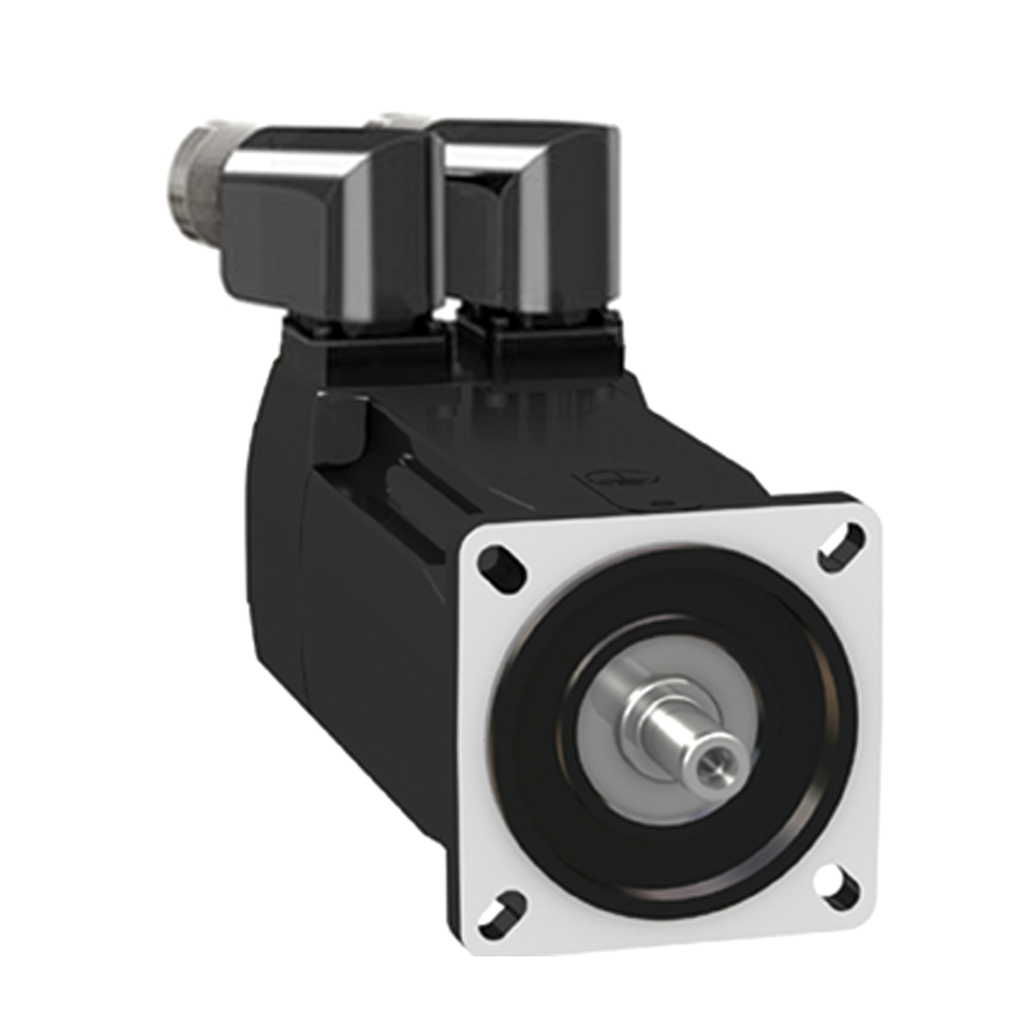

| Product Or Component Type | AC servo motors |
| Range Compatibility | PacDrive 3 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rotor Inertia | 1.24 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 11 mm |
| Shaft End | smooth shaft |
| Shaft Length | 23 mm |
| Speed Feedback Resolution | 128 periods |
| Stator Electrical Time Constant | 3.2 ms |
| Stator Inductance | 12.19 mH |
| Stator Resistance | 3.84 Ohm |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 0.84 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
