| Accessory / Separate Part Category | mounting accessory |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Color | Gray RAL 7035) |
| Device Application | multi-purpose |
| Environmental Disclosure | ENVPEP100104EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | screwed on backstuds M8 || by fixing element |
| Height | nominal 265 mm || enclosure nominal dimension 300 mm |
| Material | fibreglass reinforced polyester |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Location | direct fixing on backstuds || step slide |
| Mounting Plate Description | plain |
| Net Weight | 4 kg |
| Permanent Permissible Load | 1875 kg |

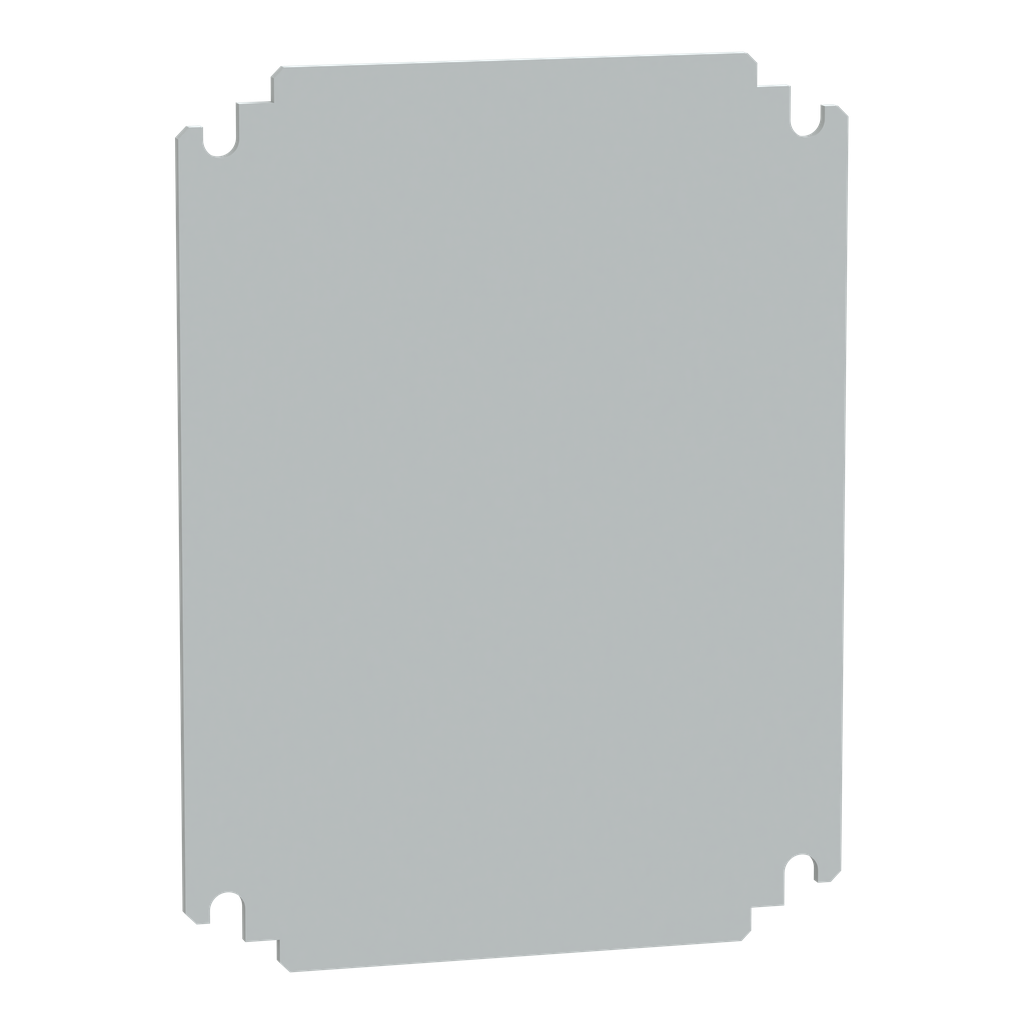

| Product Or Component Type | mounting plate |
| Quantity Per Set | set of 1 |
| Range | Spacial |
| Range Compatibility | Spacial S3D || Spacial CRN || Spacial S3X || Thalassa PLM |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Thickness | 4 mm |
| Warranty | 18 months |
| Width | nominal 200 mm || enclosure nominal dimension 250 mm |
