| Accessibility For Operation | front |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | Gray RAL 7035) |
| Device Application | multi-purpose |
| Device Composition | 1 body || 1 door || 1 lock || 1 cable gland plate |
| Door Opening Side | reversible 120 ?) |
| Door Type | Glass |
| Electromagnetic Compatibility | electromagnetic field immunity test |
| Enclosure Nominal Depth | 250 mm |
| Enclosure Nominal Height | 500 mm |
| Enclosure Nominal Width | 400 mm |
| Environmental Disclosure | ENVPEP100104EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Installation Accessory Type | wall-mounting |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Lock Type | 3 mm double-bar lock |
| Material | body steel || door steel and security glass |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Plate Description | without mounting plate |
| Nema Degree Of Protection | NEMA 4X/13 |
| Net Weight | 10 kg |
| Number Of Doors | front face 1 |
| Product Certifications | LR || GL || cUL || UL || BV || DNV |

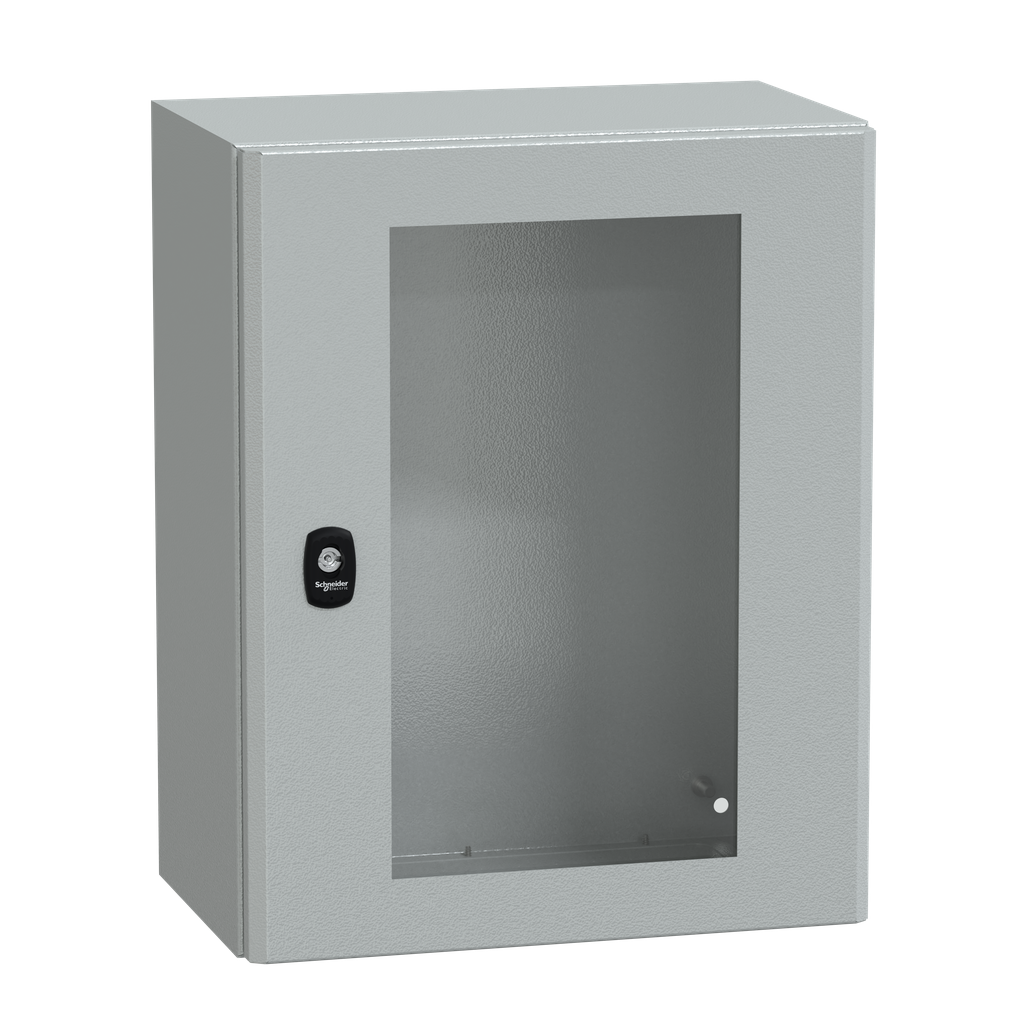

| Product Name | Spacial S3D |
| Product Or Component Type | compact enclosure |
| Range | Spacial |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Removable Parts | door by hinges || cable gland plate by screws |
| Standards | IEC 62208 |
| Surface Finish | epoxy-polyester powder |
| Sustainable Offer Status | Green Premium product |
| Type Of Gland Plate | standard |
| Variant Particularity | gutter-shaped front rail double sheet thickness || single piece body |
| Warranty | 18 months |
