| Accessibility For Operation | front || sides of enclosure || rear |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | enclosure Gray RAL 7035) || handle Black RAL 9005) |
| Device Application | electronic application |
| Device Composition | 1 structure || 1 locking system with handle door || 1 roof || 2 door front and rear || 2 side panels |
| Door Opening Side | reversible 120 ?) |
| Door Type | Solid front || Glass rear |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 600 mm |
| Enclosure Nominal Height | 2200 mm |
| Enclosure Nominal Width | 800 mm |
| Environmental Disclosure | ENVPEP100103EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 IEC 62262 of transparent door) || IK10 IEC 62262 of plain door) |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Lock Type | 4 points lock, handle with 5 mm double bar insert front and rear doors |
| Material | frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Plate Description | without mounting plate |
| Number Of Doors | front and rear 2 |

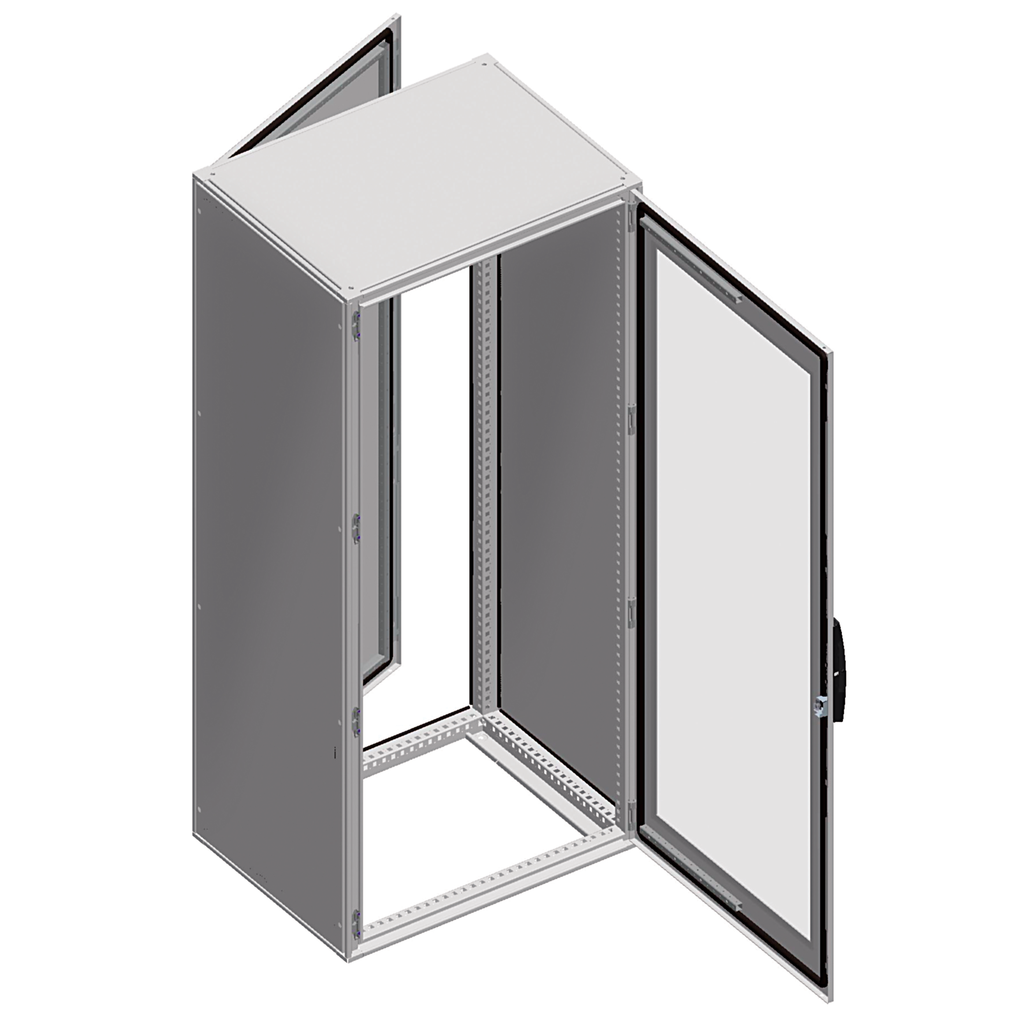

| Product Name | Spacial SF-E |
| Product Or Component Type | suitable enclosure |
| Range | Spacial |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Removable Parts | door by screws hinge || roof by screws || side panel by screws |
| Standards | IEC 62208 |
| Structure Type | panels and doors built into the structure || formed from a single section || vertical uprights joined with top and bottom frames || perforated structure with a pitch of 25 mm |
| Surface Finish | epoxy-polyester powder |
| Sustainable Offer Status | Green Premium product |
| Type Of Gland Plate | without gland plate |
| Warranty | 18 months |
