| Accessibility For Operation | sides of enclosure || front || rear |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | enclosure Gray RAL 7035) || handle Black RAL 9005) |
| Device Application | multi-purpose |
| Device Composition | 2 sliding rails || 4 mounting plate bracket || 1 structure || 1 door || 1 locking system with handle door || 1 rear panel || 1 roof || 1 mounting plate |
| Door Opening Side | reversible 120 ?) |
| Door Type | Solid front |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 600 mm |
| Enclosure Nominal Height | 2200 mm |
| Enclosure Nominal Width | 800 mm |
| Environmental Disclosure | ENVPEP110923EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Lock Type | 4 points lock, handle with 5 mm double bar insert front door |
| Material | frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Plate Description | plain |
| Nema Degree Of Protection | NEMA 3R/12 |
| Net Weight | 152.314 kg |
| Number Of Doors | front 1 |

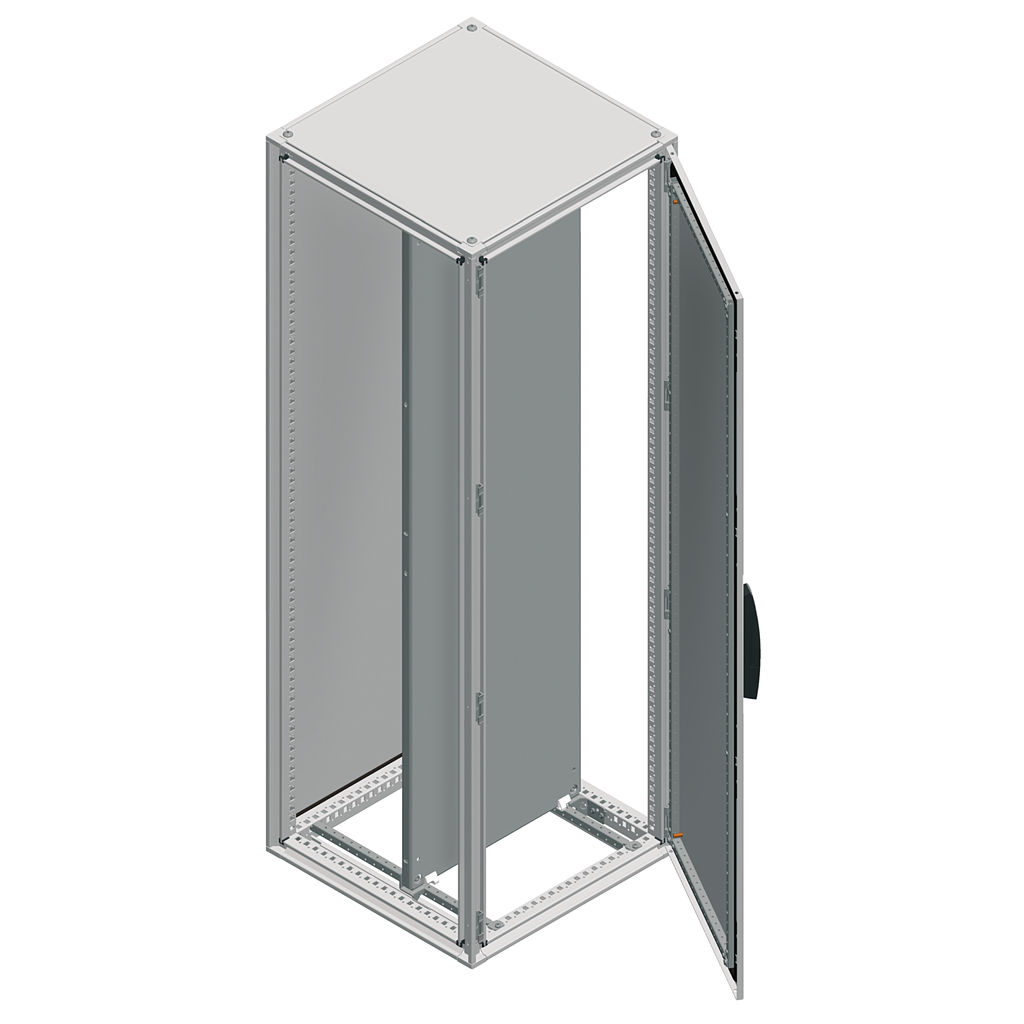

| Product Name | Spacial SF |
| Product Or Component Type | suitable enclosure |
| Range | Spacial |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Removable Parts | door by screws hinge || mounting plate by screws mounting plate bracket || rear panel by screws || roof by screws || mounting plate bracket by screws || sliding rail by screws |
| Standards | IEC 62208 |
| Structure Type | perforated structure with a pitch of 25 mm || formed from a single section || vertical uprights joined with top and bottom frames || panels and doors built into the structure |
| Surface Finish | epoxy-polyester powder |
| Sustainable Offer Status | Green Premium product |
| Type Of Gland Plate | without gland plate |
| Warranty | 18 months |
