| Accessibility For Operation | front |
| Body Type | single piece body with welded rear panel || front part forming a rigid frame with welded corners |
| Cable Entry | 1 entry |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | enclosure Gray RAL 7035) || handle Black RAL 9005) |
| Device Application | multi-purpose |
| Device Composition | 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door |
| Door Opening Side | reversible 120 ?) |
| Door Type | Solid |
| Enclosure Nominal Depth | 300 mm |
| Enclosure Nominal Height | 1400 mm |
| Enclosure Nominal Width | 600 mm |
| Environmental Disclosure | ENVPEP110923EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Installation Accessory Type | floor-standing |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Lock Type | 4 points lock, handle with 5 mm double bar insert |
| Material | mounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Plate Description | plain |
| Net Weight | 70 kg |
| Number Of Doors | front 1 |
| Product Certifications | UL || BV || DNV |

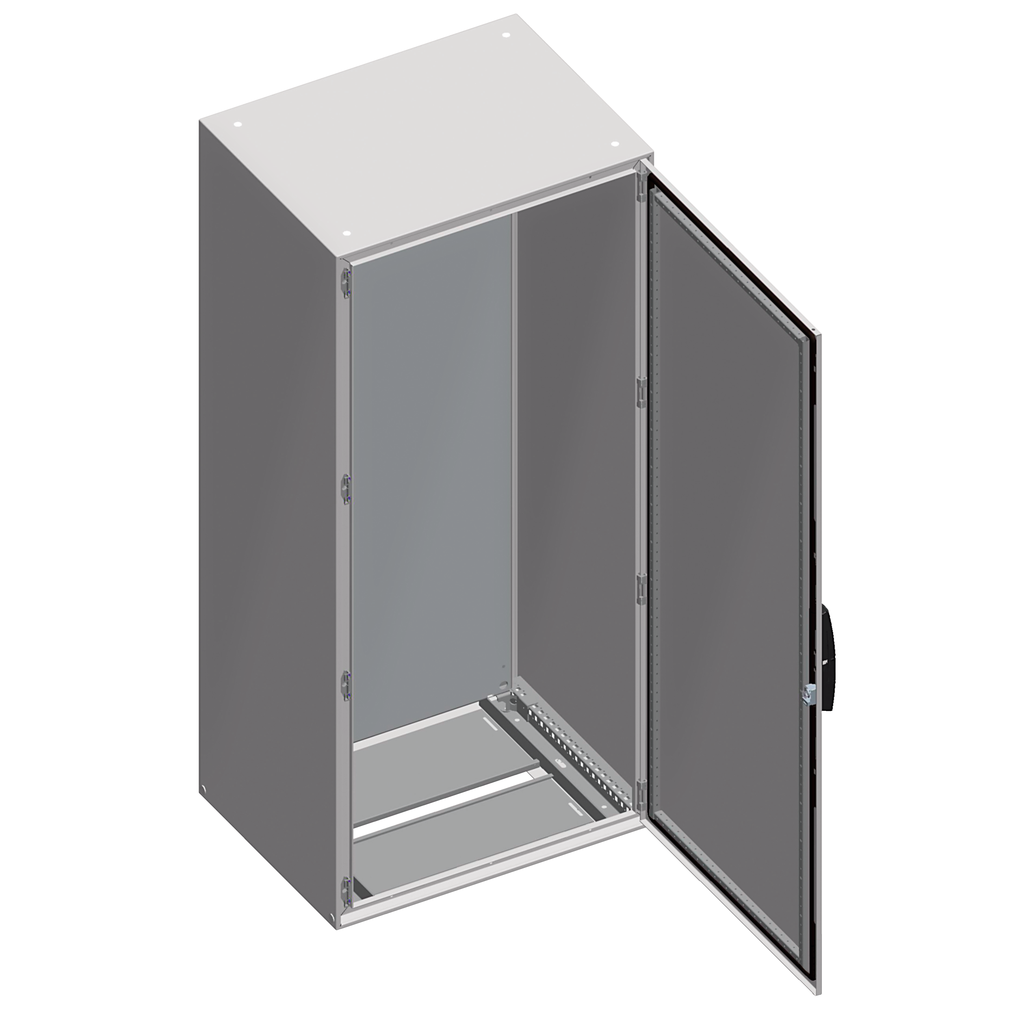

| Product Name | Spacial SM |
| Product Or Component Type | compact enclosure |
| Range | Spacial |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Removable Parts | door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws |
| Standards | IEC 62208 |
| Surface Finish | epoxy-polyester powder |
| Sustainable Offer Status | Green Premium product |
| Type Of Gland Plate | standard |
| Warranty | 18 months |
