| [Ue] Rated Operational Voltage | 120/240 V AC || 120 V AC |
| Ambient Air Temperature For Operation | 40 ?C |
| Awg Gauge | AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium |
| Breaking Capacity | 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz |
| California Proposition 65 : WARNING | Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circuit Breaker Application | not rated |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Depth | 74 mm |
| Electrical Connection | pressure plate |
| Eu Rohs Directive | Compliant |
| Height | 105 mm |
| Line Rated Current | 20 A |
| Mercury Free, Rohs Exemption Information | Yes |
| Mounting Mode | bolt-on |
| Net Weight | 0.195 kg |
| Number Of Spaces Required | 2 |
| Poles Description | 2P |
| Product Certifications | UL Listed || CSA |

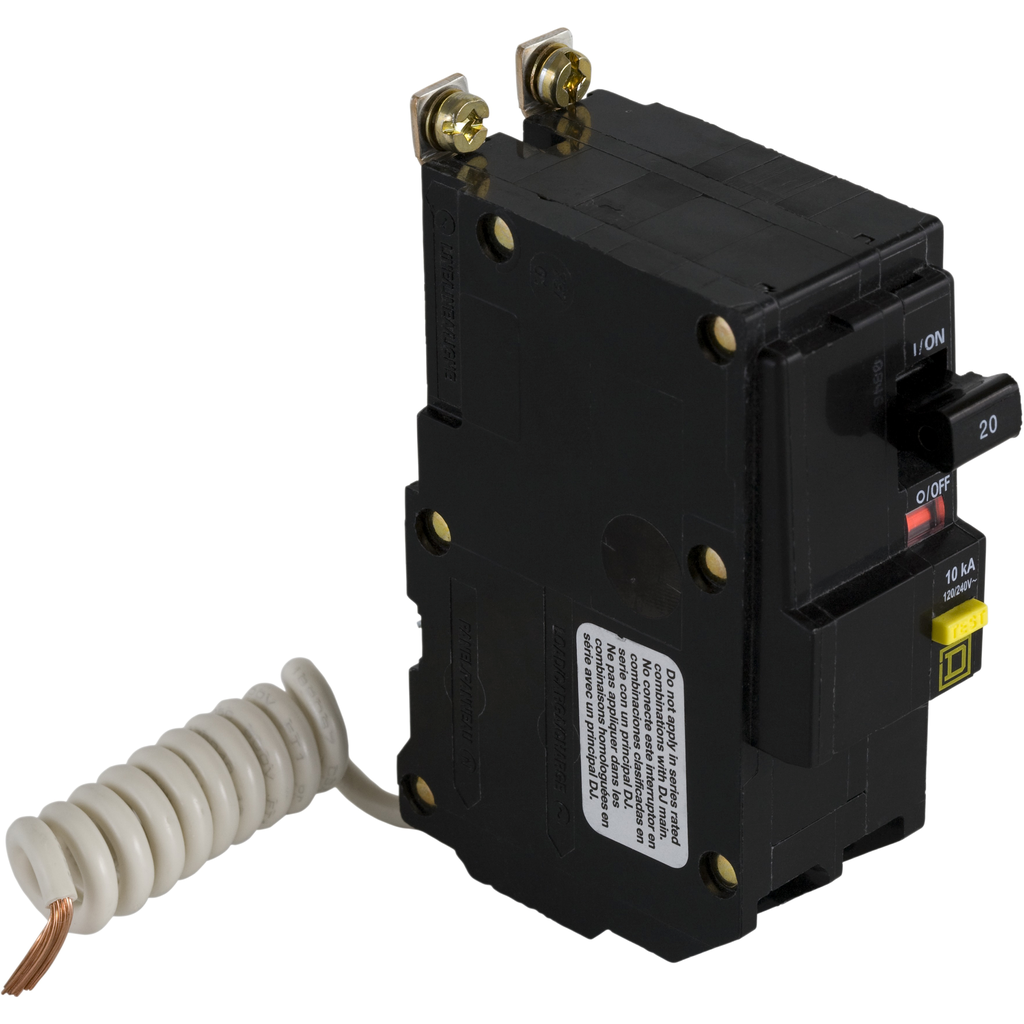

| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | QO |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Tightening Torque | 4.6-4.6 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm? (AWG 12...AWG 4) |
| Width | 38 mm |
