| [Ics] Rated Service Breaking Capacity | 65 kA 240 V AC 50/60 Hz IEC 60947-2 || 45 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 489 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -50-85 ?C |
| Awg Gauge | 4 x AWG 3/0?600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper |
| Breaking Capacity | AIR 125 kA 240 V AC 50/60 Hz UL 489 || AIR 100 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 125 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 85 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | L |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407013EN |
| Communication Interface | Modbus |
| Continuous Current Rating | 100 % |
| Control Type | operating handle |
| Depth | 13.78 in |
| Device Application | distribution |
| Electrical Connection | I-Line connection line || lugs load |
| Environmental Disclosure | ENVPEP1407013EN |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 13.38 in |
| Ip Degree Of Protection | IP40 |
| Line Rated Current | 1200-1200 A |
| Local Signalling | alarm 1 LED yellow)long-time pick up) || 1 LED red)long-time pick up) || trip causes 1 LED red) || 1 LED red)digital ammeter) || ground indicator 1 LED red) || phase-loading LED green)load balancing) |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Mounting Mode | I-Line bracket) |
| Mounting Support | bracket |
| Net Weight | 52 lb(US) |
| Network Frequency | 50/60 Hz |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in) |
| Poles Description | 3P |
| Pollution Degree | 3 IEC 60947-1 |
| Product Certifications | UL || CSA || NOM |

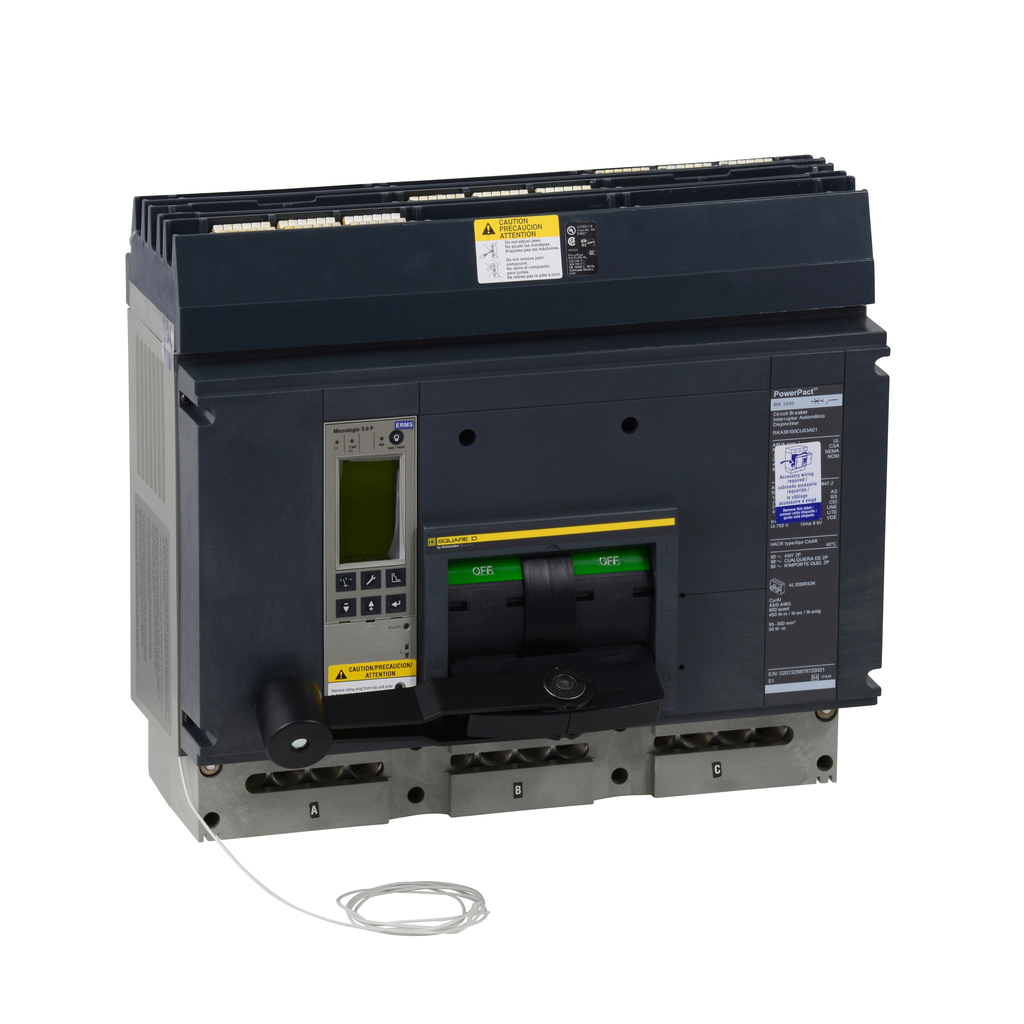

| Product Name | PowerPact R |
| Product Or Component Type | circuit breaker |
| Quality Labels | CE |
| Quantity Per Set | 1 |
| Range | PowerPact |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Standards | UL || CSA || NEMA || NMX J-266 || IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Sustainable Offer Status | Green Premium product |
| Terminal Identifier | AL1200R53K |
| Tightening Torque | 50-50 N.m 95-300 mm? (4 x AWG 3/0?600 kcmil) |
| Trip Unit Name | Micrologic 6.0 P |
| Trip Unit Technology | electronic, power, Micrologic 6.0 P, LSIG |
| Utilisation Category | category A |
| Warranty | 18 months |
| Width | 14.96 in |
| Wire Stripping Length | 30 mm |
