| [Us] Rated Supply Voltage | 115...480 V |
| Back Emf Constant | 46 V/krpm 20 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 2.5 mm |
| Centring Collar Diameter | 60 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Continuous Power | 690 W |
| Continuous Stall Current | 1.8 A |
| Continuous Stall Torque | 1.25 N.m 115...480 V three phase |
| Device Short Name | SH3.....P |
| Electrical Connection | straight connector |
| Encoder Type | absolute multiturn SinCos Hiperface |
| Environmental Disclosure | ENVPEP111049EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Holding Brake | without |
| Ip Degree Of Protection | motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5 |
| Key Width | 4 mm |
| Length | 154 mm |
| Maximum Axial Force Fa | 80 N |
| Maximum Current Irms | 5.7 A |
| Maximum Mechanical Speed | 8000 rpm |
| Maximum Radial Force Fr | 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm |
| Mercury Free | Yes |
| Motor Flange Size | 70 mm |
| Mounting Holes Diameter | 5.5 mm |
| Mounting Support | international standard flange |
| Net Weight | 2.1 kg |
| Nominal Output Power | 220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase |
| Nominal Speed | 1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase |
| Nominal Torque | 1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase |
| Number Of Motor Poles | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 3.5 N.m 115...480 V three phase |
| Phase | three phase |

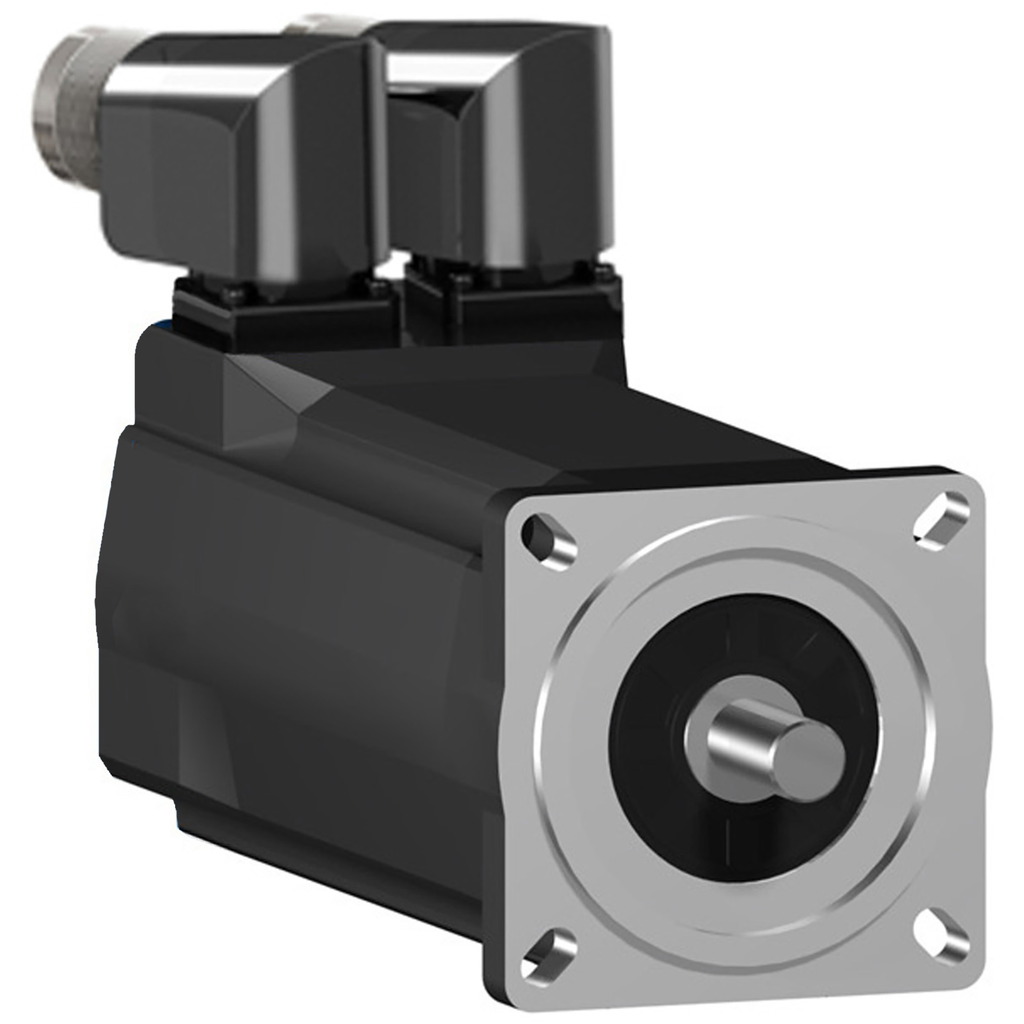

| Product Or Component Type | servo motor |
| Pvc Free | Yes |
| Range Compatibility | PacDrive 3 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Rotor Inertia | 0.25 kg.cm? |
| Shaft Diameter | 11 mm |
| Shaft End | parallel key |
| Shaft Length | 23 mm |
| Speed Feedback Resolution | 128 periods |
| Stator Inductance | 60.25 mH |
| Stator Resistance | 10.4 Ohm |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 0.69 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
