| [Ue] Rated Operational Voltage | 24 V DC |
| Ambient Air Temperature For Operation | 0-60 ?C |
| Ambient Air Temperature For Storage | -25-85 ?C |
| Bus Type | TM7 bus |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409005EN |
| Discrete Input Current | 6 mA |
| Discrete Input Logic | positive logic (sink) |
| Discrete Input Number | 0-8 configurable by software |
| Discrete Input Voltage Type, Discrete Output Voltage Type | DC |
| Discrete Input Voltage, Discrete Output Voltage | 24 V |
| Electrical Connection | 1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 2 female connectors M12 - A coding - 5 ways digital I/O || 2 female connectors M12 - A coding - 8 ways digital I/O |
| Electromagnetic Compatibility | electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2 || 1.2/50 ?s shock waves immunity test, 1 kV unshielded links (differential mode) EN/IEC 61000-4-5 || 1.2/50 ?s shock waves immunity test, 0.5 kV shielded links (common mode) EN/IEC 61000-4-5 || 1.2/50 ?s shock waves immunity test, 1 kV shielded links (differential mode) EN/IEC 61000-4-5 || electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrical fast transient/burst immunity test, 2 kV power supply EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV input/output EN/IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4 || 1.2/50 ?s shock waves immunity test, 0.5 kV power supply (common mode) EN/IEC 61000-4-5 || 1.2/50 ?s shock waves immunity test, 1 kV power supply (differential mode) EN/IEC 61000-4-5 || 1.2/50 ?s shock waves immunity test, 0.5 kV unshielded links (common mode) EN/IEC 61000-4-5 |
| Enclosure Material | Plastic |
| Environmental Disclosure | ENVPEP1409005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by 2 screws |
| Input/Output Number | 8 |
| Input/Output Number Of Splitter Box | 8 I |
| Ip Degree Of Protection | IP67 conforming to IEC 61131-2 |
| Local Signalling | for power supply status 2 LEDs || for safety status 2 LEDs || for input/output status 12 LEDs |
| Marking | CE |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Net Weight | 0.198 kg |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Operating Position | any position |
| Pollution Degree | 2 IEC 60664 |
| Product Certifications | cULus |

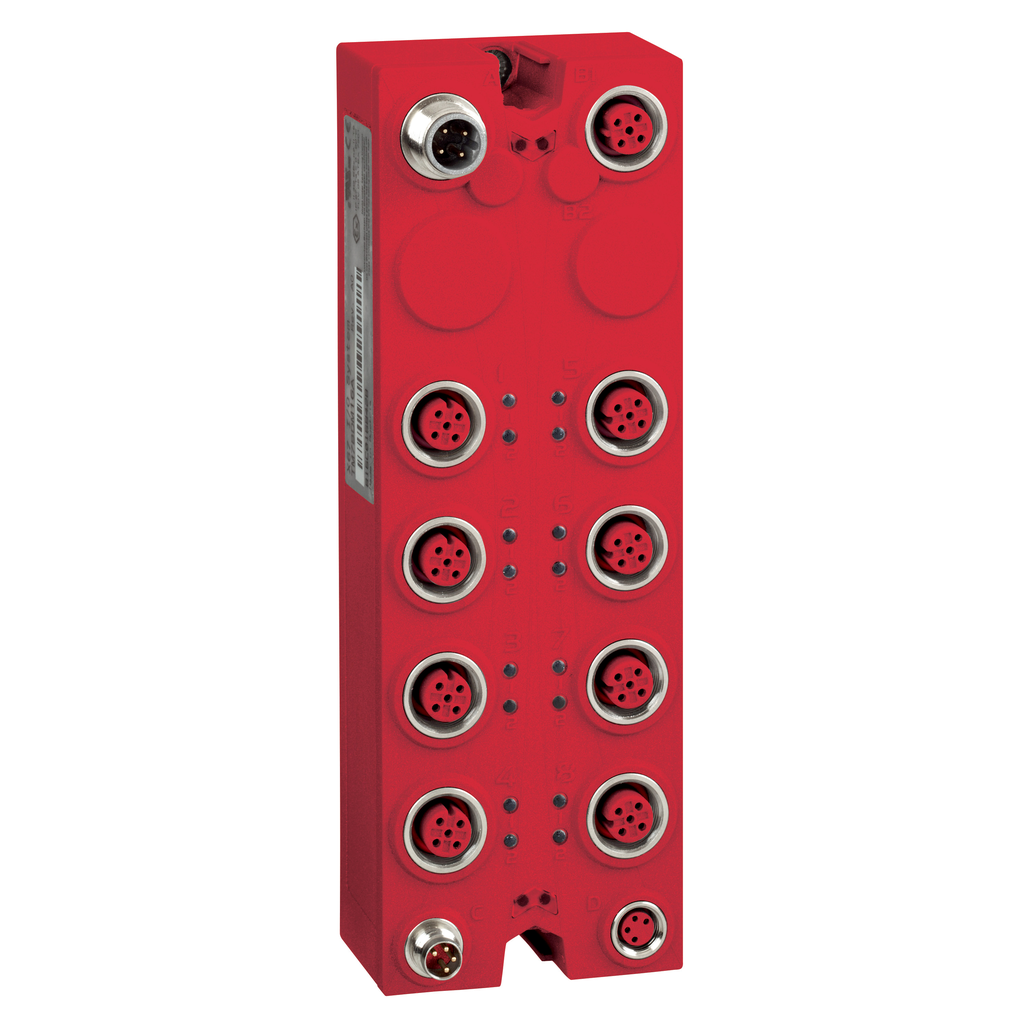

| Product Or Component Type | safety discrete I/O expansion block |
| Range Compatibility | Modicon LMC058 || Modicon M258 |
| Range Of Product | Modicon TM7 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 5-95 % without condensation or dripping water |
| Safety Level | SIL 3 IEC 61508 || SIL 3 IEC 62061 || PL = e EN 13849-1 |
| Shock Resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
| Sustainable Offer Status | Green Premium product |
| Vibration Resistance | 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3 |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
