| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | -40-70 ?C |
| Bezel Material | plastic colour plated grey |
| Bulb Base | integral LED |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Cap/Operator Or Lens Colour | red |
| China Rohs Regulation | X |
| Contact Operation | slow-break |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contacts Usage | standard contacts |
| Current Consumption | 18 mA |
| Depth | 55 mm |
| Device Presentation | complete product |
| Device Short Name | XB5F |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electromagnetic Emission | class B IEC 55011 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Collar Material | plastic |
| Head Type | built-in-flush |
| Height | 42 mm |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 |
| Light Source | universal LED |
| Mechanical Durability | 10000000 cycles |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Mounting Diameter | 30.5 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Operating Force | 3.5 N NC changing electrical state || 3.8 N |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Operator Additional Information | with plain lens |
| Operator Profile | red flush, unmarked |
| Overvoltage Category | class II IEC 60536 |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Product Certifications | UL Listed || CSA |

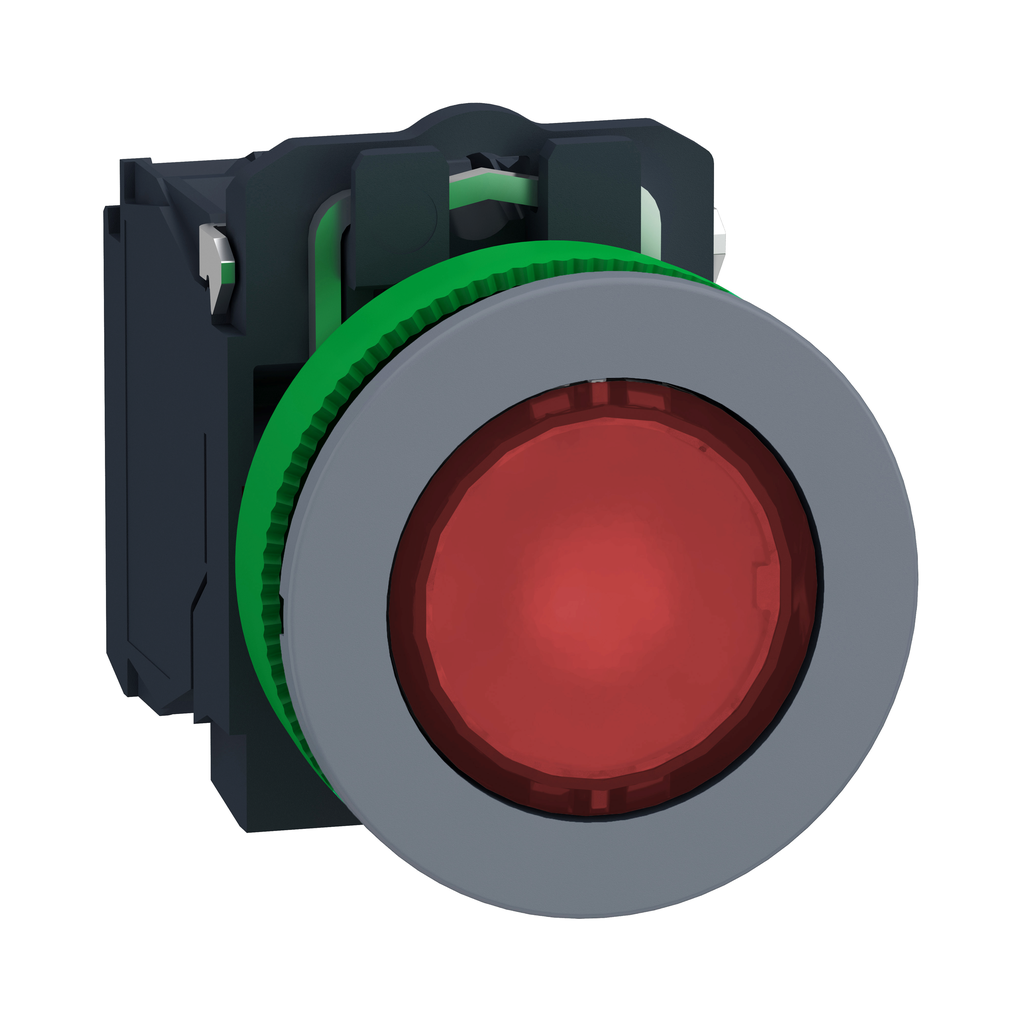

| Product Or Component Type | illuminated push-button |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resistance To High Pressure Washer | 7000000 Pa 55 ?C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 ?C |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Signalling Type | steady |
| Standards | EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 |
| Supply Voltage Limits | 19.2-30 V DC || 21.6-26.4 V AC |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Terminals Description Iso N?1 | (21-22)NC || (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Type Of Operator | spring return |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 36.6 mm |
