| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-55 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Bulb Base | BA 9s |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Cap/Operator Or Lens Colour | yellow |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1805012EN |
| Compatibility Code | XB7 |
| Depth | 54 mm |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1 |
| Device Presentation | monolithic product |
| Device Short Name | XB7 |
| Electromagnetic Compatibility | disturbing field emissionclass B EN 55011 |
| Environmental Disclosure | ENVPEP1805012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Height | 29 mm |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP54 IEC 60529 front face) |
| Light Block Supply | direct |
| Light Source | incandescent (bulb not included) |
| Mercury Free | Yes |
| Mounting Diameter | 22 mm |
| Nema Degree Of Protection | NEMA 12 |
| Net Weight | 0.018 kg |
| Operator Additional Information | with plain lens |
| Overvoltage Category | class II IEC 60536 |

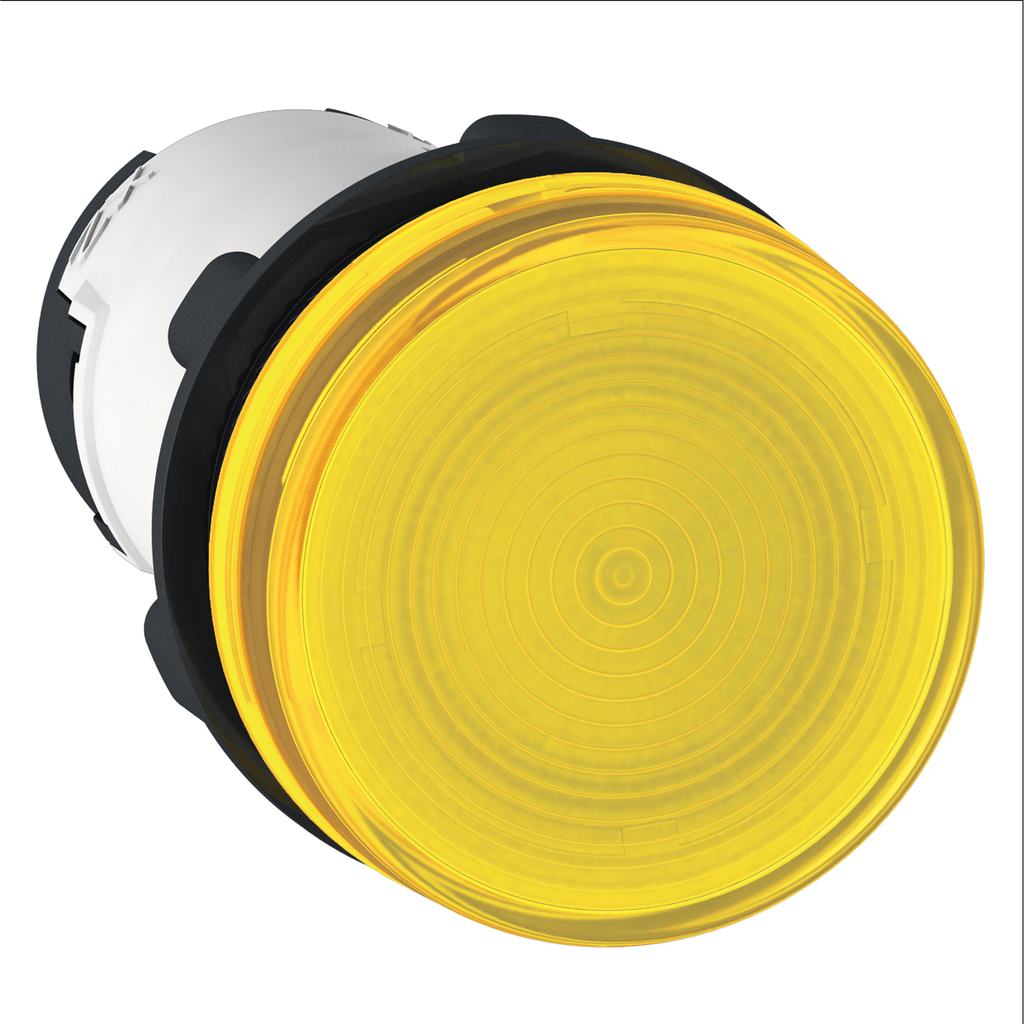

| Product Or Component Type | pilot light |
| Protective Treatment | TH |
| Range Of Product | Harmony XB7 |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Sale Per Indivisible Quantity | 10 |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Signalling Type | steady |
| Standards | CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 |
| Sustainable Offer Status | Green Premium product |
| Terminals Description Iso N?1 | (X1-X2)PL |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Toxic Heavy Metal Free | Yes |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 29 mm |
