| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Body Material | plastic |
| Body Type | fixed |
| Cable Entry | 1 entry tapped for M16 x 1.5 cable gland 4-8 mm |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI110603EN |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| Contact Operation | snap action |
| Contacts Insulation Form | Zb |
| Contacts Type And Composition | 1 NC + 1 NO |
| Depth | 30 mm |
| Device Short Name | XCKP |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm? |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Electrical Shock Protection Class | class II IEC 61140 || class II NF C 20-030 |
| Environmental Disclosure | ENVPEP110606EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fixing Mode | by the body |
| Head Material | zamak |
| Head Type | plunger head |
| Height | 65-65 mm |
| Ik Degree Of Protection | IK04 EN 50102 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Material | plastic |
| Maximum Actuation Speed | 0.5 m/s |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
| Mechanical Durability | 15000000 cycles |
| Mercury Free | Yes |
| Minimum Actuation Speed | 0.01 m/min |
| Minimum Force For Tripping | 15 N |
| Movement Of Operating Head | linear |
| Net Weight | 0.09 kg |
| Number Of Poles | 2 |
| Positive Opening | with |
| Positive Opening Minimum Force | 45 N |
| Product Certifications | UL || CCC || CSA |

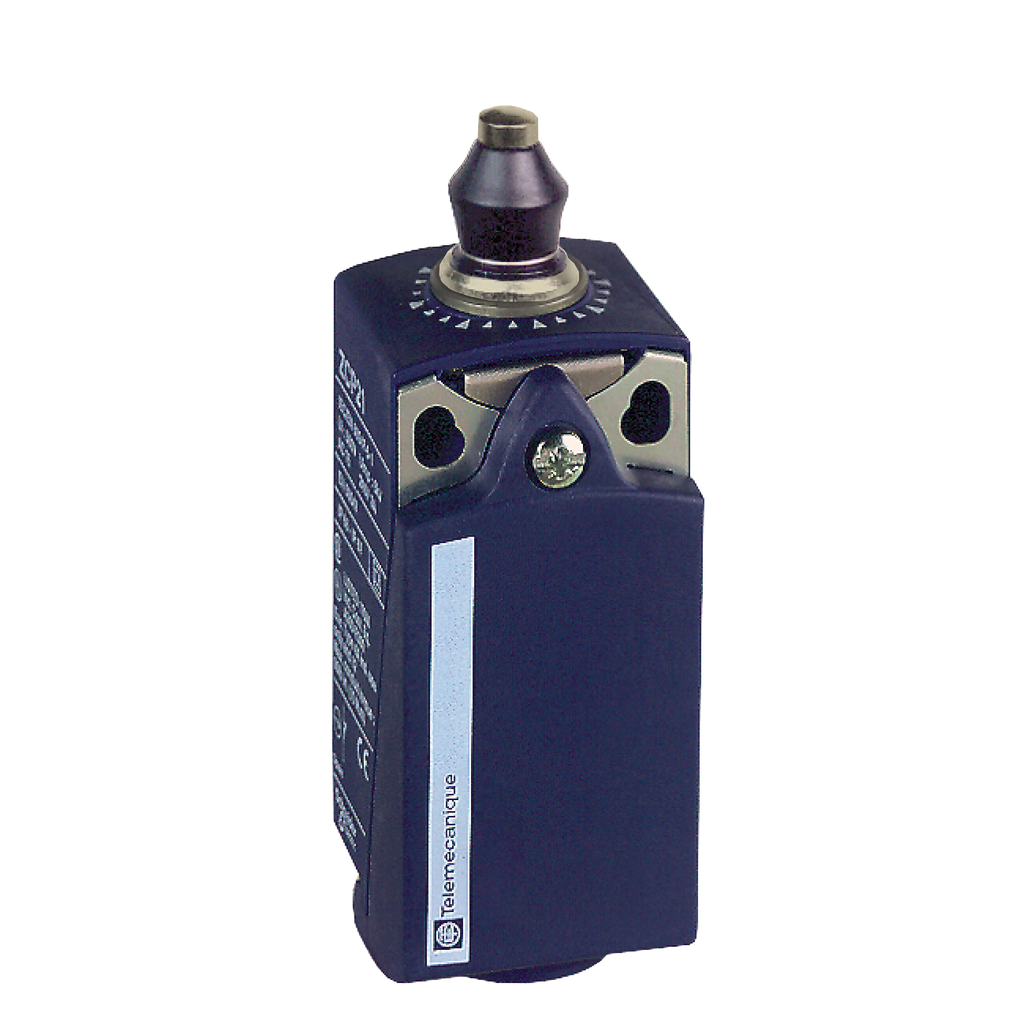

| Product Or Component Type | limit switch |
| Protective Treatment | TC |
| Range Of Product | Telemecanique Limit switches XC Standard |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Repeat Accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| Rohs Exemption Information | Yes |
| Sensor Design | compact |
| Series Name | standard format |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Standards | EN 60947-5-1 || EN 60204-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60204-1 |
| Sustainable Offer Status | Green Premium product |
| Switch Actuation | on end |
| Terminals Description Iso N?1 | (13-14)NO || (21-22)NC |
| Type Of Approach | vertical approach, 1 direction |
| Type Of Operator | spring return roller plunger metal with nitrile boot |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Width | 31 mm |
