| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| [Us] Rated Supply Voltage | 24 V DC SELV 12-33 V) |
| Accuracy | 0.1 % of the measuring range |
| Ambient Air Temperature For Operation | -30-85 ?C |
| Ambient Air Temperature For Storage | -50-100 ?C |
| Analogue Output Function | 0...10 V, 3-wire |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Controlled Fluid | fresh water 0-125 ?C) || air -15-125 ?C) || gas -15-125 ?C) || hydraulic oil -15-125 ?C) |
| Destruction Pressure | 5 bar |
| Diameter | 26 mm |
| Drift Of The Sensitivity, Drift Of The Zero Point | +/- 0.02 % of measuring range/?K |
| Electrical Circuit Type | control circuit |
| Electrical Connection | 1 male connector EN 175301-803-A (ex DIN43650) 3 pins |
| Electromagnetic Compatibility | susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...1000 MHz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 2 kV || radiated RF fields EN/IEC 61000-4-6 10 V 0.15...80 MHz || electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 ?s shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz |
| Environmental Disclosure | ENVPEP1511013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fluid Connection Type | SAE 7/16-20UNF (female) |
| Ip Degree Of Protection | IP65 conforming to EN/IEC 60529 |
| Length | 58 mm |
| Local Display | without |
| Materials In Contact With Fluid | fluorocarbon FPM || ceramic || stainless steel AISI 316L |
| Maximum Permissible Accidental Pressure | 3 bar |
| Measurement Accuracy | +/- 0.5 % of the measuring range |
| Mechanical Durability | 10000000 cycles |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Net Weight | 0.095 kg |
| Operating Position | any position |

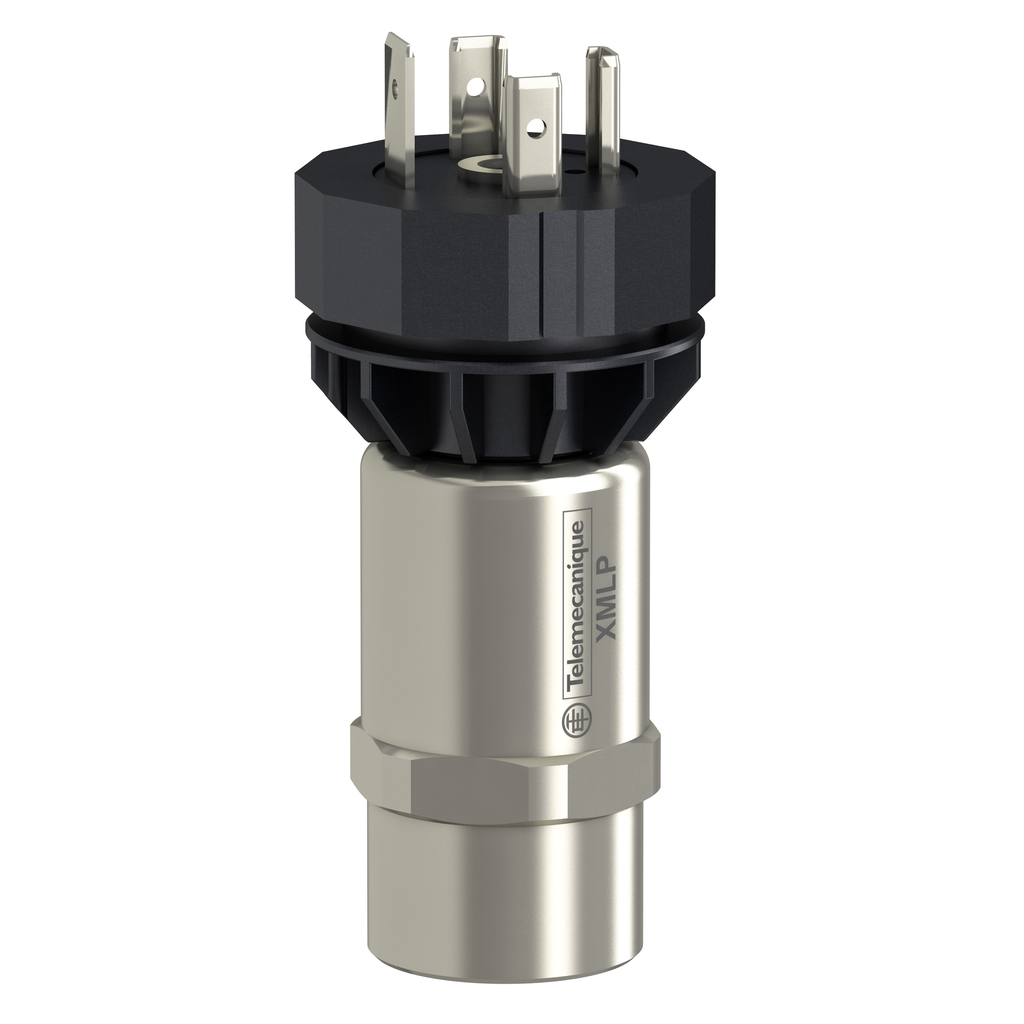

| Pressure Sensor Name | XMLP |
| Pressure Sensor Size, Pressure Setting Range | -1-0 bar |
| Pressure Sensor Type | pressure transmitter |
| Product Certifications | cULus || CE || RCM || EAC |
| Product Or Component Type | electronic pressure sensors |
| Protection Type | load short-circuit || reverse polarity |
| Quantity Per Set | set of 1 |
| Range Of Product | OsiSense XM |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Repeat Accuracy | +/- 0.25 % of the measuring range |
| Shock Resistance | 100 gn 11 ms EN/IEC 60068-2-27 |
| Standards | EN/IEC 61326-2-3 || NSF ANSI 61 |
| Sustainable Offer Status | Green Premium product |
| Type Of Output Signal | analogue |
| Type Of Packing | individual |
| Vibration Resistance | 20 gn 10-2000 Hz) EN/IEC 60068-2-6 |
