| [Sa] Assured Operating Distance | 0.155-2 m teach mode) |
| [Sd] Sensing Range | 0.155-2 m |
| [Sn] Nominal Sensing Distance | 2-2 m adjustable with remote teach push-button || 2-2 m software with kit |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-80 ?C |
| Analogue Output Function | 0...10 V |
| Blind Zone | 155-155 mm |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Current Consumption | 65 mA |
| Depth | 102.15 mm |
| Detection System | diffuse |
| Deviation Angle From 90? Of Object To Be Detected | -12-12 ? |
| Electrical Connection | male connector M12 5 pins |
| Enclosure Material | stainless steel 316L |
| Environmental Disclosure | ENVPEP1803029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Front Material | epoxy || rubber || resin |
| Function Available | with synchronisation mode || software configurable |
| Height, Width | 30 mm |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 || IP67 |
| Marking | CE |
| Material | metal |
| Maximum Delay First Up | 250 ms |
| Maximum Delay Recovery | 200 ms |
| Maximum Switching Capacity | >= 1 kOhm overload and short-circuit protection |
| Mercury Free, Rohs Exemption Information | Yes |
| Minimum Size Of Detected Object | cylinder diameter 1 mm 1.4 m |
| Net Weight | 0.18 kg |
| Product Certifications | cULus || E2 || EAC || RCM || Ecolab |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Repeat Accuracy | 0.1 % |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Resistance To Electrostatic Discharge | 8 kV IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |

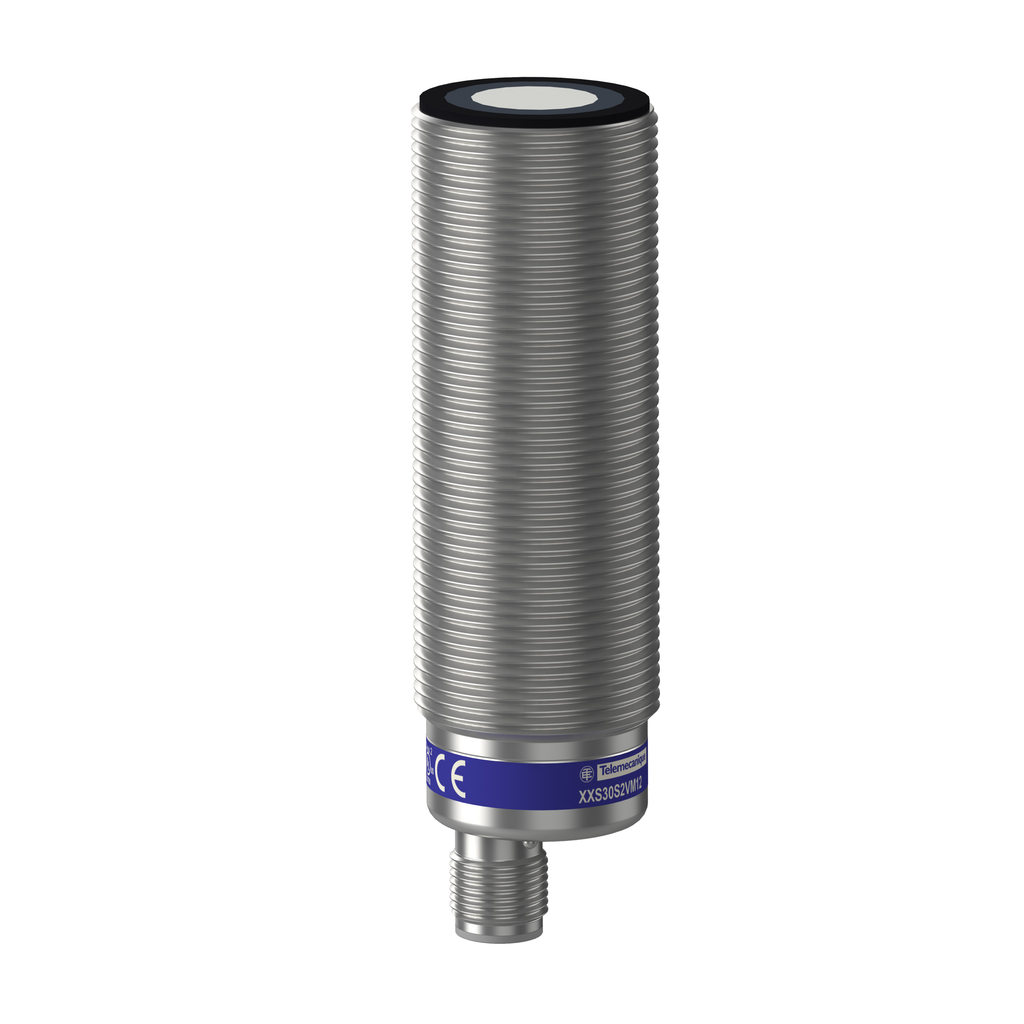

| Sensor Design | cylindrical M30 |
| Sensor Name | XXS |
| Sensor Type | ultrasonic sensor |
| Series Name | general purpose |
| Setting-Up | teach mode || configurator software |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Standards | EN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508 |
| Status Led | output state 1 LED yellow) || echo state 1 LED green) |
| Supply Voltage Limits | 14-30 V DC |
| Sustainable Offer Status | Green Premium product |
| Threaded Length | 75.75 mm |
| Transmission Frequency | 120 kHz |
| Type Of Output Signal | analogue |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Wiring Technique | 5-wire |
