TELEMECANIQUE SENSORS 9013FRG22J36

B00PSMZ1P4

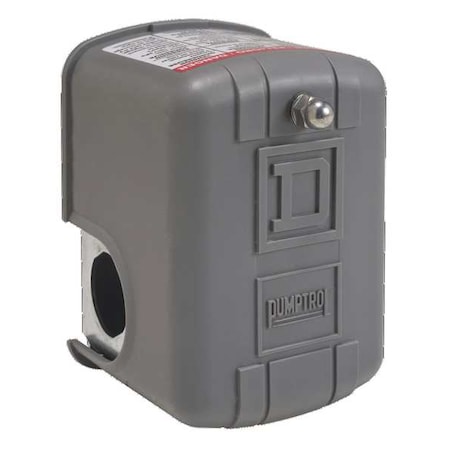

Square D by Schneider Electric 9013FRG22J36 Air-Pump Pressure Switch, NEMA 1, 10-5 psi Pressure Setting, 20-50 psi Cut-Out, 15-30 psi Reverse-Acting Adjustable Differential

Square D by Schneider Electric 9013FRG22J36 Air-Pump Pressure Switch, NEMA 1, 10-5 psi Pressure Setting, 20-50 psi Cut-Out, 15-30 psi Reverse-Acting Adjustable Differentialzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 230V, 10 A @ 230V
Actuation TypeDiaphragm
Adjustable Range On Ris.4-25 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .6-20 psi
Best Sellers RankSee Top 100 in Industri.
BrandSquare D, Square D by S.
Burst Pressure220 psi
Cable Entry Number2 0.88 in cable entries.
California Proposition .Diisononyl phthalate (D.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
ConditionNew
Connector TypeClamp
Contact TypeDPST
Contacts Type And Compo.2 NO, snap action, DPST.
Controlled Fluidfresh water -22-257 ?F)
Country of OriginMexico
Date First AvailableMay 15, 2014
Depth3.76 in
Destruction Pressure220 psi
DifferentialAdjustable Differential.
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew Terminals, Screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.25 inch NPSF internal.
Gauge Proof Pressure500 psig
Gross Weight0 lbs
GTIN785901051909
Gtin00785901051909
Height3.71 in
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 240V1 hp
HP @ 3 Phase - 240V1 hp
Increasing Pressure4-25 psi
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Item model number9013FRG22J36
Item Number9013FRG22J36
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155297
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw0.75 kW 1 hp)115 V AC, .
Mpn9013FRG22J36
Nema Degree Of Protecti.NEMA 1 UL 50
Nema RatingNEMA 1
NEMA Rating1
Net Weight1 lb(US), 1 lb
Operating Positionany position
Package Dimensions3.9 x 3.9 x 3.1 inches;.
Port Connection1/4 NPT Female
Pressure ActuatorDiaphragm
Pressure Sensor Name9013FR
Pressure Sensor Size45 psi 10-45 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionReverse
Pressure Switch Applica.Water Pump
Pressure Switch Differe.6 to 20 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.10/5 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range4 to 45 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Series9013F
Product Specific Applic.control electrically dr.
Product with faster shi.true
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013FRG, 9013
Settinginternal
Shippingundefined (Fixed Shippi.
Short-Circuit Protection20 A cartridge fuse gG
Special FeaturesMercury Free; Green Pre.
Specification metCSA, UL
StandardsANSI /NSF Standard 61, .
Sustainable Offer StatusGreen Premium product
Switch TypePressure Switch
Temp. Range-22 Degrees to 257 Deg.
TerminalDPST
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
Type of CircuitNormally Open
Type Of Packingindividual
Upc785901051909
Value Of Setting10...5 psi
Warranty18 months
Weight2.000000
Width2.78 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTask SurplusHL-TAS212-17-1A0140.01In StockSQUARE D PUMPTROL40.0 @ 1
thumbzoomsustainablesupply.comC268185542.781In StockSquare D0.842.78 @ 1
AmazonTPB00PSMZ1P443.261In Stock2Schneider Electric43.26 @ 1
thumbzoomindustrialrefrigerationparts.com9013FRG22J3643.461In StockSquare D2.043.46 @ 1
hvacdiscountstore.comSCH--9013FRG22J3644.81In StockSCHNEIDER ELECTRIC (SQUARE D)44.8 @ 1
thumbzoomGalco9013FRG22J36-SQD46.3312Square D1.046.33 @ 1
Onlinecomponents.com9013FRG22J3649.35114SCHNEIDER-SQUARE D49.35 @ 1
thumbzoomZoroG137039752.591431Square D0.852.59 @ 1
thumbzoomsuperbreakers.com9013FRG22J3655.451In StockSquare D55.45 @ 1
thumbzoommidwestapplianceparts.com9013FRG22J36-SQ-P55.921In StockSquared55.92 @ 1
thumbzoommayerelectric.comSQD9013FRG22J3659.961In StockSQUARE D1.059.96 @ 1
thumbzoomNational Supply Network6966991979.921In StockSquare D79.92 @ 1
grainger.caSQD9013FRG22J3679.991079261In StockSQUARE D0.879.99107926 @ 1
thumbzoomhomeessentialsdirect.com9013FRG22J3684.571In StockSchneider Electric84.57 @ 1
thumbzoomRaptor SuppliesAJ2JGT99.9357841In StockSQUARE D99.935784 @ 1
