Square D 9080LBA162101

B011P04QE4

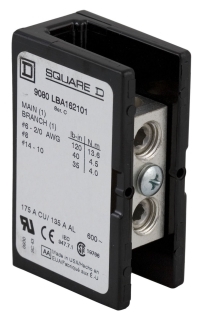

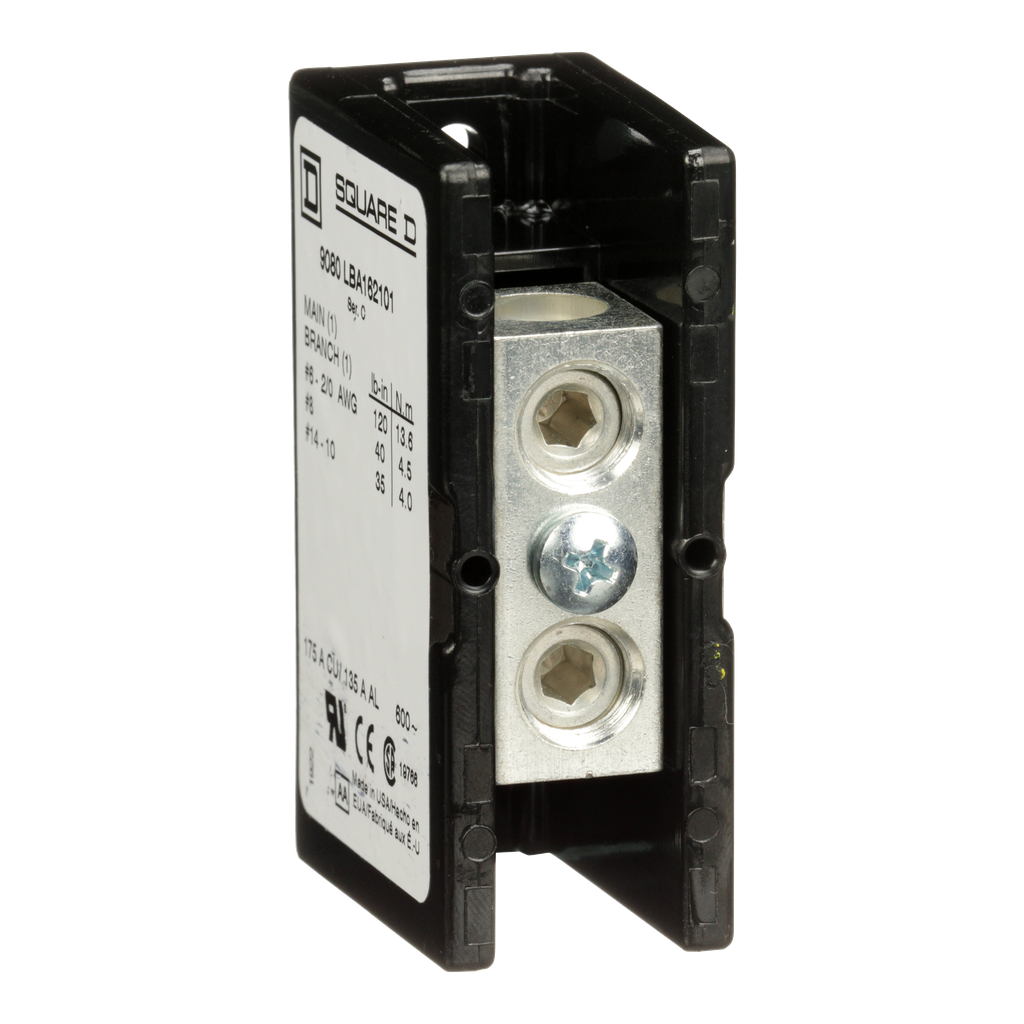

SQUARE D BY SCHNEIDER ELECTRIC 9080LBA162101 TERMINAL BLOCK, POWER DISTRIBUTION, 2 POSITION, 00AWG

SQUARE D BY SCHNEIDER ELECTRIC 9080LBA162101 TERMINAL BLOCK, POWER DISTRIBUTION, 2 POSITION, 00AWGzoom

Attributes

Key Value
[Ics] Rated Service Bre.65 kA UL 508 A
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-302 ?F
Amperage Rating175A
Application9080LB,9080LB21
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog Number9080LBA162101
CategoryConnectors, Interconnec.
China Rohs RegulationPro-active China RoHS d.
ConnectionTin plated aluminium lu.
Connections - Terminalsline lug 40 lbf.in AWG .
Country of OriginUnited States, US - Uni.
Current Rating (Amps)175 A
Depth1.78 in
DescriptionPWR DISTR BLK 600V 175A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA162101-ND
ECCNEAR99
Electrical Connectiontin plated aluminium lu.
Eu Rohs DirectiveCompliant
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .2/0 AWG
For Line Aluminum Wire .14 AWG
For Line Copper Wire Si.2/0 AWG
For Line Copper Wire Si.14 AWG
For Load Aluminum Wire .2/0 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.2/0 AWG
For Load Copper Wire Si.14 AWG
Height2.88 in
Housing MaterialPhenolic
ItemPower Distribution Block
Item TypePower Distribution Bloc.
Length2.88 in
Length (Straight Wirewa.2.88 in
Line Connections/Pole1
Line Rated Current175-175 A copper || 135.
Line Side Connection Ty.Screw Connection, Lug
Line Side Connections P.1
Line Side Wire Size Ran.14 AWG - 2/0 AWG
Line Side Wire/Stud Size2/0-14 AWG
Load Connections/Pole1
Load Side Connection Ty.Screw Connection, Lug
Load Side Connections P.1
Load Side Wire/Stud Size2/0-14 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA162101
Manufacturer Standard L.1 Weeks
Materialphenolic block
Max. Amps175 A
Maximum Current - Alumi.135 A
Maximum Current - Coppe.175 A
Maximum Operating Tempe.302 Degrees F
Maximum Voltage600V AC/DC
Mercury FreeYes
MfrSchneider Electric
Minimum Operating Tempe.-40 Degrees F
MountingSurface
Mounting Supportsurface mount
Mounting Typesurface mount
Number Of Cablesline 2 , AWG 14...AWG 2.
Number of Circuits1
Number of Poles1
Number Of Poles1
Number Of Terminals1 line || 1 load
Overall Depth1.78 in
Overall Length2.88 in
Overall Width1.13 in
PackageBox
Power Distribution Bloc.Open
Primary Connections/Pole1
Primary Wire Range14 to 2/0 AWG
Primary Wire Range (AWG)14 to 2/0 AWG
Product CertificationsCSA file 70361 class 62.
Product Compatibility9080LB21
Product Or Component Ty.Power Distribution Block
Product StatusActive
Range Of Product9080LB
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RoHS CompliantYes
Rohs Exemption Informat.Yes
Secondary Connection/Po.1
Secondary Wire Range14 to 2/0 AWG
Secondary Wire Range (A.14 to 2/0 AWG
SeriesSquare D
Short-Circuit Current65 kA
Size1.78
Special Features18 Months Warranty, Sur.
StandardCSA FILE 70361 CLASS 62.
StandardsCE Marked, CSA File 703.
Terminal MaterialAluminum
Toxic Heavy Metal FreeYes
TypePower Distribution Block
UNSPSC39121410
UPC785901097297
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width1.13 in
Wire SizeLine 2, AWG 14...AWG 2/.
Wire Strip LengthLine 0.5 in; Load 0.5 in
Wire Stripping Lengthline 0.5 in || load 0.5.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com21980609.471In StockSquare D9.47 @ 1
thumbzoomgordonelectricsupply.com9080LBA1621019.991In StockSQUARE D9.99 @ 1
thumbzoommayerelectric.comSQD9080LBA16210110.3912SQUARE D10.39 @ 1
thumbzoomZoroG352124410.391236Square D0.2210.39 @ 1
Graybar9009525512.18561In StockSquare D (Schneider Electric)12.1856 @ 1
steinerelectric.com15181812.391In StockSquare D?12.39 @ 1
thumbzoomDigi-Key1715377113.781In StockSchneider Electric13.78 @ 1
thumbzoomNewark17B334414.441In StockSQUARE D BY SCHNEIDER ELECTRIC14.44 @ 1
us.rs-online.com7219489114.581In StockSquare D14.58 @ 1
thumbzoomcrescentelectric.com551414.691In StockSquare D by Schneider Electric14.69 @ 1
grainger.caSQD9080LBA16210115.09676481In StockSQUARE D0.2215.0967648 @ 1
thumbzoomsustainablesupply.comC121275518.131In StockSquare D0.2218.13 @ 1
thumbzoomAmazonB00819Z66U18.341In StockSquare D18.34 @ 1
thumbzoomRaptor SuppliesAG7FWD18.46979551In StockSQUARE D18.4697955 @ 1
thumbzoomNational Supply Network6965922526.351In StockSquare D26.35 @ 1
