Square D 9080LBA163101

B000LEBY7S

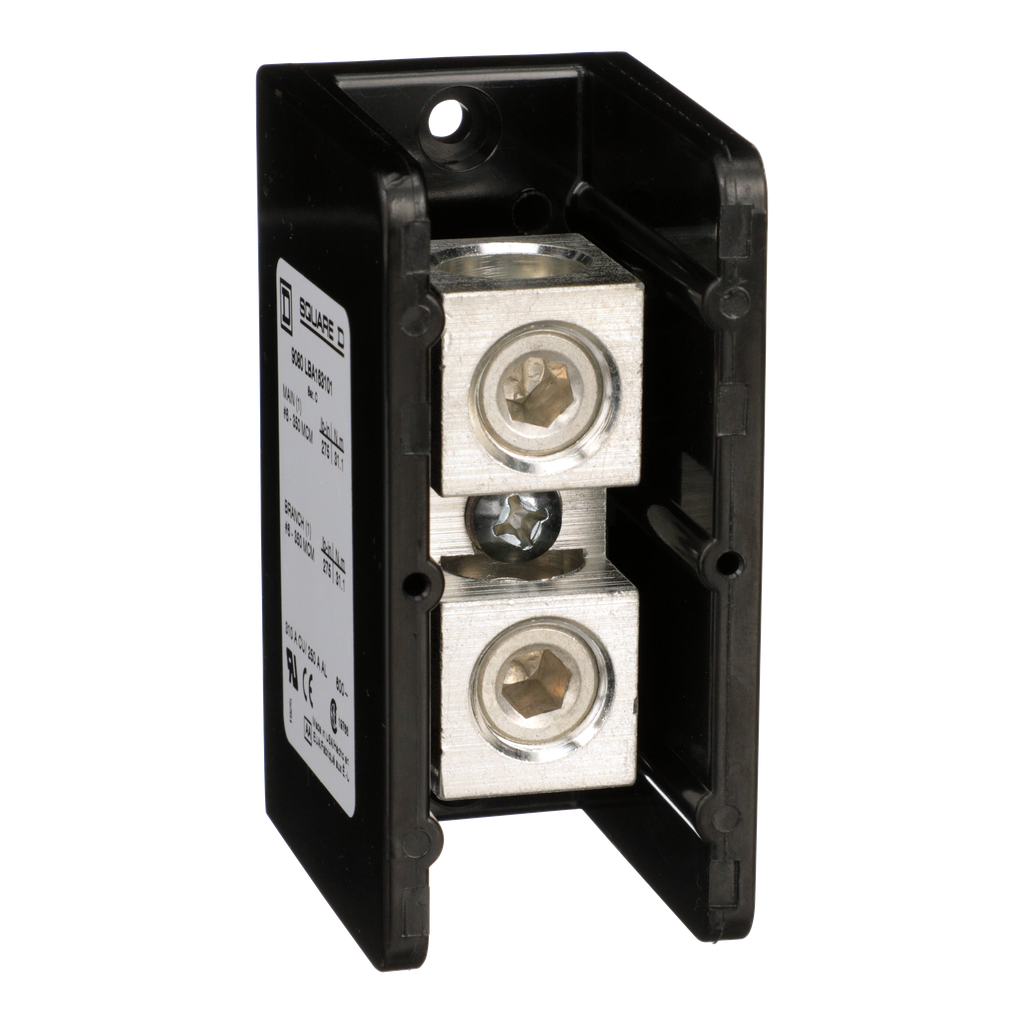

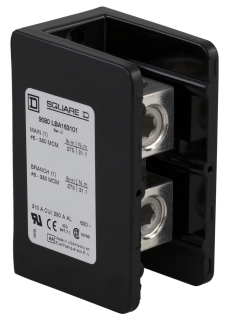

SQUARE D 9080LBA163101 Power Distribution Block 600V 310A

SQUARE D 9080LBA163101 Power Distribution Block 600V 310Azoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA UL 508 A
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-302 ?F
Amperage Rating310A
Application9080LB,9080LB31
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog Number9080LBA163101
CategoryConnectors, Interconnec.
China Rohs RegulationPro-active China RoHS d.
ConnectionTin plated aluminium lu.
Connections - Terminalsline lug 275 lbf.in AWG.
Country of OriginUnited States, US - Uni.
Current Rating (Amps)310 A
Depth2.61 in
DescriptionPWR DISTR BLK 600V 310A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA163101-ND
ECCNEAR99
Electrical Connectiontin plated aluminium lu.
Eu Rohs DirectiveCompliant
Height3.38 in
Item TypePower Distribution Bloc.
Line Rated Current310-310 A copper || 250.
Line Side Connection Ty.Screw Connection
Line Side Connections P.1
Line Side Wire/Stud Size350MCM (kcmil) - 6 AWG
Load Side Connection Ty.Screw Connection
Load Side Connections P.1
Load Side Wire/Stud Size350MCM (kcmil) - 6 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA163101
Manufacturer Standard L.1 Weeks
Materialphenolic block
Mercury FreeYes
MfrSchneider Electric
MountingSurface
Mounting Supportsurface mount
Number Of Cablesline 1 , AWG 6...350 kc.
Number Of Poles1
Number of Poles1
Number Of Terminals1 line || 1 load
PackageBox
Packaging1 Each
Product CertificationsCSA file 70361 class 62.
Product Compatibility9080LB31
Product Or Component Ty.Power Distribution Block
Product StatusActive
Range Of Product9080LB
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesSquare D
Short-Circuit Current65 kA
Size2.61
Special FeaturesLUGS TIN PLATED ALUMINI.
StandardCSA FILE 70361 CLASS 62.
Toxic Heavy Metal FreeYes
TypePower Distribution Block
UNSPSC39121410
UPC785901097310
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width1.94 in
Wire SizeLine 1, AWG 6...350 kcm.
Wire Stripping Lengthline 1.06 in || load 1..

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key1715376349.161In StockSchneider Electric49.16 @ 1
thumbzoomRadwell9080LBA16310149.671In StockSCHNEIDER ELECTRIC1.049.67 @ 1
thumbzoomgordonelectricsupply.com9080LBA16310150.591In Stock10SQUARE D50.59 @ 1
thumbzoommayerelectric.comSQD9080LBA16310152.961In StockSQUARE D52.96 @ 1
thumbzoomZoroG085366053.121In Stock35Square D0.6153.12 @ 1
Graybar9009524459.361In StockSquare D (Schneider Electric)59.36 @ 1
thumbzoomsustainablesupply.comC304685664.041In StockSquare D0.6164.04 @ 1
us.rs-online.com7219489267.5911Square D67.59 @ 1
thumbzoomNewark17B334669.281In StockSQUARE D BY SCHNEIDER ELECTRIC69.28 @ 1
thumbzoomcrescentelectric.com14182474.911In StockSquare D by Schneider Electric74.91 @ 1
