Square D 9080LBA163104

B008KNP2PC

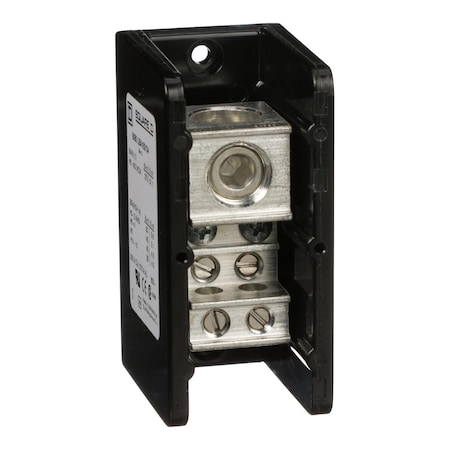

SQUARE D 9080LBA163104 Power Distribution Block 600V 335A Tlb

SQUARE D 9080LBA163104 Power Distribution Block 600V 335A Tlbzoom

Attributes

Key Value
Amperage Rating335A, 270/335 A, 335/270
Application9080LB,9080LB31
ApprovalsCE, CSA, UL
BrandSquare D by Schneider E.
Catalog Number9080LBA163104
ColorBlack
CompositionPhenolic
ConditionNew
ConnectionTin plated aluminium lu.
Country of OriginUnited States, US - Uni.
Current Rating (AC)335 A
Depth2.61 in
Dimensions1.92 in W x 2.61 in D x.
ECCNEAR99
Estimated Lead Time (in.6
Family SeriesSquare D Power Distribu.
For Line Aluminum Wire .400 kcmil
For Line Aluminum Wire .6 AWG
For Line Copper Wire Si.400 kcmil
For Line Copper Wire Si.6 AWG
For Load Aluminum Wire .2 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.2 AWG
For Load Copper Wire Si.14 AWG
Fuse TypeClass J/T/RK1/RK5/G/CC
Gross Weight0 lbs
GTIN785901156949
Includes CoverNo
Input Wire Range6 AWG-400 kcmil
ItemPower Distribution Bloc.
Item Number9080LBA163104
Item TypePower Distribution Bloc.
Length3.38 in
Line Side Wire Size Ran.6 AWG - 400 kcmil
Line/Load ConnectionBox Lug/Box Lug
Made in USAYes
ManufacturerSquare D, Schneider Ele.
MaterialPhenolic, Phenolic block
MountingSurface
Mounting TypePanel Mount
Net Weight0 lbs
Number of Inputs per Po.1
Number of Outputs per P.4
Number of Poles1
Output Wire Range14-2 AWG
Overall Depth2.61 in
Overall Length3.38 in
Overall Width1.94 in
Packaging2 per Pack
Power Distribution Bloc.Open
Primary Connections/Pole1
Primary Wire Range (AWG)AWG 6 to 400 kcmil (Cop.
Secondary Connection/Po.4
Secondary Wire Range (A.AWG 14 to AWG 2 (Copper.
Series9080LB
Short Circuit Current R.100, 100 kA
Size2.61
Special FeaturesLUGS TIN PLATED ALUMINI.
StandardUL RECOGNIZED E60616 CC.
Type1-Pole Standard
UNSPSC39121410
UPC785901156949
UPC Code785901156949
Voltage Rating600 V AC/DC, 600, 600 V.
Voltage Rating (AC)600 VAC
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width1.94 in
Wire SizeLine 1, AWG 6...400 kcm.
Wire Strip LengthLine 1.06 in; Load 0.56.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9080LBA16310441.891In StockSquare D2.041.89 @ 1
thumbzoomGalco9080LBA163104-SQD44.661In StockSquare D44.66 @ 1
thumbzoomblackhawksupply.com9080LBA16310446.111In StockSquare D46.11 @ 1
thumbzoomZoroG057101946.291In StockSquare D0.6346.29 @ 1
thumbzoomstandardelectricsupply.com219103851.031In StockSquare D51.03 @ 1
thumbzoomgordonelectricsupply.com9080LBA16310453.591In Stock10SQUARE D53.59 @ 1
Graybar9504210162.721In StockSquare D (Schneider Electric)62.72 @ 1
thumbzoomNewark17B334764.781In StockSQUARE D BY SCHNEIDER ELECTRIC64.78 @ 1
steinerelectric.com9683066.731In StockSquare D?66.73 @ 1
thumbzoomsustainablesupply.comC304515567.841In StockSquare D0.6367.84 @ 1
us.rs-online.com7110414368.0211Square D68.02 @ 1
thumbzoommostelectric.com9080LBA16310469.9812SQUARE D/TELEMECANIQUE69.98 @ 1
thumbzoomcrescentelectric.com12245579.151In StockSquare D by Schneider Electric79.15 @ 1
thumbzoomNational Supply Network6953250594.01In StockSquare D94.0 @ 1
