Square D by Schneider Electric HOM120PCAFIC

B00NOLH0DW

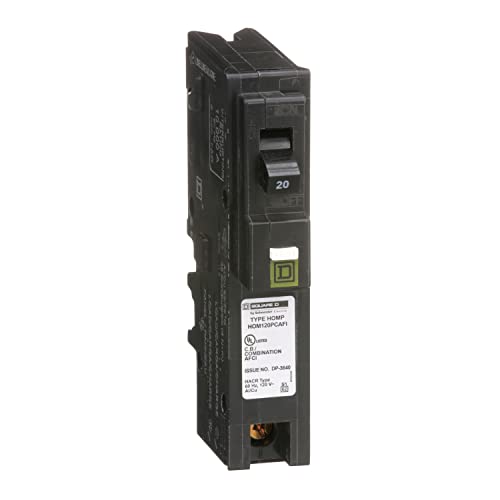

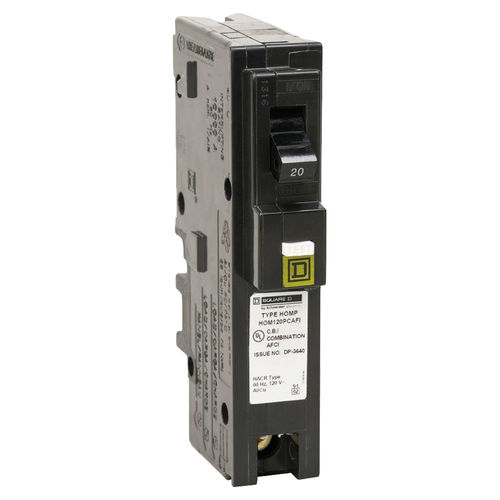

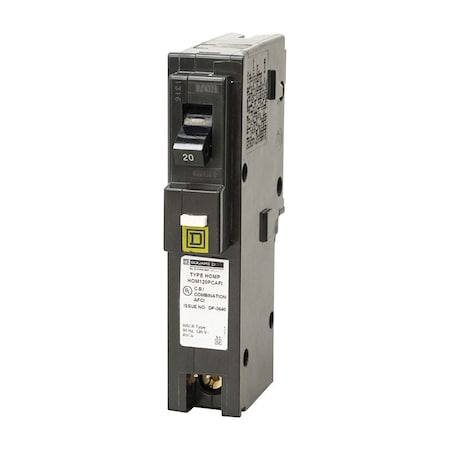

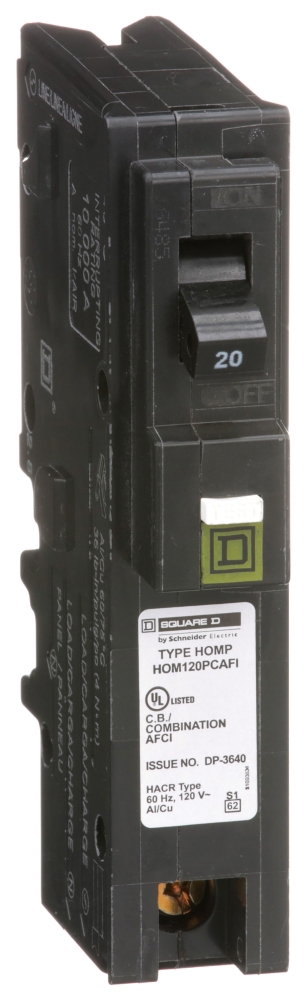

Square D - HOM120PCAFIC Homeline Circuit Breaker, 20-Amp, 120V, 1-Pole CAFCI , Plug-On Neutral

Square D - HOM120PCAFIC Homeline Circuit Breaker, 20-Amp, 120V, 1-Pole CAFCI , Plug-On Neutralzoom

Attributes

Key Value
AC Voltage Rating120V AC
Amperage20A
Amperage Rating20
Amps20 A
ApplicationHACR rated, HACR rated .
BrandSquare D, Square D by S.
Breaker SizeMiniature
Catalog NumberHOM120PCAFIC
Circuit Breaker Mountin.Plug-In
Circuit Breaker TypeCombination Arc-Fault
ConnectionPlug-on neutral;Clamp t.
Country of OriginMexico
Depth2.98 in
FeaturesMercury Free
Frame Size1-Space
Height2, 8, 3.13 in, 3.13
Height UOMInch
Interrupt Rating10 KA
Interruption TypeCAFCI
ItemArc Fault Breaker, Mini.
Item TypeMiniature Circuit-Break.
Item Weight0.70 lbs per EA
Length8, 5, 2.98
Length UOMInch
Made in USANo
ManufacturerSchneider Electric
Max. Wire Size8 AWG (Cu/Al), 10 AWG (.
MFRHOM120PCAFIC
Min. Wire Size14 AWG (Cu/Al), 14 AWG .
Mount TypePlug-In
Number of Poles1, 1-Pole
SKU42972974, 11506420
StandardUL Listed
StandardsUL Listed
Terminal ConnectionClamp Terminal
UL ListedYes
UPC785901976684
Voltage120V
Voltage Rating120 V AC
Warranty DescriptionContractual Warranty: L.
Weight1.0 lb
Width1, 1 in, 2, 5
Width UOMInch
Wire Size#14-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00NOLH0DW30.5142Square D by Schneider Electric30.5 @ 4
Home Depot20484465937.9714Square D37.97 @ 4
AmazonB00NOLH0DW41.9714Square D by Schneider Electric41.97 @ 4
Ace Hardware2170673741.9914Square D41.99 @ 4
pioneergeneralstore.com656280543.4614SQUARE D BY SCHNEIDER ELECTRIC43.46 @ 4
thumbzoomMaxedbuyHOM120PCAFIC55.9914Square D by Schneider Electric55.99 @ 4
thumbzoomzaynesolutions.com656280560.14120SQUARE D60.14 @ 4
Life and Home4297297464.614Square D64.6 @ 4
thumbzoomPlumbersStock59154564.8914Square D0.664.89 @ 4
thumbzoomparisfarmersunion.com656280564.9914SQUARE D64.99 @ 4
JugenheimerJI50184672.9914Square D Co.0.772.99 @ 4
thumbzoomhardwareandmoreee.com19224173.47111SQUARE D BY SCHNEIDER ELECTRIC73.47 @ 4
thumbzoomZoroG945599873.751426Square D73.75 @ 4
thumbzoomHardware and ToolsEFEA-735074.3914Square D74.39 @ 4
Toolbox Supply1150642074.5114Square D74.51 @ 4
thumbzoomhatchethardware.com4297297474.9914Square D1.074.99 @ 4
thumbzoomcrescentelectric.com1129621199.3414Square D by Schneider Electric199.34 @ 4
thumbzoomgordonelectricsupply.comHOM120PCAFIC508.771410SQUARE D508.77 @ 4
