CAI - SQUARE D 8501XO80V02

B07JVGG4R9

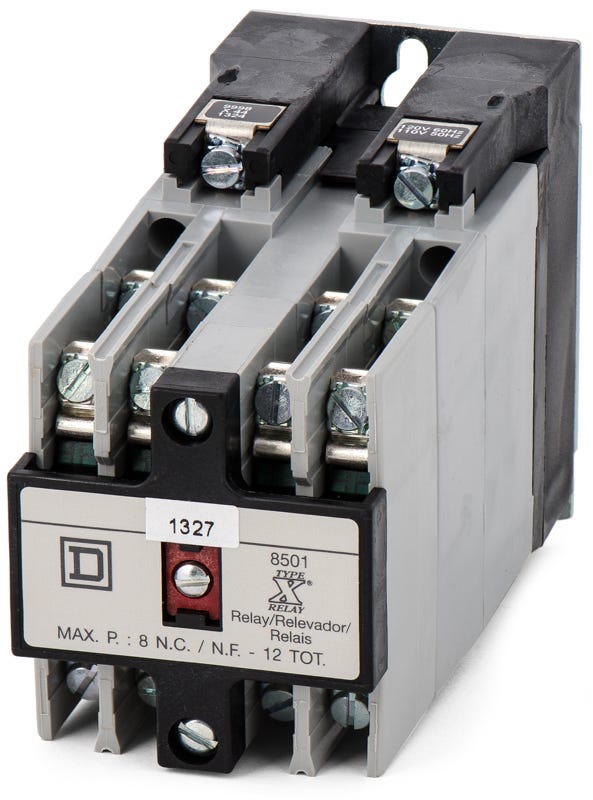

Square D NEMA Style Control Relay, 120VAC, 10A @ 120/240/480/600V, 5A @ 125/250V, 18 Pins

Square D NEMA Style Control Relay, 120VAC, 10A @ 120/240/480/600V, 5A @ 125/250V, 18 Pinszoom

Attributes

Key Value
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
AC Contact Rating - Rel.10 A @ 120/240/480/600V.
Accessory GroupC
Ambient Air Temperature.-40-160 ?F
ApprovalsCSA, UL
Awg GaugeAWG 18...AWG 12 copper
AWG RangeAWG 18...AWG 12 copper
Body Depth - Relay5.16 in
Body Height - Relay3.5 in
Body Width - Relay2.23 in
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8501XO80V02
China Rohs RegulationX
Circularity ProfileENVEOLI1310013
Coil Voltage110 V AC 50 Hz || 120 V.
Coil Volts120V AC
ConditionNew
ConnectionScrew clamp terminals;A.
Contact Configuration8 NO 8 standard contact.
Contact Current Rating10 A
Contact Form8NO
Contact Form - Relay(8) SPST-NO
Contact MaterialSilver Cadmium Oxide
Contact Rating10 A AC-5 A DC
Contact Voltage Rating300
Contacts Type And Compo.8 NO 8 standard contact.
Control Circuit Voltage.operational 0.85...1.1 .
Country of Origin00 - Unknown, Mexico
Current Rating10 A
Current Stock13
DC Contact Rating - Rel.5A @ 125/250V, 5 A @ 12.
Depth5.16 in., 5.16 in
ECCNEAR99
Electrical Connectionscrew clamp terminals
Environmental DisclosureENVPEP1310013EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Control Relays
FeaturesContact Conversion with.
Gross Weight2.47 lbs
GTIN00785901536819, 7859015.
Gtin785901536819
Height3.5 in, 3.5 in.
Hold-In Power Consumpti.23-23 VA 60 Hz || 25-25.
Hz50/60
Hz - Electrical50 Hz, 60 Hz
Inrush Power In Va148-148 VA 60 Hz || 143.
International ShippingNo
ItemNEMA Control Relay
Item - RelayNEMA Style Control Relay
Item Number8501XO80V02
Item TypeControl;Relay
Line Rated Current10 A AC || 5 A DC
Low Power ConsumptionNo
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number537495
Mercury FreeYes
MountingPanel
Mounting - RelaySurface
Mounting SupportPanel
Mpn8501XO80V02
Net Weight0 lbs
Nominal Coil Voltage120 VAC
Number of Pins - Relay18
Operating Temperature-40-160 A Degrees F
Operating Time15 ms - pick-up || 16 m.
Overall Height - Relay3.5 in
Power Consumption - Rel.23.0 VA
Primary TypePower Relays
Product CertificationsCSA LR60905 class 3211 .
Product Or Component Ty.relay
Range Of Product8501X
Reach RegulationReference contains Subs.
Relay Typecontrol
Response TimeDrop Out: 16 msec, Pick.
Rohs Exemption Informat.Yes
Series8501, 8501 Series
Size2.23 IN,3.5 IN,5.16 IN
SKUZO-G1160056
Special Featuresscrew clamp terminals
StandardCSA LR60905 CLASS 3211 .
StandardsCE, CSA, UL
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
TerminationScrew
Thermal Current (A)10 A
Tightening Torquecontrol circuit 1.02-1..
Time Cycle15 ms - pick-up || 16 m.
Torquecontrol circuit 1.02-1..
Typecontrol
UNSPSC39122331
Upc785901536819
UPC785901536819
UPC Code785901536819
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width2.23 mm, 2.23 in
