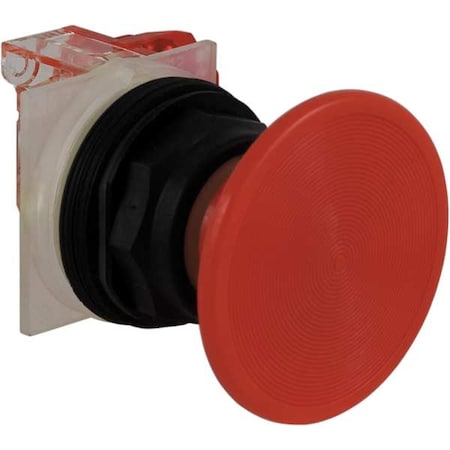

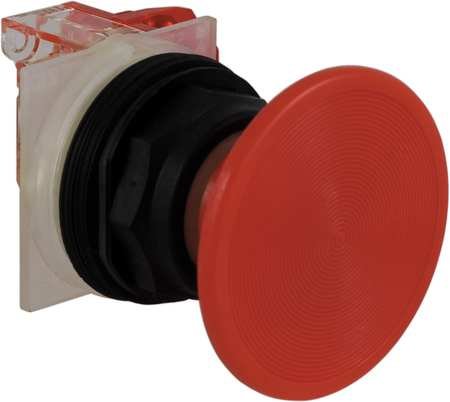

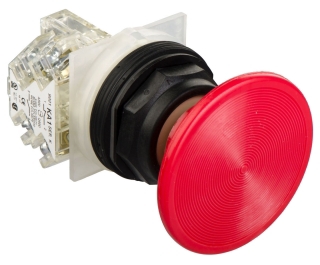

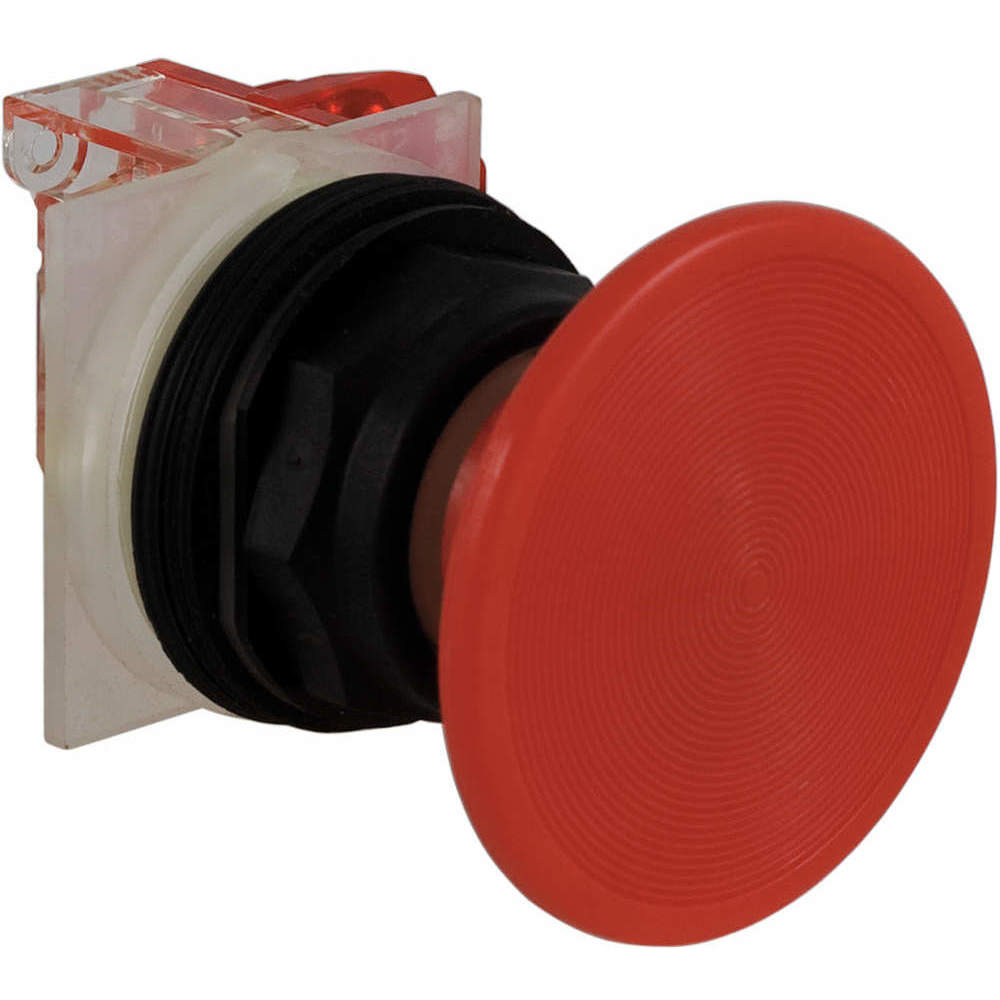

Schneider Electric 9001SKR25RH6

Non-Illuminated Push Button, Plastic, Red

Non-Illuminated Push Button, Plastic, Redzoom

Attributes

Key Value
ActionMomentary Push, standard
ActuatorRed mushroom ? 57 mm; s.
Actuator ColorRed
Actuator TypeMushroom 57 mm, Round, .
Amperage Rating10
Basic MaterialPlastic
BezelCorrosion Resistant The.
Bezel MaterialPlastic
Body Stylestandard
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.Red
Catalog Number9001SKR25RH6
CategorySwitches
China Rohs RegulationX
CircuitSPST-NC
Circularity ProfileN/A
ColorRed
Color - Actuator/CapRed
ConnectionScrew Clamp
Contact Configuration1 NC
Contact Form1 NC, 1NC
Contact Operationstandard
Contact Rating10A @ 600V AC, AC15 - D.
ContactsSilver Alloy
Contacts Type And Compo.1 NC
Country of OriginMexico
Current Rating10 A
Current Rating (Amps)-
DescriptionPUSHBUTTON 600VAC 10AMP.
Detailed DescriptionPushbutton Switch SPST-.
Device Presentationcomplete product
Device Short Name9001SK
Digi-Key Part Number4008-9001SKR25RH6-ND
Electrical Life-
EnclosureNEMA 1/2/3/3R/4/4X/6/12.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureEnvPEP120817EN
Eu Rohs DirectivePro-active compliance (.
FeaturesFinger-Safe Terminals, -
Head MaterialPlastic
Head TypeRound
Illumination Type, Color-
Illumination Voltage (N.-
Ingress ProtectionIP66 - Dust Tight, Wate.
Ip Degree Of ProtectionIP66
IP Rating66
ItemNon-Illuminated Push Bu.
Item Typepush-button
LegendNo legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9001SKR25RH6
Manufacturer Standard L.1 Weeks
MaterialPlastic
Mechanical Durability5000000 cycles
Mechanical Life5,000,000 Cycles
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount, Front, Pan.
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1/2/3/3R/4/4X/6/12.
NEMA Rating1, 12, 13, 2, 3, 3R, 4,.
Number of Operators1
Operating Temperature-
OperationMomentary
Operator Additional Inf.screw-on plastic with s.
Operator Profilered mushroom ? 57 mm, m.
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Product Or Component Ty.push-button
Product StatusActive
Product TypeNon-Illuminated Push Bu.
Range Of ProductHarmony 9001SK
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Series9001SKR Series, Harmony.
Size30 mm, 1.18
Special FeaturesSCREW-IN WITH SET SCREW.
StandardEN/IEC 60947-5-4-EN/IEC.
StandardsCE, CSA, UL, EN/IEC 609.
Sub Brand9001SK
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-Off
Terminal ConnectionPressure Plate
Terminal TypeScrew Clamp
Termination StyleScrew Terminal
Toxic Heavy Metal FreeYes
TypePush Button, standard
Type Of Operatorspring return
Type of Operator57mm Mushroom Head
UPC785901042556
UPC Code785901042556
Voltage Rating600V, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
