Schneider Electric 9001SKT35LRR9

B00CONK0HY

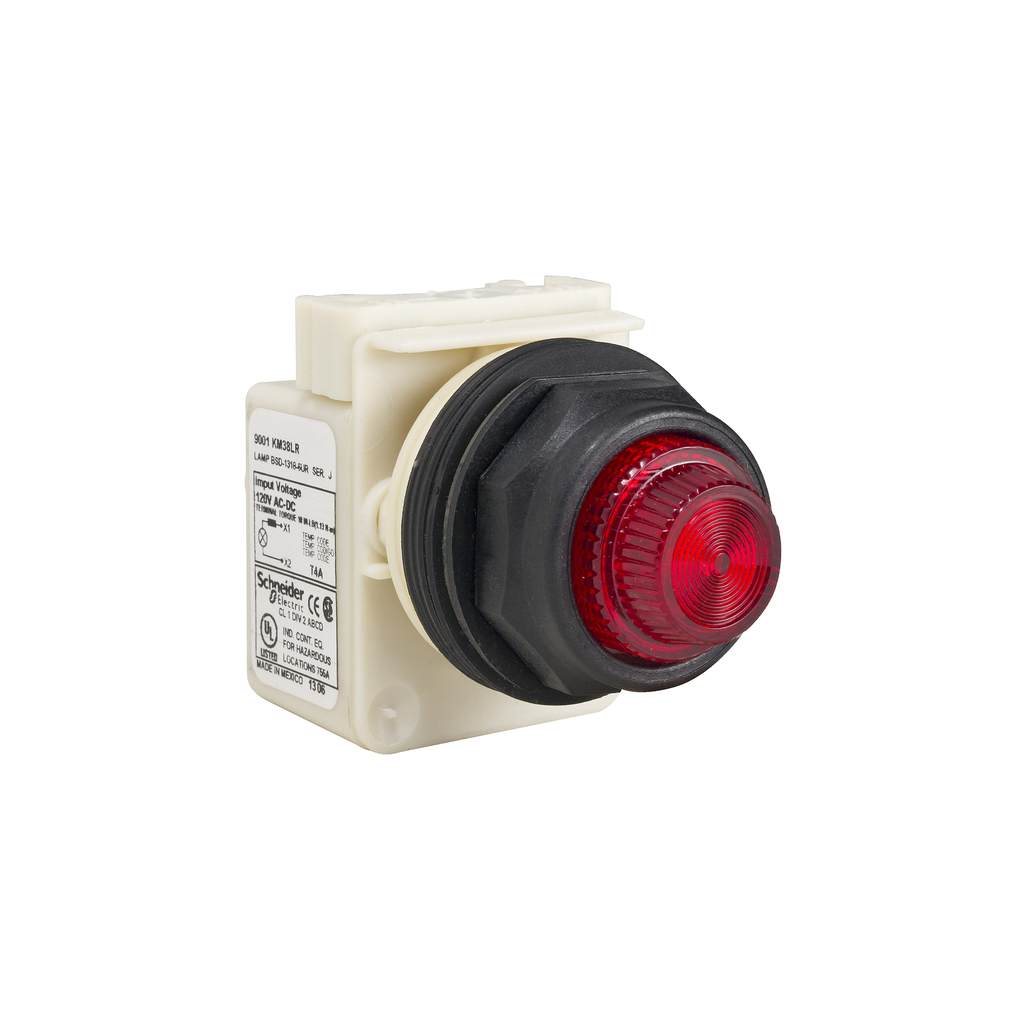

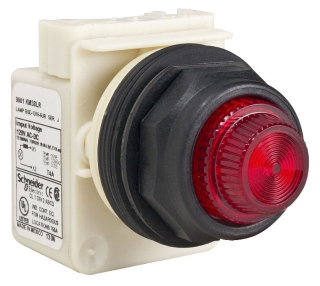

SCHNEIDER ELECTRIC 9001SKT35LRR9 Pilot Light 28-Volt 30-Mm Sk Options Electrical Box

SCHNEIDER ELECTRIC 9001SKT35LRR9 Pilot Light 28-Volt 30-Mm Sk Options Electrical Boxzoom

Attributes

Key Value
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 2)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV EN/IEC 60947-1
[Us] Rated Supply Volta.24...28 V AC/DC
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Application9001SK
Average Life100000, 100000 hr
Base TypeBA9s
Bezel MaterialPlastic
Bezel/HousingBlack Plastic
BrandSquare D by Schneider E.
Bulb BaseBA 9s
Cad Overall Depth42 mm
Cad Overall Height70 mm
Cad Overall Width54 mm
California Proposition .Nickel compounds, which.
Cap/Operator Or Lens Co.Red
Catalog Number9001SKT35LRR9
CategoryOptoelectronics
China Rohs RegulationX
Circularity ProfileENVEOLI121109EN
ColorRed
Color FamilyRed
ConnectionScrew Clamp Terminals, .
Connection TypeScrew Clamp Terminals, .
Connections - TerminalsScrew Clamp Terminals, .
Contact Configuration1 C/O
Contact Operation1 C/O
Country of OriginMX - Mexico, Mexico
Depth42 mm
Device Short Name9001SK
Diameter30 mm
ECCNEAR99
Electrical Shock Protec.class II IEC 61140
Enclosure TypeNEMA 1/2/3/3R/4/4X/12/1.
Environmental ConditionsNEMA 1-NEMA 12-NEMA 13-.
Environmental DisclosureENVPEP121113EN
Eu Rohs DirectivePro-active compliance (.
FinishPlastic
Height70 mm
IEC RatingIP66 IEC 60529
Ip Degree Of ProtectionIP66 IEC 60529
Item TypePush-to-test pilot ligh.
Lamp TypeLED
Lens ColorRed
Lens MaterialPlastic
Lens TypeDomed, domed plastic
Light Block Supplydirect 24...28 V AC/DC
Light SourceRed LED
Made in USANo
ManufacturerSchneider Electric
MaterialPlastic
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting typePanel
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Net Weight0.181 kg
Operating Modepush-to-test
Operating Positionany position
Operating Temperature-25-70 A Degrees C
Operator ShapeRound
PackageBox
Product CertificationsNEMA || UL 508
Product Or Component Ty.push-to-test pilot light
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony 9001SK
Rated Voltage24...28 V AC/DC
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Series9001SK, *, Harmony 9001.
ShapeDomed plastic;Round
Shape Of Screw Headcross slotted
Shape Of Signaling Unit.Round
Shock Resistance50 gn IEC 60068-2-27
Short-Circuit Protection10 A cartridge fuse EN/.
Size1.18, 30, 30 mm
Special FeaturesIP66 CONFORMING TO IEC .
Standard50 GN IEC 60068-2-27,7 .
StandardsUL 508 || JIS C 852 || .
StyleStyle 9/Push-To-Test
Sub Brand9001SK
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torque0.8-0.8 N.m EN/IEC 6094.
Toxic Heavy Metal FreeYes
TypeType SK Corrosion-Resis.
UNSPSC39121534
UPC785901895640
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Voltage Rating24...28 V;24...28 V AC/.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.28, 0.28 VA
WeeeThe product must be dis.
Width54 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key17154449168.31In Stock12Schneider Electric168.3 @ 1
thumbzoomgordonelectricsupply.com9001SKT35LRR9182.091In Stock10SQUARE D182.09 @ 1
thumbzoommostelectric.com9001SKT35LRR9195.91In StockSQUARE D/TELEMECANIQUE195.9 @ 1
us.rs-online.com72305403196.811In StockSquare D196.81 @ 1
Graybar25212142197.121In StockSquare D (Schneider Electric)197.12 @ 1
thumbzoomstandardelectricsupply.com2289158206.051In StockSquare D (Schneider Electric)206.05 @ 1
thumbzoommayerelectric.comSQD9001SKT35LRR9211.551In StockSQUARE D0.3982211.55 @ 1
Newark09P8307217.931In StockSQUARE D BY SCHNEIDER ELECTRIC217.93 @ 1
thumbzoomcrescentelectric.com477487340.391In StockSquare D by Schneider Electric340.39 @ 1
