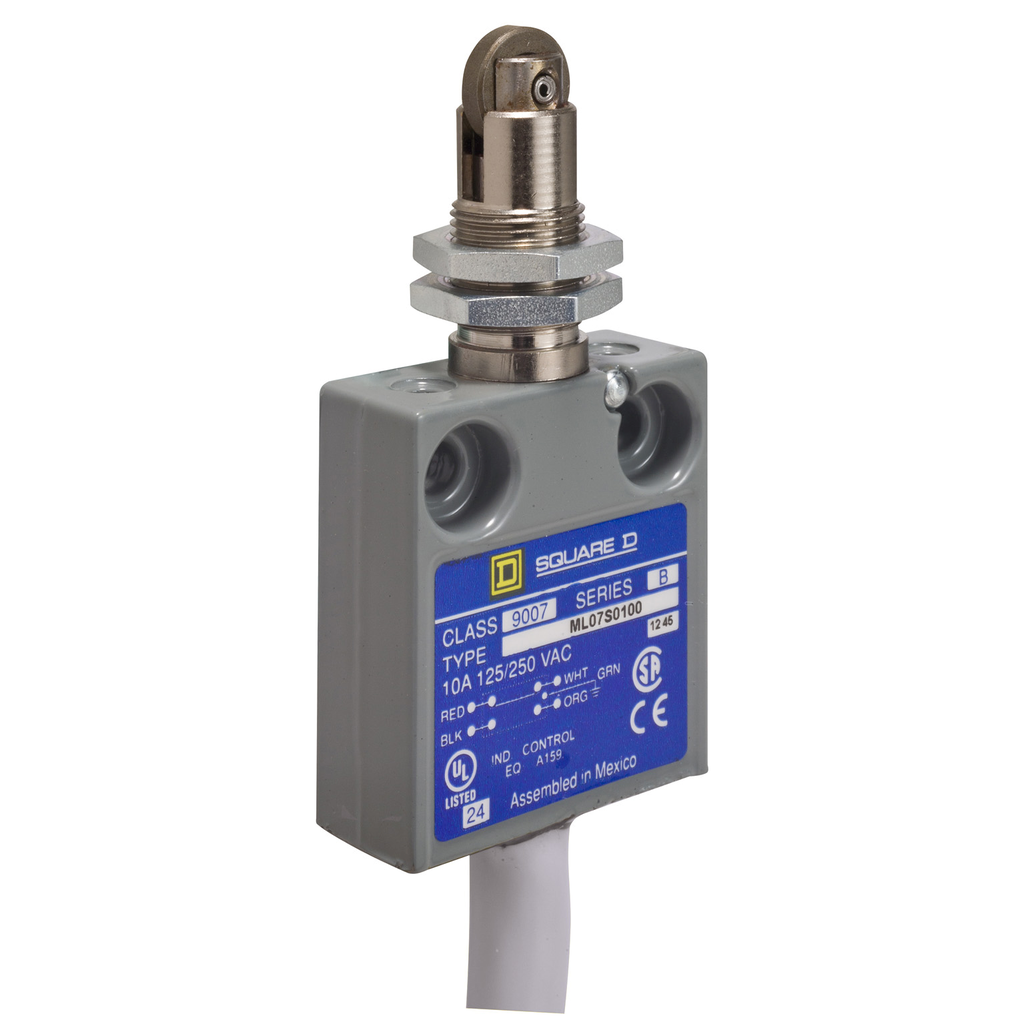

SquareD 9007MS07S0310 LIMIT SWITCH 240VAC 10AMP MS +OPTIONS SWITCH 240VAC 10AMP MS +OPTIONS - MROSupply.com
Weight:
1.2
Weight:
1.2 LB
Preferred Price:
241.09
Price:
241.09
Min Simple Price:
136.21
Absolute Min Price:
193.41
Min Price:
193.41
Dimensions:
[12.0, 12.0, 12.0]
qty:
21
simpleSku:
zUzMTM:::9007MS07S0310
sku:
zUzMTM::TE:9007MS07S0310@y0
condition:
11
seller:
Sager Electronics
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Ie] Rated Operational Current | 6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14 |
| Action | Lateral/Snap, Snap/Lateral |
| Actuator | Parallel Roller Plunger Spring Return |
| Ambient Air Temperature For Operation, Ambient Air Temperature For Storage | -40-220 ?F |
| Amperage Rating | 3/5/6/10, 3/5/6/10 A |
| Body Material | cast zinc |
| Body Type | fixed |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Connection type | Pre-Wired/9 ft 18 AWG SJTO Gray Cable |
| Contact Configuration | 1NC-1NO Form C SPDT |
| Contact Form | Form C |
| Contact Operation | snap action |
| Contacts Material | silver contacts |
| Contacts Type And Composition | NC-NO |
| Depth | 0.62 in |
| Device Short Name, Series | 9007MS/ML |
| Electrical Connection | pre-wired cable bottom |
| Electrical Durability | 100000 cycles |
| Enclosure Type | NEMA 1/2/4/6/6P/12/13/IP67 |
| Environmental Disclosure | ENVPEP111160EN |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Fixing Mode | by the head |
| Head Type | plunger head |
| Height | 1.75-1.75 in |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Marking, Product Certifications | CSA || UL || CE |
| Material | metal |
| Maximum Force For Tripping | 80 ozf |
| Mechanical Durability | 10000000 cycles |
| Mounting type | Fixed/Body |
| Movement Of Operating Head | linear |
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 |
| Net Weight | 1.2 lb(US) |
| Number of Poles, Number Of Poles, Sale Per Indivisible Quantity | 1 |
| Operating Cycles | 100000, 100000 Cycles |
| Operating Temperature | -40 to 220, -40 to 220 deg F |
| Positive Opening | without |
| Product Or Component Type | limit switch |
| Protective Treatment | epoxy powder coat |
| Range Of Product | 9007 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sensor Design | miniature |
| Series Name | miniature potted |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Size | 1.75 in H x 1.56 in W x 0.62 in D |
| Standards | LR 25490 Class 32 11 03 || E78403 |
| Switch Actuation | by 30? cam |
| Switch Function | SPDT |
| Terminals Description Iso N?1 | (green-yellow)gnd || (black)com || (red)NC || (white)NO |
| Type | Fixed Miniature Potted |
| Type Of Approach | lateral approach, 2 directions |
| Type Of Cable | SJTO AWG 18), 9 ft, Gray |
| Type Of Operator | spring return parallel roller plunger steel bushing mounted |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60068-2-6 |
| Voltage Rating | 120/240 VAC, 28 VDC |
| Warranty | 18 months |
| Width | 1.56 in |
| Wire Insulation Material | PVC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Sager Electronics | 9007MS07S0310 | 136.21 | 136.21 | 1 | In Stock | Schneider Electric | 136.21 @ Qty: 1+ | |||
 | gordonelectricsupply.com | 9007MS07S0310 | 140.09 | 140.09 | 1 | In Stock | 10 | SQUARE D | 140.09 @ Qty: 1+ | |
| steinerelectric.com | 203676 | 175.84 | 175.84 | 1 | In Stock | Square D? | 175.84 @ Qty: 1+ | |||
| Graybar | 22087839 | 178.2592 | 178.2592 | 1 | In Stock | Square D (Schneider Electric) | 178.2592 @ Qty: 1+ | |||
 | mayerelectric.com | SQD9007MS07S0310 | 204.02 | 204.02 | 1 | In Stock | SQUARE D | 1.2 | 204.02 @ Qty: 1+ | |
 | standardelectricsupply.com | 2279820 | 260.24 | 260.24 | 1 | In Stock | Square D (Schneider Electric) | 260.24 @ Qty: 1+ |
