Schneider Electric 9013FHG42J55M1X

B008KNQV52

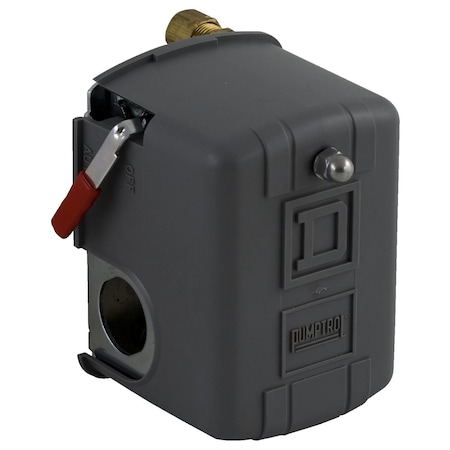

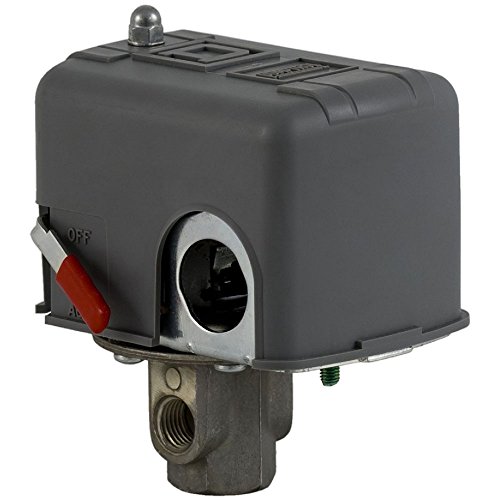

Square D by Schneider Electric 9013FHG42J55M1X Air-Compressor Pressure Switch, 150 psi Set Off, 40 psi Fixed Differential, 1/4" NPSF Internal, 2-Way Release Valve, Auto/Off Cut-Out Lever

Square D by Schneider Electric 9013FHG42J55M1X Air-Compressor Pressure Switch, 150 psi Set Off, 40 psi Fixed Differential, 1/4" NPSF Internal, 2-Way Release Valve, Auto/Off Cut-Out Leverzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Actuation TypeDiaphragm
Adjustable Range On Ris.100-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Fixed Diffe.40 psi
Burst Pressure220 psi
Cable Entry Number2 0.88 in cable entries.
California Proposition .Lead and lead compounds.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F)
Depth3.76 in
Destruction Pressure220 psi
DifferentialFixed Differential Scale
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectiveNot applicable, out of .
Factory Modification2-way pressure release .
Fluid Connection Type0.25 inch NPSF internal.
Height3.71 in
HP @ 1 Phase - 230V2
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Local Displaywithout
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Motor Power Kw1.5 kW 2 hp)230 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA RatingNEMA 1
Net Weight1 lb(US)
Off Set Point150 psi
Operating Positionany position
Pressure ActuatorDiaphragm
Pressure Sensor Name9013FH
Pressure Sensor Size200 psi
Pressure Sensor TypeElectromechanical Press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor
Pressure Switch Differe.40 psi
Pressure Switch Electri.DPST
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range100 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Product CertificationsUL listed file E12158 |.
Product Specific Applic.control small electrica.
Promotion RestrictionNot eligible for promot.
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Scale Typefixed differential
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
StandardsUL 508; CE; UL listed f.
Temp. Range-33 to 257 ?F
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
TypeElectromechanical Press.
Type Of Packingindividual
Value Of Settingoff at 150 psi
Warranty18 months
Width3.1 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9013FHG42J55M1X35.491In Stock10SQUARE D35.49 @ 1
thumbzoomZoroG056288041.991In StockSquare D1.041.99 @ 1
thumbzoomsustainablesupply.comC304532544.921In StockSquare D1.044.92 @ 1
thumbzoommayerelectric.comSQD9013FHG42J55M1X50.61In StockSQUARE D1.050.6 @ 1
